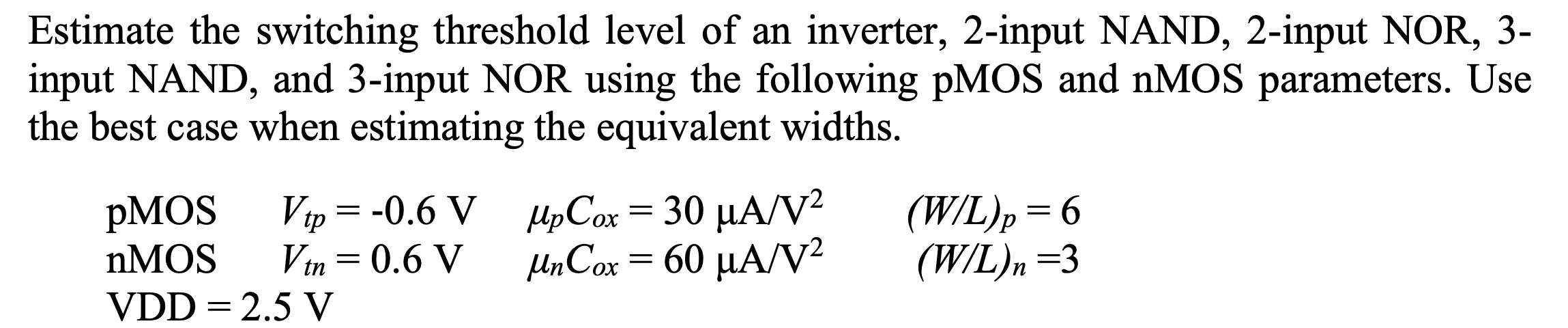

Estimate the switching threshold level of an inverter, 2-input NAND, 2-input NOR, 3-input NAND, and 3-input NOR using the following pMOS and nMOS parameters. Use the best case when estimating the equivalent widths. pMOS Vtp = -0.6 V upCox = 30 uA/V^2 (W/L)p = 6 nMOS Vtn = 0.6 V unCox = 60 uA/V^2 (W/L)n = 3 VDD = 2.5 V

Estimate the switching threshold level of an inverter, 2-input NAND, 2-input NOR, 3-input NAND, and 3-input NOR using the following pMOS and nMOS parameters. Use the best case when estimating the equivalent widths. pMOS Vtp = -0.6 V upCox = 30 uA/V^2 (W/L)p = 6 nMOS Vtn = 0.6 V unCox = 60 uA/V^2 (W/L)n = 3 VDD = 2.5 V

Image text
Estimate the switching threshold level of an inverter, 2-input NAND, 2-input NOR, 3-input NAND, and 3-input NOR using the following pMOS and nMOS parameters. Use the best case when estimating the equivalent widths. pMOS Vtp = -0.6 V upCox = 30 uA/V^2 (W/L)p = 6 nMOS Vtn = 0.6 V unCox = 60 uA/V^2 (W/L)n = 3 VDD = 2.5 V

Detailed Answer

3 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up
  • Student Reviews:
  • (3)

Similar/Related Questions

(a) Determine the switching threshold (Vth) of Inverter, 2-input NAND (NAND2), 3input NAND (NAND3), 2-input NOR (NOR2), and 3-input NOR (NOR3). Use the transistor parameters given above. (10 Marks) (b) Now, we want to make Vth of the above gates identical to Vth of Inverter. Determine the new transistor sizes of the above logic gates. (10 Marks) (c) Figure 1 is designed using the above device parameters. Determine VIH, VIL, Vth, and the noise margin of the 2-input NOR gate and the inverter using the equivalent device sizes of the best case. Assume VOH is 90% of VDD and VOL is 10% of VDD. (10 Marks) (d) Explain how to make the noise margins of the above NOR2 balanced for logic ' 0 ' and ' 1 '. (10 Marks) The parameters of the pMOS and nMOS transistors are given below: pMOS Vtp = -0.6 V upCox = 200 uA/V2 (W/L)p = 5 nMOS Vtn = 0.6 V unCox = 500 uA/V2 (W/L)n = 2 VDD = 1.5 V

Solution
7 0

Determine the rise and fall time of Inverter, designed using the following transistor parameters. pMOS Vtp = -0.6 V upCox = 200 uA/V2 (W/L)p = 5 nMOS Vtn = 0.6 V unCox = 500 uA/V2 (W/L)n = 2 VDD = 1.5 V Use the following two cases when calculating average current and determine the difference in the rise and fall time between the following two cases. Case#1: Use 90%, 50%, and 10% Case#2: Use 90% and 10%
Solution
1 0

Consider a CMOS inverter with the following parameters: nMOS VT0,n = 0.6 V unCox = 60 uA/V2 (W/L)n = 8 pMOS VT0,P = -0.7 V upCox = 25 uA/V2 (W/L)p = 12 Calculate the noise margins and the switching threshold (Vth) of this circuit. The power supply voltage is VDD = 3.3 V.
