EX 4 Power Consumption Compute the switching power consumed by the multiplexer of Figure 6.18, assuming that all significant capacitances have been lumped into the three capacitors shown in the figure, where C = 0.3 pF. Also, assume that VDD = 2.5 V and independent, identically-distributed uniform white noise inputs, with events occurring at a frequency of 100 MHz Perform this calculation for the following: Figure 6.18 Two-input multiplexer

EX 4 Power Consumption Compute the switching power consumed by the multiplexer of Figure 6.18, assuming that all significant capacitances have been lumped into the three capacitors shown in the figure, where C = 0.3 pF. Also, assume that VDD = 2.5 V and independent, identically-distributed uniform white noise inputs, with events occurring at a frequency of 100 MHz Perform this calculation for the following: Figure 6.18 Two-input multiplexer

Image text
EX 4 Power Consumption
  1. Compute the switching power consumed by the multiplexer of Figure 6.18, assuming that all significant capacitances have been lumped into the three capacitors shown in the figure, where C = 0.3 pF . Also, assume that V D D = 2.5 V and independent, identicallydistributed uniform white noise inputs, with events occurring at a frequency of 100 MHz Perform this calculation for the following:

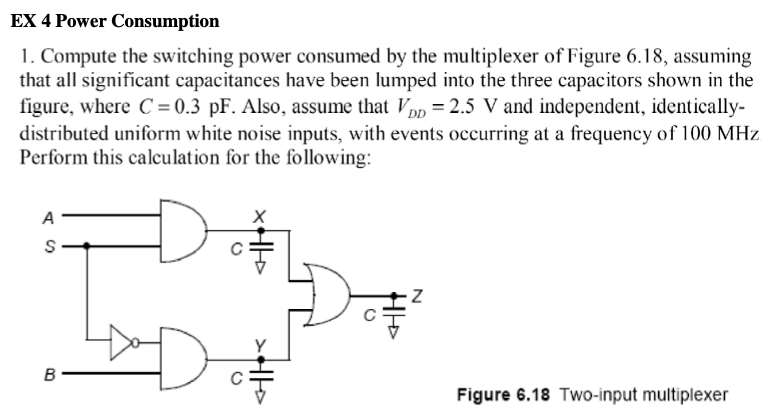

Figure 6.18 Two-input multiplexer
