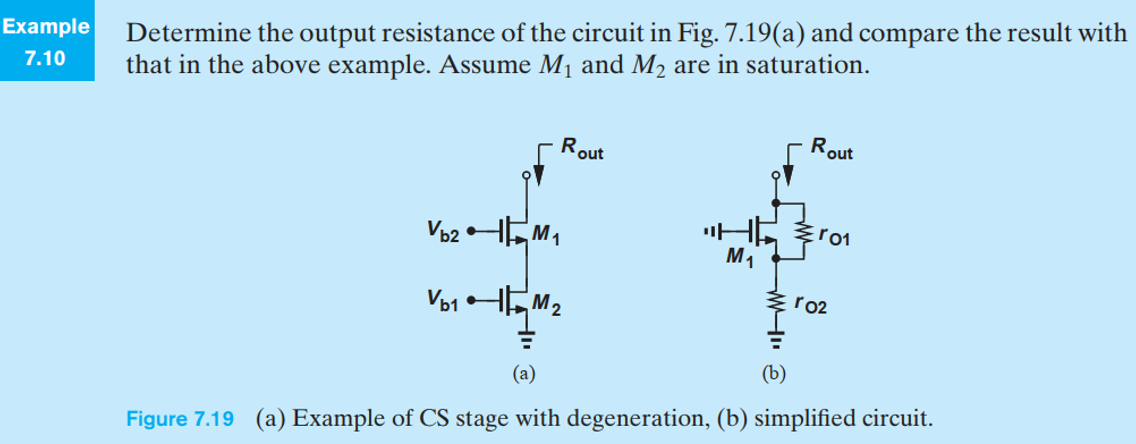

Example Determine the output resistance of the circuit in Fig. 7.19(a) and compare the result with 7.10 that in the above example. Assume M1 and M2 are in saturation. (a) (b) Figure 7.19 (a) Example of CS stage with degeneration, (b) simplified circuit.

Example Determine the output resistance of the circuit in Fig. 7.19(a) and compare the result with 7.10 that in the above example. Assume M1 and M2 are in saturation. (a) (b) Figure 7.19 (a) Example of CS stage with degeneration, (b) simplified circuit.

Image text
Example Determine the output resistance of the circuit in Fig. 7.19(a) and compare the result with 7.10 that in the above example. Assume M 1 and M 2 are in saturation. (a) (b) Figure 7.19 (a) Example of CS stage with degeneration, (b) simplified circuit.

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

Consider MOSFET-based current source circuits shown below. Assume that the n-type MOSFET transistors follow the long-channel model with μnCox = 100 μA/V2 and Vth,n = 0.5 V. All the transistors have a fixed channel length L = 0.25 μm. The bias voltage VB1 is at 0.8 V. Assume that all transistors have no back-bias effect. (1) (2) (a) For a basic current source in Fig. (1), size the NMOS transistor M1's width ( = W1) so that it conducts a current of 1 mA when it operates in saturation region. You may assume λn = 0. (b) What is the minimum value of Vout for this circuit that keeps M1 in saturation region? (c) For a cascode current source in Fig. (2), assume that the transistor M2 has the same width with M1 you determined from part (a). Determine the value of VB2 that yields the lowest minimum VOUT keeping both M1 and M2 in saturation regions. (d) Now, let's assume that the transistors M1 and M2 have a finite output resistance with λn = 0.1 V−1. Compute the value of the output resistance (Rout) of this cascode current source when M1 and M2 are in the saturation region. (Hint: Calculate the output impedance in a small signal equivalent circuit.)
Solution
0 0

Consider the CMOS common source amplifier circuit in Fig. 4. The transistor parameters are given as VTN = 0.5 V, VTP = −0.5 V, kn′ = 80 μA/V2, kp′ = 40 μA/V2, and λn = λp = 0.015 V −1. Assume that IBias = 0.1 mA and M2, M3 are identical. (a) Determine the small-signal parameters (gm and ro) of each transistor. (Express the transconductance gm in terms of the width-to-length ratio (W/L) without any values). (b) Draw the small-signal equivalent circuit and derive the small-signal voltage gain equation. (c) Find the width-to-length ratio of M1 such that the small-signal voltage gain is Av = −250. (d) Derive and calculate the output resistance Ro. Figure 4. CMOS common source amplifier circuit for the Question 4
Solution
0 0

Determine voltage gain and output resistance in following source-followers. Assume M1 and M2 are in saturation, and use gm1, r01 and gm2, r02 for their small-signal parameters. (a) (b)

Solution
4 0
