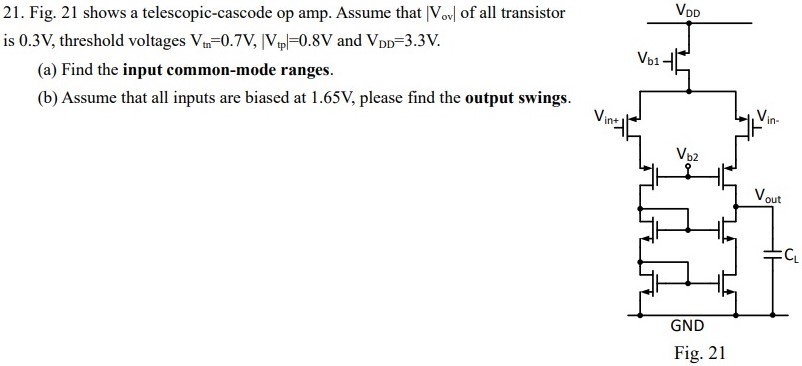

Fig. 21 shows a telescopic-cascode op amp. Assume that |Vov | of all transistor is 0.3 V, threshold voltages Vtm = 0.7 V, |Vtp| = 0.8 V and VDD = 3.3 V. (a) Find the input common-mode ranges. (b) Assume that all inputs are biased at 1.65 V, please find the output swings. Fig. 21

Fig. 21 shows a telescopic-cascode op amp. Assume that |Vov | of all transistor is 0.3 V, threshold voltages Vtm = 0.7 V, |Vtp| = 0.8 V and VDD = 3.3 V. (a) Find the input common-mode ranges. (b) Assume that all inputs are biased at 1.65 V, please find the output swings. Fig. 21

Image text
  1. Fig. 21 shows a telescopic-cascode op amp. Assume that | V ov | of all transistor is 0.3 V , threshold voltages V t m = 0.7 V , | V t p | = 0.8 V and V D D = 3.3 V . (a) Find the input common-mode ranges. (b) Assume that all inputs are biased at 1.65 V , please find the output swings. Fig. 21

Detailed Answer
