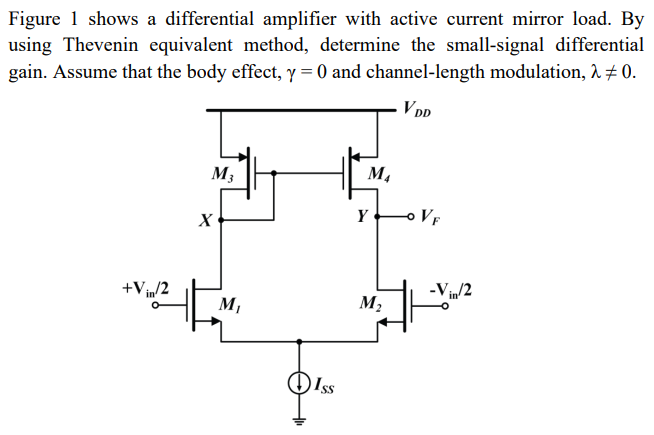

Figure 1 shows a differential amplifier with active current mirror load. By using Thevenin equivalent method, determine the small-signal differential gain. Assume that the body effect, γ = 0 and channel-length modulation, λ ≠ 0.
