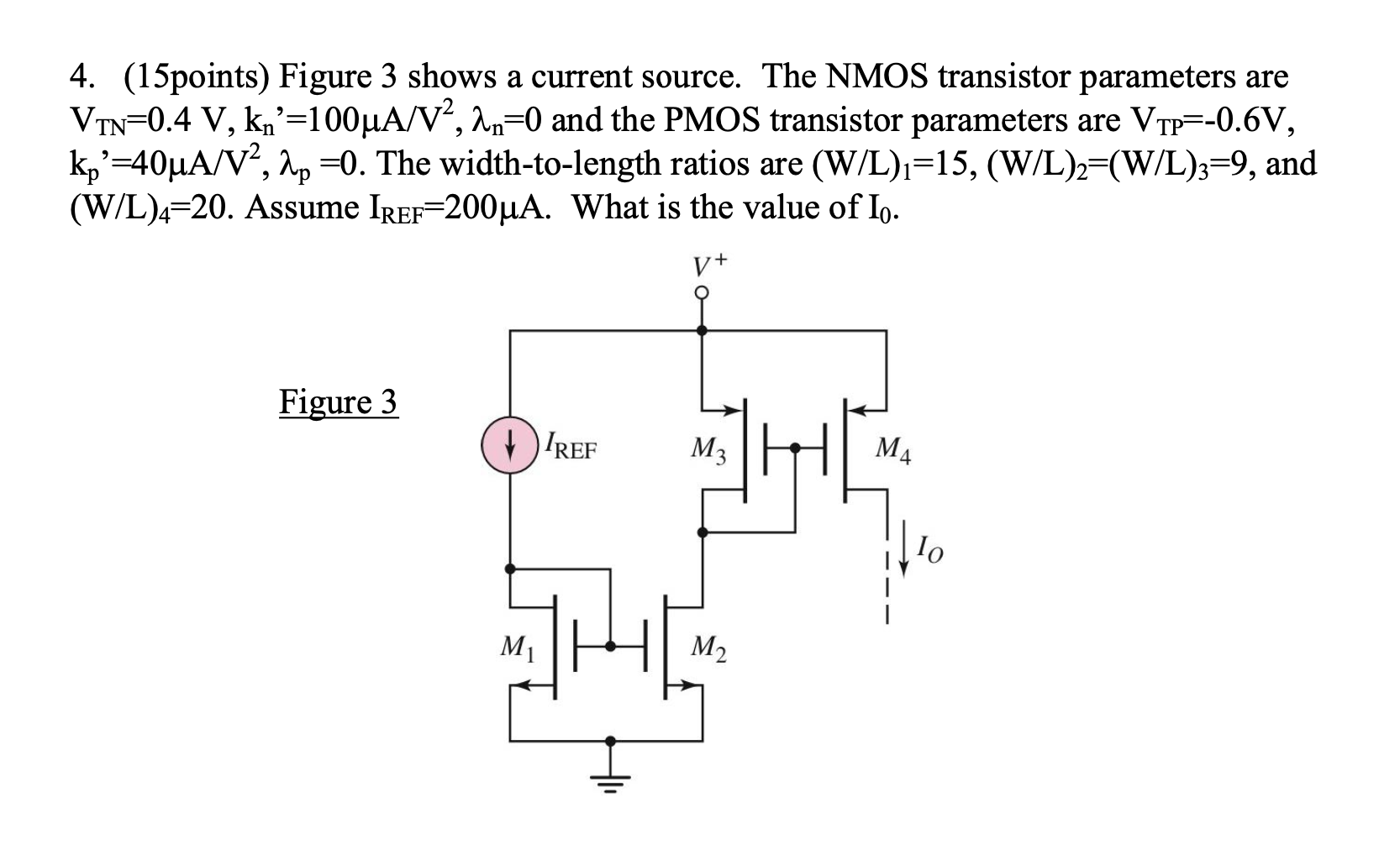

Figure 3 shows a current source. The NMOS transistor parameters are VTN = 0.4 V, kn = 100 uA/V2, lambdan = 0 and the PMOS transistor parameters are VTP = -0.6 V, kp = 40 uA/V2, lambdap = 0. The width-to-length ratios are (W/L)1 = 15, (W/L)2 = (W/L)3 = 9, and (W/L)4 = 20. Assume IREF = 200 uA. What is the value of I0.
Image text
Figure 3 shows a current source. The NMOS transistor parameters are VTN = 0.4 V, kn = 100 uA/V2, lambdan = 0 and the PMOS transistor parameters are VTP = -0.6 V, kp = 40 uA/V2, lambdap = 0. The width-to-length ratios are (W/L)1 = 15, (W/L)2 = (W/L)3 = 9, and (W/L)4 = 20. Assume IREF = 200 uA. What is the value of I0.
