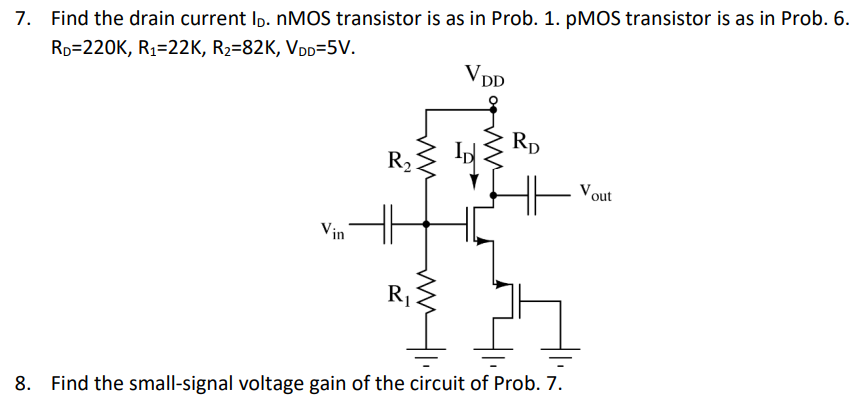

Find the drain current ID. nMOS transistor is as in Prob. 1. pMOS transistor is as in Prob. 6. RD = 220 K, R1 = 22 K, R2 = 82 K, VDD = 5 V. Find the small-signal voltage gain of the circuit of Prob. 7.

Image text

Find the drain current $I_{D} . nMOS$ transistor is as in Prob. 1. pMOS transistor is as in Prob. 6. $R_{D} = 220 K, R_{1} = 22 K, R_{2} = 82 K, V_{D D} = 5 V$ .
Find the small-signal voltage gain of the circuit of Prob. 7 .
