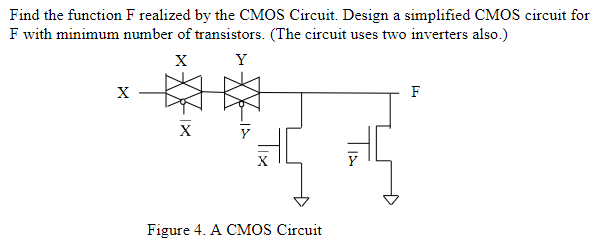

Find the function F realized by the CMOS Circuit. Design a simplified CMOS circuit for F with minimum number of transistors. (The circuit uses two inverters also.)

Find the function F realized by the CMOS Circuit. Design a simplified CMOS circuit for F with minimum number of transistors. (The circuit uses two inverters also.)

Image text
Find the function F realized by the CMOS Circuit. Design a simplified CMOS circuit for F with minimum number of transistors. (The circuit uses two inverters also.)

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

Write the Boolean function that is realized by the circuit above. Then reformulate it in AOI canonical form. Sketch the CMOS circuit that realizes the canonical function with minimum transistors. VDD = 3V, µnCox = 50 µA/V^2, µpCox = 20 µA/V^2, Vtn = 0.5V, Vtp = -0.5V, Lmin = 0.35 µm is given for the circuit in b. The circuit has an equivalent load capacitor of CL = 50 fF. Find the transistor dimensions which provide tpHL = 1ns and tpLH = 1.25ns for worst-case conditions. Calculate the threshold voltage (VTH) of the CMOS circuit for simultaneous switching using the equivalent inverter concept. The same function is realized using pseudo-NMOS logic. Calculate VOL for worst-case conditions when a minimum-dimension PMOS transistor and NMOS transistors with dimensions found in c are used. Comment on your result. Recalculate the NMOS dimensions so that VOL = 0.2V is obtained for worst-case conditions.
Solution
0 0

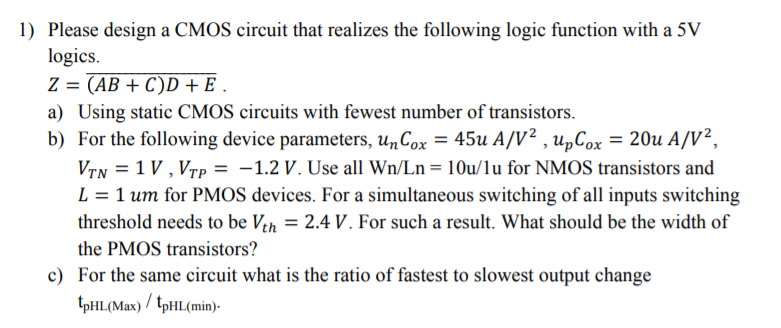

Please design a CMOS circuit that realizes the following logic function with a 5V logics. Z = (AB+C)D+E. a) Using static CMOS circuits with fewest number of transistors. b) For the following device parameters, unCox = 45u A/V2 , upCox = 20u A/V2 VTN = 1 V , VTP = -1.2 V. Use all Wn/Ln = 10u/1u for NMOS transistors and L= 1 um for PMOS devices. For a simultaneous switching of all inputs switching threshold needs to be Vth = 2.4 V. For such a result. What should be the width of the PMOS transistors? c)For the same circuit what is the ratio of fastest to slowest output change tpHL(Max) / tpHL(min).
