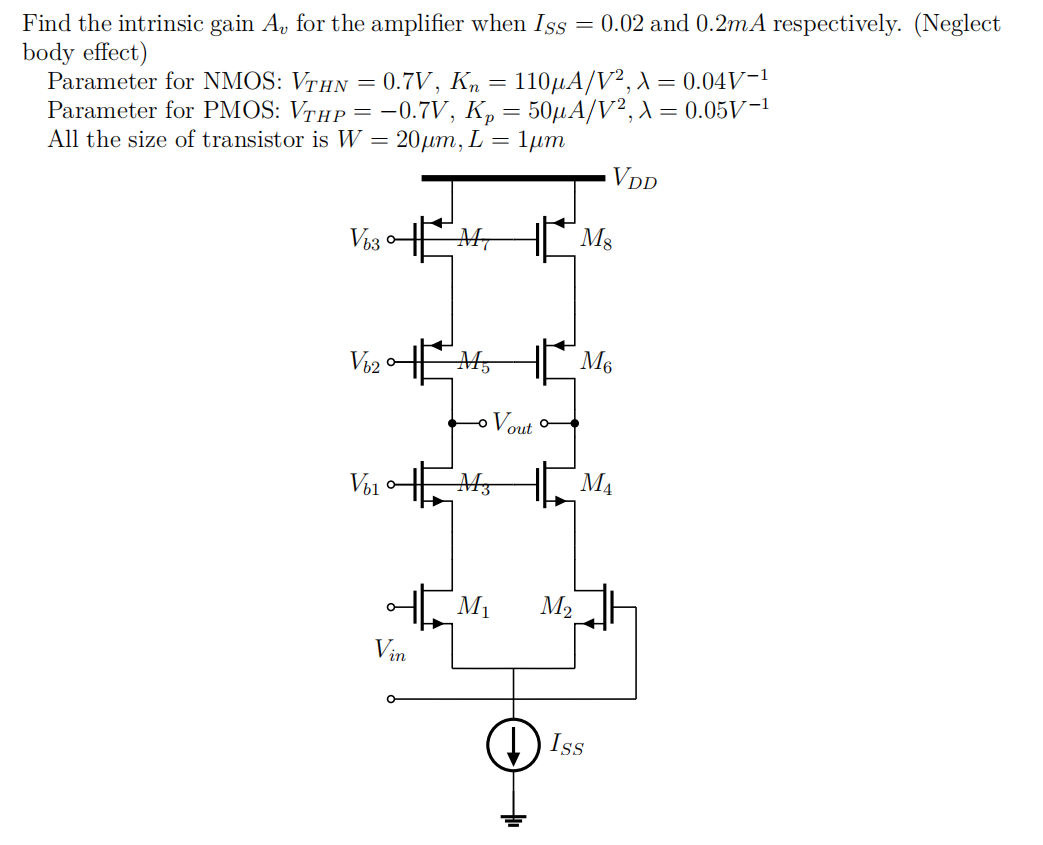

Find the intrinsic gain Av for the amplifier when ISS = 0.02 and 0.2mA respectively. (Neglect body effect) Parameter for NMOS: VTHN = 0.7 V, Kn = 110 μA/V2, λ = 0.04 V-1 Parameter for PMOS: VTHP = -0.7 V, Kp = 50 μA/V2 , λ = 0.05 V-1 All the size of transistor is W = 20 μm, L = 1 μm

Find the intrinsic gain Av for the amplifier when ISS = 0.02 and 0.2mA respectively. (Neglect body effect) Parameter for NMOS: VTHN = 0.7 V, Kn = 110 μA/V2, λ = 0.04 V-1 Parameter for PMOS: VTHP = -0.7 V, Kp = 50 μA/V2 , λ = 0.05 V-1 All the size of transistor is W = 20 μm, L = 1 μm

Image text
Find the intrinsic gain Av for the amplifier when ISS = 0.02 and 0.2mA respectively. (Neglect body effect) Parameter for NMOS: VTHN = 0.7 V, Kn = 110 μA/V2, λ = 0.04 V-1 Parameter for PMOS: VTHP = -0.7 V, Kp = 50 μA/V2 , λ = 0.05 V-1 All the size of transistor is W = 20 μm, L = 1 μm

Detailed Answer
