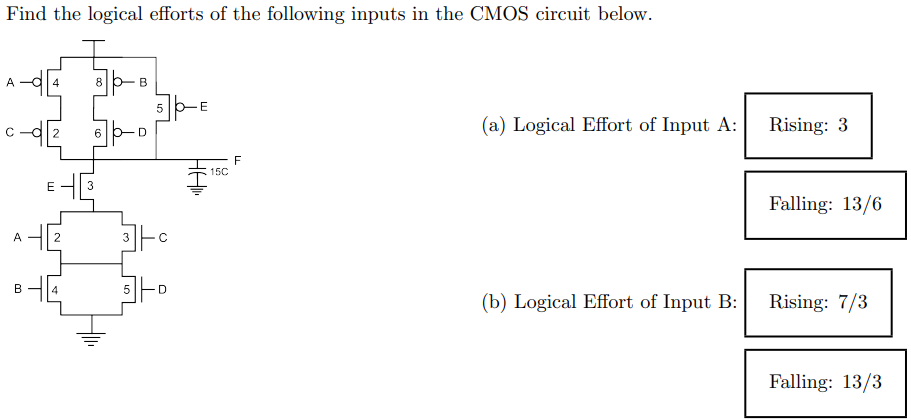

Find the logical efforts of the following inputs in the CMOS circuit below. (a) Logical Effort of Input A: Rising: 3 Falling: 13/6 (b) Logical Effort of Input B: Rising: 7/3 Falling: 13/3

Find the logical efforts of the following inputs in the CMOS circuit below. (a) Logical Effort of Input A: Rising: 3 Falling: 13/6 (b) Logical Effort of Input B: Rising: 7/3 Falling: 13/3

Image text
Find the logical efforts of the following inputs in the CMOS circuit below. (a) Logical Effort of Input A: Rising: 3 Falling: 13 / 6 (b) Logical Effort of Input B: Rising: 7 / 3 Falling: 13 / 3
