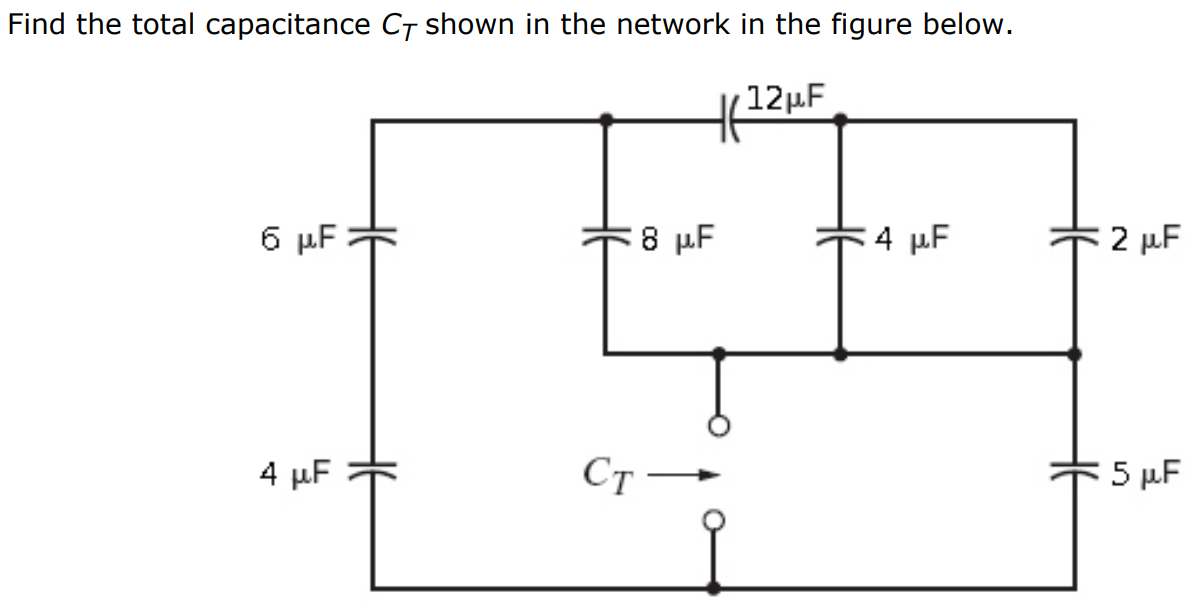

Find the total capacitance CT shown in the network in the figure below. μF

Find the total capacitance CT shown in the network in the figure below. μF

Image text
Find the total capacitance CT shown in the network in the figure below. μF

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

Consider the circuit shown in the figure, with C1 = 7.42 μF and C2 = 8.24 μF. (a) Find the equivalent capacitance (in μF) of the system. μF (b) Find the charge (in μC) on each capacitor. 7.42 μF capacitor μC 6.00 μF capacitor μC 8.24 μF capacitor μC 2.00 μF capacitor μC (c) Find the potential difference (in V) on each capacitor. 7.42 μF capacitor V 6.00 μF capacitor ◻ V 8.24 μF capacitor V 2.00 μF capacitor V (d) Find the total energy (in mJ) stored by the group. mJ
Solution
0 0

Consider the circuit shown in the figure, with C1 = 5.72 μF and C2 = 7.84 μF (a) Find the equivalent capacitance (in μF) of the system. μF (b) Find the charge (in μC) on each capacitor. 5.72 μF capacitor μC 6.00 μF capacitor μC 7.84 μF capacitor μC 2.00 μF capacitor μC (c) Find the potential difference (in V) on each capacitor. 5.72 μF capacitor V 6.00 μF capacitor V 7.84 μF capacitor V 2.00 μF capacitor V (d) Find the total energy (in mJ) stored by the group. mJ
Solution
0 0

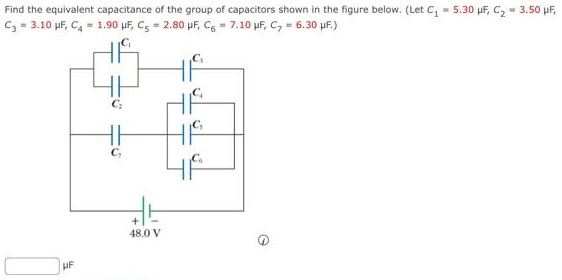

Find the equivalent capacitance of the group of capacitors shown in the figure below. (Let C1 = 5.30 μF, C2 = 3.50 μF C3 = 3.10 μF, C4 = 1.90 μF, C5 = 2.80 μF, C6 = 7.10 μF, C7 = 6.30 μF.) μF
