Find VDSQ, VDSmin and VDSmax for the circuit when the characteristic of the nMOS is given as in the curve. ( important note: please do not care the black points and the dashed lines on the curve).

Find VDSQ, VDSmin and VDSmax for the circuit when the characteristic of the nMOS is given as in the curve. ( important note: please do not care the black points and the dashed lines on the curve).

Image text
Find VDSQ, VDSmin and VDSmax for the circuit when the characteristic of the nMOS is given as in the curve. ( important note: please do not care the black points and the dashed lines on the curve).

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up

Similar/Related Questions

The ID vs. VDS curve of a certain nMOS transistor (with VGS − VTH = 2 V) is the piecewise-linear connection of ID = kVDS(VGS − VTH) and ID = k(VGS − VTH)2 plotted above as each of two dotted lines. Note that these dotted lines extend these equations into regions in which they are not valid. The transistor is loaded with RD = 100 Ω and VDD−9 V. This load line has been plotted using a solid black line. Recognize that ID = min{kVDS(VGS − VTH), k(VGS − VTH)2}. In words, the load line will intersect both dashed lines, but the intersection point with the lowest drain current, ID. is the correct operating point. What is that operating point, (VDS, ID) ? Comment: Alternately, the region in which the operating point of MOSFET exercise resides (active vs. Ohmic) can often be first determined by locating the graphical intercept points. You can then find an accurate solution by applying the region-specific equation for the piecewise-linear IV characteristic of the MOSFET. VDS = number (2 significant figures) V ID = number ( 2 significant figures) mA
Solution
0 0

For the circuit, (a) Draw a rough voltage transfer curve. (b) Do the transistors in this circuit suffer from body effect? Explain why or why not. (c) Find the expression for VOL and VOH in terms of the circuit and transistor parameters kn’, kp’ and W/L. Assume VT and VDSAT have the same magnitude for both NMOS and PMOS devices. Given that the input Vin swings between GND and VDD. (d) Does this circuit consume static power? Explain why or why not. For the MOSFETs use the following device parameters unless otherwise specified. Kn’ = 120 μA/V2 VTN0 = 0.43 V VDSAT = 0.63 V λn = 0 kp’ = 30 μA/V2 VTP0 = -0.4 V VDSAT = -1.0 V λp = 0 Assume that the bulk terminals of all the NMOS devices are connected to ground. Assume that the bulk terminals of all the PMOS devices are connected to VDD. Assume VTN = 0. 55V VTP = -0. 55V when body effect is a factor.
Solution
0 0

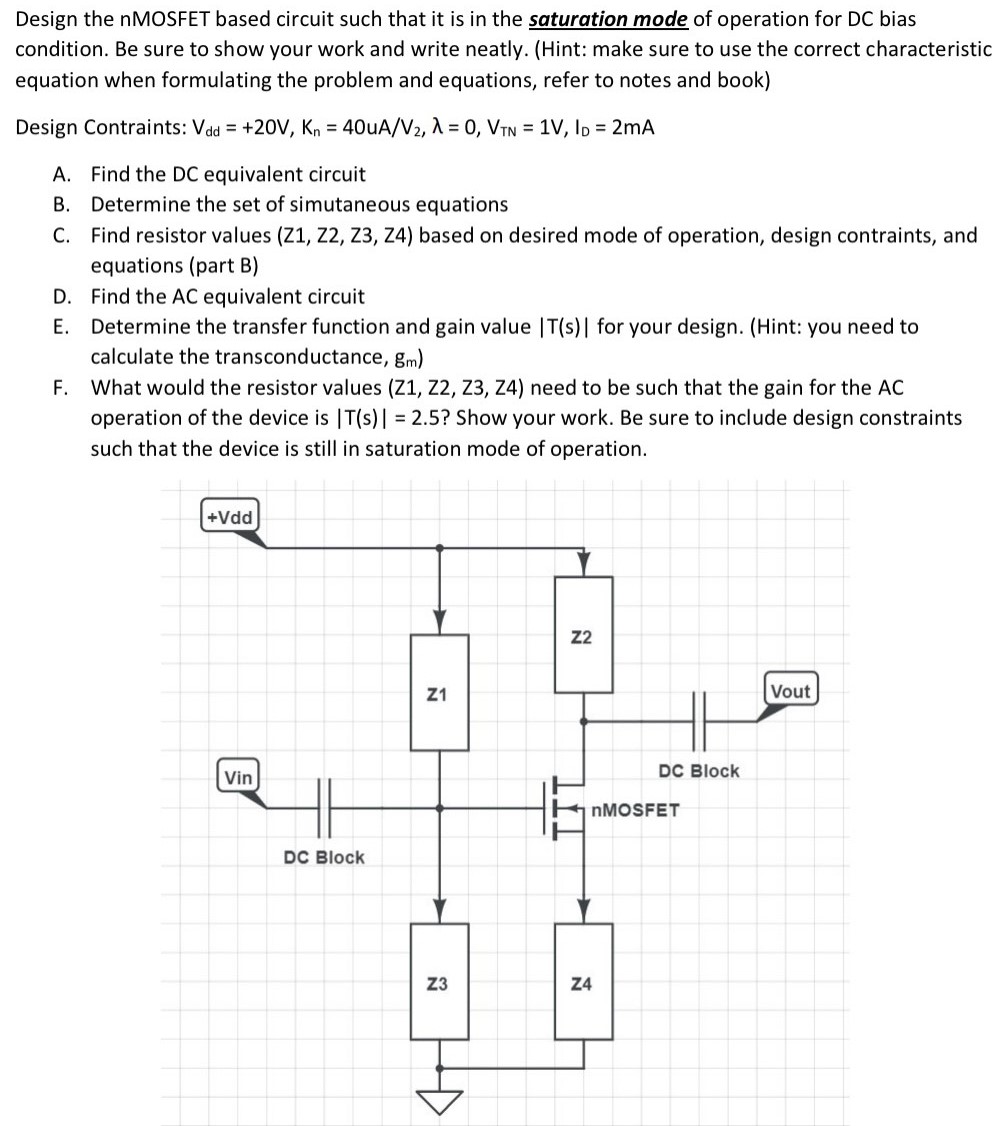

Design the nMOSFET based circuit such that it is in the saturation mode of operation for DC bias condition. Be sure to show your work and write neatly. (Hint: make sure to use the correct characteristic equation when formulating the problem and equations, refer to notes and book) Design Contraints: Vdd = +20 V, Kn = 40uA/V2, λ = 0, VTN = 1 V, ID = 2 mA A. Find the DC equivalent circuit B. Determine the set of simutaneous equations C. Find resistor values (Z1, Z2, Z3, Z4) based on desired mode of operation, design contraints, and equations (part B) D. Find the AC equivalent circuit E. Determine the transfer function and gain value |T(s)| for your design. (Hint: you need to calculate the transconductance, gm) F. What would the resistor values (Z1, Z2, Z3, Z4) need to be such that the gain for the AC operation of the device is |T(s)| = 2.5 ? Show your work. Be sure to include design constraints such that the device is still in saturation mode of operation.
