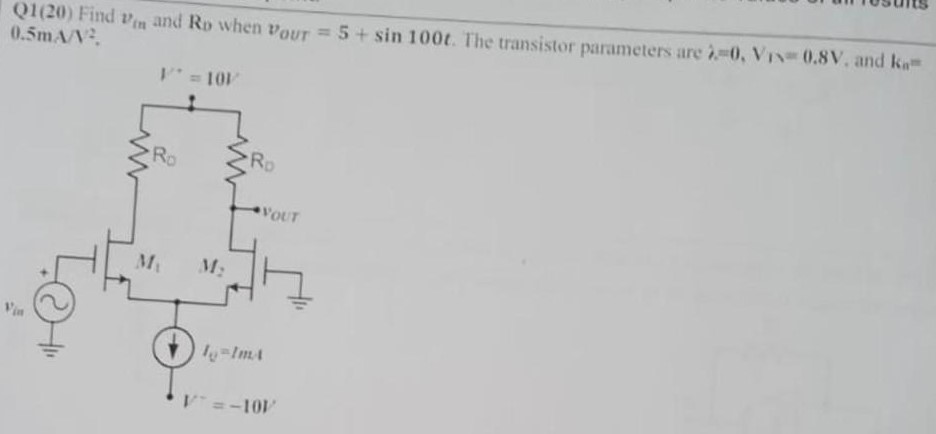

Find vin and RD when vOUT = 5 + sin500t. The transistor parameters are lambda = 0, VTN = 0.8 V, and kn = 0.5 mA/V^2.

Find vin and RD when vOUT = 5 + sin500t. The transistor parameters are lambda = 0, VTN = 0.8 V, and kn = 0.5 mA/V^2.

Image text
Find vin and RD when vOUT = 5 + sin500t. The transistor parameters are lambda = 0, VTN = 0.8 V, and kn = 0.5 mA/V^2.

Detailed Answer

4 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up
  • Student Reviews:
  • (4)

Similar/Related Questions

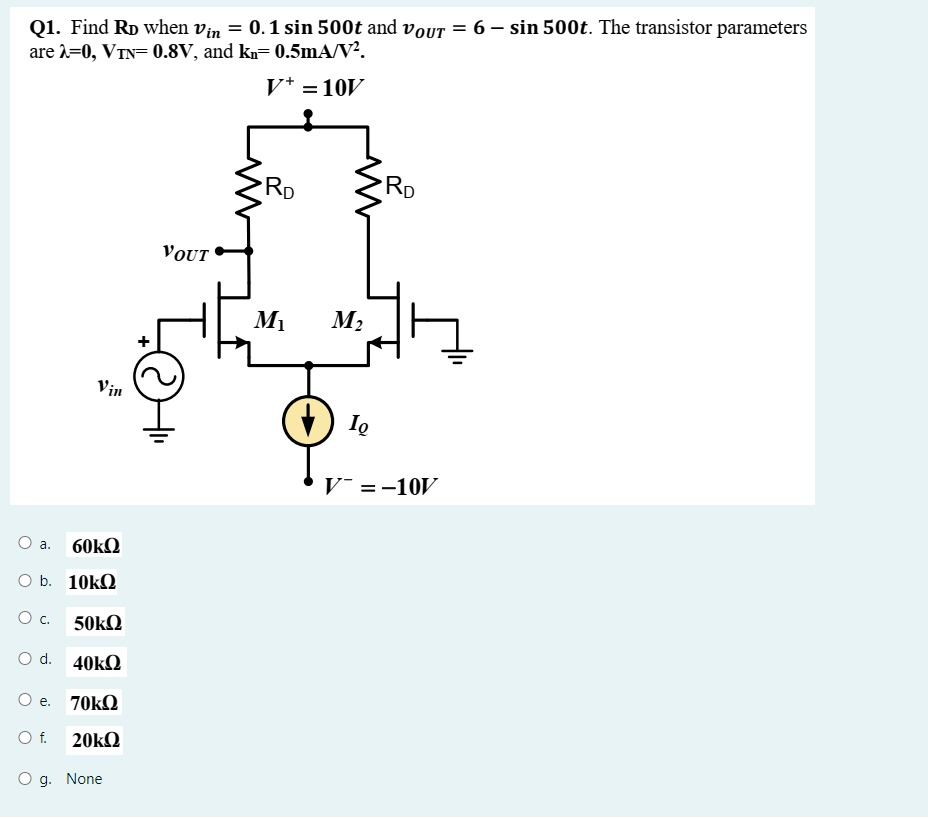

Find RD when vin = 0.1sin500t and vOUT = 6 - sin500t. The transistor parameters are λ = 0, VTN = 0.8 V, and kn = 0.5 mA/V^2 . a. 60kΩ b. 10kΩ c. 50kΩ d. 40kΩ e. 70kΩ f. 20kΩ g. None
Solution
1 0

The parameters of the circuit in Figure 4.1 are VDD = 3.3 V and RD = 5 kΩ. The transistor parameters are kn’ = 100 μA/V2, W/L = 40, VTN = 0.4 V, and λ = 0.025 V−1. (a) Find IDQ and VGSQ such that VDSQ = 1.5 V. (b) Determine the small-signal voltage gain.

The parameters of the circuit in Figure 4.1 are VDD = 3.3 V and RD = 5 kΩ. The transistor parameters are kn’ = 100 μA/V2, W/L = 40, VTN = 0.4 V, and λ = 0.025 V−1. (a) Find IDQ and VGSQ such that VDSQ = 1.5 V. (b) Determine the small-signal voltage gain.
Solution
0 0

Ex 4.2: For the circuit shown in Figure 4.1, VDD = 3.3 V and RD = 10 kΩ. The transistor parameters are VTN = 0.4 V, kn′ = 100 μA/V2, W/L = 50, and λ = 0.025 V−1. Assume the transistor is biased such that IDQ = 0.25 mA. (a) Verify that the transistor is biased in the saturation region. (b) Determine the small-signal parameters gm and ro. (c) Determine the small-signal voltage gain. (Ans. (a) VGSQ = 0.716 V and VDSQ = 0.8 V so that VDS > VDS (sat); (b) gm = 1.58 mA/V, ro = 160 kΩ; (c) -14.9) Figure 4.1 NMOS common-source circuit with time-varying signal source in series with gate dc source
