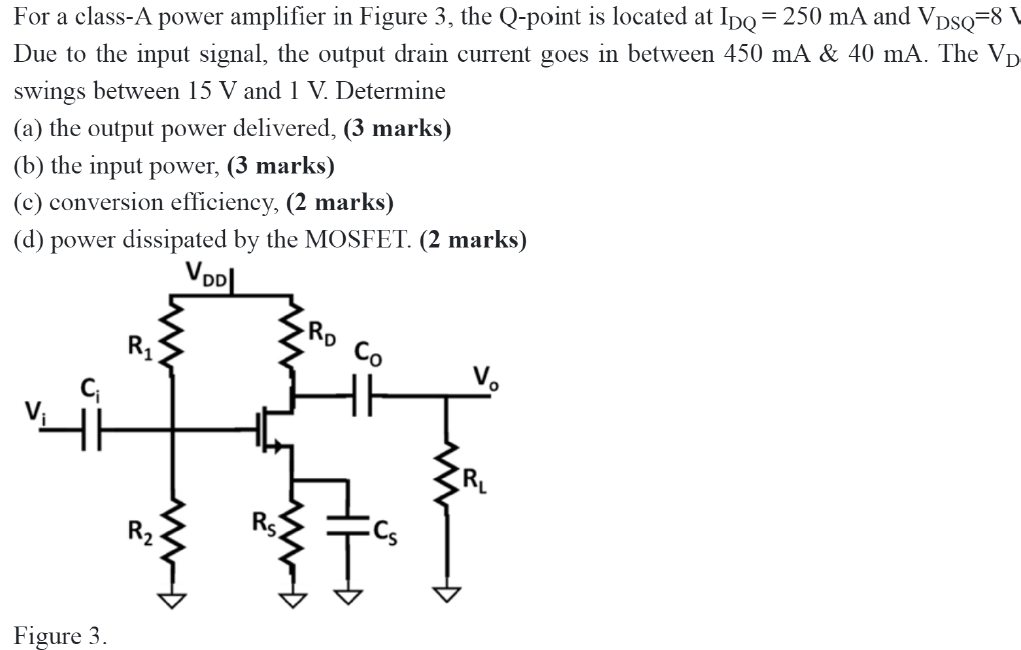

For a class-A power amplifier in Figure 3 , the Q-point is located at IDQ = 250 mA and VDSQ = 8 V Due to the input signal, the output drain current goes in between 450 mA & 40 mA. The VD swings between 15 V and 1 V. Determine (a) the output power delivered, (3 marks) (b) the input power, (3 marks) (c) conversion efficiency, ( 2 marks) (d) power dissipated by the MOSFET. (2 marks) Figure 3.

For a class-A power amplifier in Figure 3 , the Q-point is located at IDQ = 250 mA and VDSQ = 8 V Due to the input signal, the output drain current goes in between 450 mA & 40 mA. The VD swings between 15 V and 1 V. Determine (a) the output power delivered, (3 marks) (b) the input power, (3 marks) (c) conversion efficiency, ( 2 marks) (d) power dissipated by the MOSFET. (2 marks) Figure 3.

Image text
For a class-A power amplifier in Figure 3 , the Q-point is located at I D Q = 250 m A and V D S Q = 8 V Due to the input signal, the output drain current goes in between 450 m A & 40 m A . The V D swings between 15 V and 1 V . Determine (a) the output power delivered, (3 marks) (b) the input power, (3 marks) (c) conversion efficiency, ( 2 marks) (d) power dissipated by the MOSFET. (2 marks)
Figure 3.

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

To improve the performance of the differential amplifier shown in Figure Q1, the biasing current source is replaced by a Widlar current source. The collector resistors are replaced by a current mirror formed by the matched bipolar transistors Qs and Q6, and the bipolar transistors Q1 and Q2 are replaced by the matched field-effect transistors M1 and M2. A single-sided output at the drain terminal of M2 is used. The transistor parameters for the bipolar transistors are: β = 100, VBE (on) = VEB(on) = 0.7 V, and VA = 100 V. The transistor parameters for M1 and M2 are: Kn = 0.15 mA/V2, VT N = 0.8 V, λ = 0.01 V-1 . The improved differential amplifier is shown in Figure Q2. (a) Determine the quiescent voltages and currents of M1 and M2 when v1 = v2 = 0. (4 marks) (b) Design the value of resistor RE such that IQ = 0.1 mA. (2 marks) (c) Determine the maximum and minimum common-mode voltages that can be applied to v1 and v2. (3 marks) (d) Determine the percentage change in IQ when the common-mode voltage applied to v1 and v2 changes from the maximum to the minimum value obtained in part (c). (5 marks) (c) Define vd = v1 - v2, determine the differential-mode voltage gain Ad of the improved differential amplifier.
Solution
0 0

For the circuit shown in Figure 2, the MOSFET parameters are K = 0.25 mA/V2 and Vto = 1.4 V. (a) Assume the MOSFET is in the saturation region, calculate RD, Rs and VGS where IDQ and VD are given as 0.5 mA and 1 V respectively. (7 marks) (b) Check the assumption, is your assumption correct? You need to provide all calculation steps. (3 marks) (c) Plot output characteristic curve, draw the load-line and plot Q-point. (3 marks) (d) Choose standard resistor values that are closest to the ideal designed values for Rs and RD and calculate VDS, VGS and ID at Q-point. (8 marks) (e) If the standard resistor Rs has ±10% tolerances, determine the maximum and minimum values of IDQ. (4 marks) Figure 2

Solution
0 0

Figure 1 shows a common-source amplifier circuit with load Resistor as current source. Assume that the transistor has a bias overdrive voltage of 0.3 V, a bias current of 69 μA and the Kn = 300 A/V2. Also assume that the channel-length modulation for the transistor can be neglected. (a) Sketch the small-signal equivalent circuit for the common-source amplifier in Figure 1. (2 marks) (b) Analyse the bias value of the output voltage. (2 marks) (c) Determine the small-signal gain. (3 marks) (d) Design the W/L of the NMOS transistor so that it fulfil the above requirements. (3 marks)
Solution
0 0
