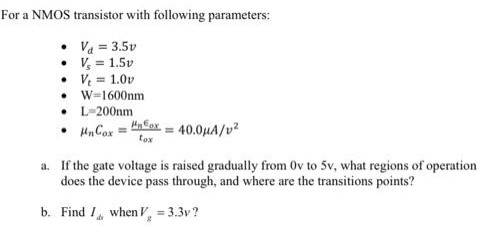

For a NMOS transistor with following parameters: Vd = 3.5v Vs = 1.5v Vt = 1.0v W = 1600 nm L = 200 nm unCox = unEox/tox = 40.0 uA/v2 a. If the gate voltage is raised gradually from 0v to 5v, what regions of operation does the device pass through, and where are the transitions points? b. Find Ids when Vg = 3.3v?

For a NMOS transistor with following parameters: Vd = 3.5v Vs = 1.5v Vt = 1.0v W = 1600 nm L = 200 nm unCox = unEox/tox = 40.0 uA/v2 a. If the gate voltage is raised gradually from 0v to 5v, what regions of operation does the device pass through, and where are the transitions points? b. Find Ids when Vg = 3.3v?

Image text
For a NMOS transistor with following parameters: Vd = 3.5v Vs = 1.5v Vt = 1.0v W = 1600 nm L = 200 nm unCox = unEox/tox = 40.0 uA/v2 a. If the gate voltage is raised gradually from 0v to 5v, what regions of operation does the device pass through, and where are the transitions points? b. Find Ids when Vg = 3.3v?

Detailed Answer

2 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up
  • Student Reviews:
  • (2)

Similar/Related Questions

6.7 One Ids − Vds curve of an ideal MOSFET is shown in Fig. 6-43. Note that Idsat = 10 −3 A and Vdsat = 2 V for the given characteristic. (You may or may not need the following information: m = 1, L = 0.5 μm, W = 2.5 μm, TOX = 10 nm. Do not consider velocity saturation.) (a) Given a Vt of 0.5 V, what is the gate voltage Vgs one must apply to obtain the I−V curve? (b) What is the inversion-layer charge per unit area at the drain end of the channel when the MOSFET is biased at point (1) on the curve? (c) Suppose the gate voltage is changed such that Vgs−Vt = 3 V. For the new condition, determine Ids at Vds = 4 V. (d) If Vd = Vs = Vb = 0 V, sketch the general shape of the gate capacitance C vs. Vg to be expected from the MOSFET, when measured at 1 MHz. Do not calculate any capacitance but do label the Vg = Vt point in the C−V curve.
Solution
0 0

Design Case: The I-V characteristics of a NMOS device is to be studied. Especially, the relationships between IDS, VGS, and VDS are to be found. Find the I-V characteristics of a NMOS with size W/L = 2u/0.4u by performing the following simulations: 1. Run a DC simulation and demonstrate IDS curve when VGS is swept from 0 V to 2 V. > Set VDS=1 V. > Plot the VGS VS. IDS curve. > Q1.1: What is the threshold voltage (VTH) of the given transistor? Q1.2: Explain how gm can be calculated from the VGS Vs. IDS curve. 2. Run a DC simulation and show IDS curve when VDS is swept from 0V to 2 V. > Set VGS = 700mV. > Plot VDS VS. IDS Curve. > Q2.1: At what VDS does the transistor transit from linear region to saturation region? > Q2.2: Does the given device suffer from channel length modulation effect? Q Q2.3: If it suffers from channel length modulation, how can it be fixed? Q2.4: Explain how ro can be calculated from the VDS vs. IDS curve. * For all design sessions, use nfet33 for NMOS and pfet33 for PMOS from "cmrf8sf" library.

Design Case: The I-V characteristics of a NMOS device is to be studied. Especially, the relationships between IDS, VGS, and VDS are to be found. Find the I-V characteristics of a NMOS with size W/L = 2u/0.4u by performing the following simulations: 1. Run a DC simulation and demonstrate IDS curve when VGS is swept from 0 V to 2 V. > Set VDS=1 V. > Plot the VGS VS. IDS curve. > Q1.1: What is the threshold voltage (VTH) of the given transistor? Q1.2: Explain how gm can be calculated from the VGS Vs. IDS curve. 2. Run a DC simulation and show IDS curve when VDS is swept from 0V to 2 V. > Set VGS = 700mV. > Plot VDS VS. IDS Curve. > Q2.1: At what VDS does the transistor transit from linear region to saturation region? > Q2.2: Does the given device suffer from channel length modulation effect? Q Q2.3: If it suffers from channel length modulation, how can it be fixed? Q2.4: Explain how ro can be calculated from the VDS vs. IDS curve. * For all design sessions, use nfet33 for NMOS and pfet33 for PMOS from "cmrf8sf" library.
Solution
0 0

An NMOS transistor is fabricated in a 0.18-um process having unCox = 200 uA/V^2 and VA' = 50V /um of channel length. If L = 0.8 um and W = 16 um, (a) Find VA and lambda. [3 points] (b) Find the value of ID that results when the device is operated with an overdrive voltage Vov = 0.5 V and VDS = 1 V. Also find the value of ro at this operating point. [4 points] (c) If VDS is increased by 2 V, what is the corresponding change in ID? [3 points]
