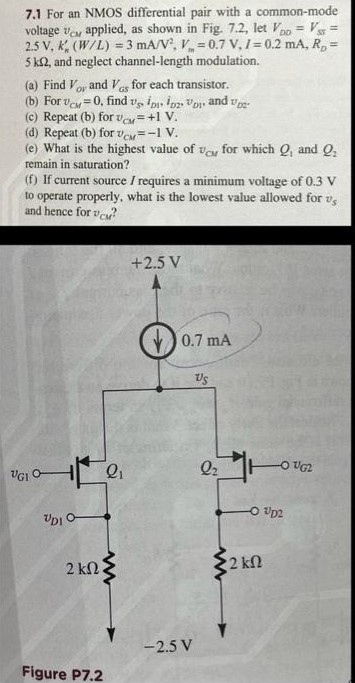

For an NMOS differential pair with a common-mode voltage vCM applied, as shown in Fig. 7.2, let VDD = VSS= 2.5 V, Kn

For an NMOS differential pair with a common-mode voltage vCM applied, as shown in Fig. 7.2, let VDD = VSS= 2.5 V, Kn

Image text
For an NMOS differential pair with a common-mode voltage vCM applied, as shown in Fig. 7.2, let VDD = VSS= 2.5 V, Kn

Detailed Answer
