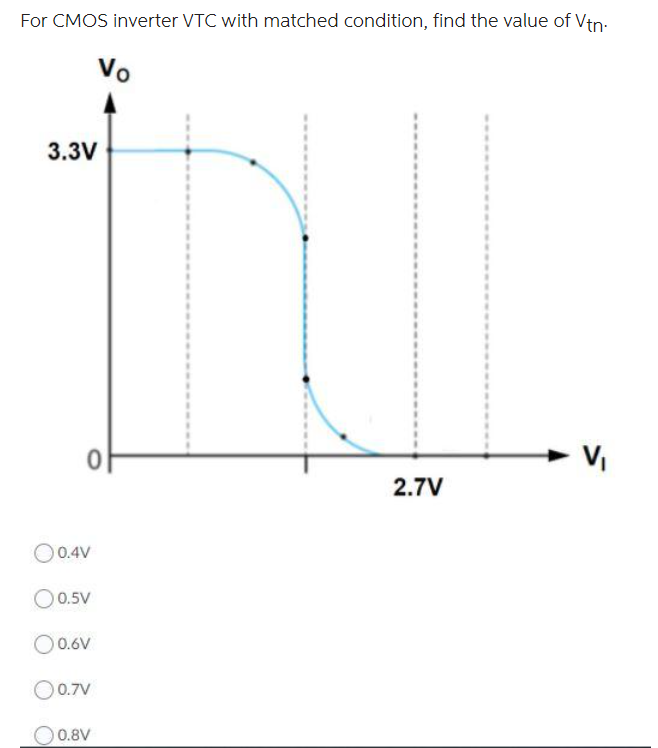

For CMOS inverter VTC with matched condition, find the value of Vtn.

For CMOS inverter VTC with matched condition, find the value of Vtn.

Image text
For CMOS inverter VTC with matched condition, find the value of Vtn.

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up

Similar/Related Questions

Consider a standard CMOS inverter with QN and QP matched and with the input vi rising slowly from 0 to VDD. At what value of vi does the current flowing through QN and QP reach its peak? Give an expression for the peak current, neglecting λn and λp. For kn’ = 500 μA/V2, (W/L)n = 1.5, VDD = 1.3 V, and Vtn = 0.4 V, find the value of the peak current. (Hint: Max current is during switching when for a brief moment, both transistors are in the saturation mode and "half on").
Solution
2 0

Consider the CMOS inverter of Fig. 14.22 with QN and QP matched and with the input vI rising slowly from 0 to VDD. At what value of vI does the current flowing through QN and QP reach its peak? Give an expression for the peak current, neglecting λn and λp. For k’n = 500 μA/V2 , (W/L)n = 1.5, VDD = 1.3 V, and Vtn = 0.4V, find the value of the peak current.
Solution
2 0

5. The voltage transfer characteristic (VTC) of a CMOS inverter is shown in Figure 5 . The threshold voltages for the NMOS and PMOS devices are +0.4V and -0.4 respectively. Assume the transistors are well-matched with identical μCox(W/L) values. 5.1. What is the value of Vdd? What is Vee? 5.2. Determine the states of the two FETs (cut-off, linear, or saturation) at points A, B, C, and D on the VTC. Write your answers in the table below. 5.3. Which point(s) on the VTC would produce the lowest static power consumption? 5.4. Place a large dot on the VTC at the point of largest dynamic power consumption.Figure 5 CMOS inverter w voltage transfer curve.
