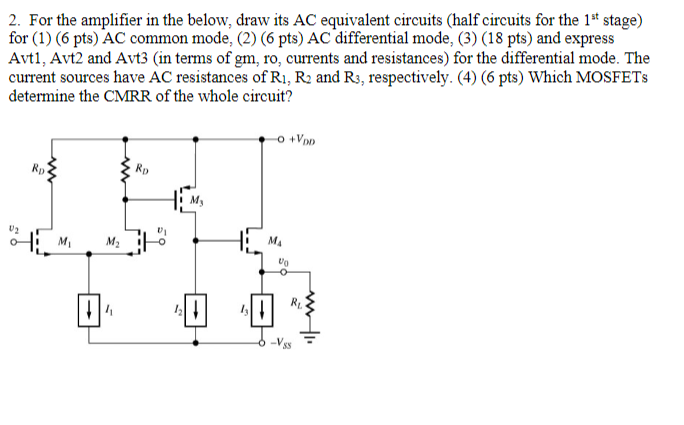

For the amplifier in the below, draw its AC equivalent circuits (half circuits for the 1st stage) for (1) (6 pts) AC common mode, (2) (6 pts) AC differential mode, (3) (18 pts) and express Avt1, Avt2 and Avt3 (in terms of gm, ro, currents and resistances) for the differential mode. The current sources have AC resistances of R1, R2 and R3, respectively. (4) (6pts) Which MOSFETs determine the CMRR of the whole circuit?
