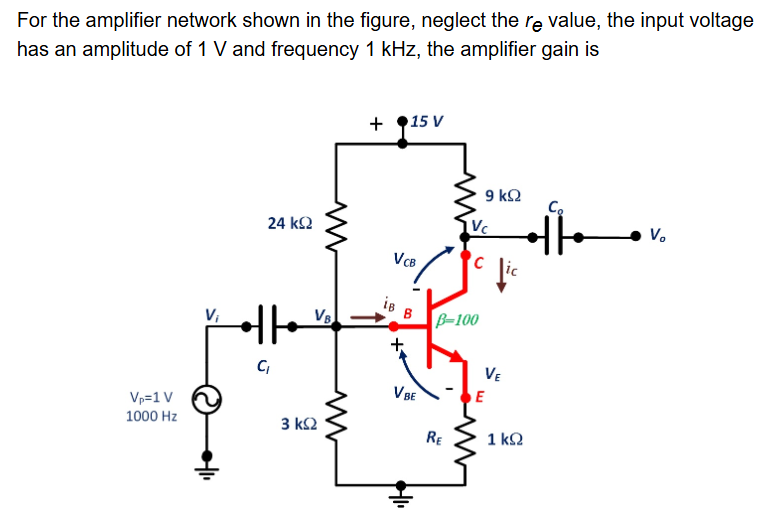

For the amplifier network shown in the figure, neglect the re value, the input voltage has an amplitude of 1 V and frequency 1 kHz, the amplifier gain is
