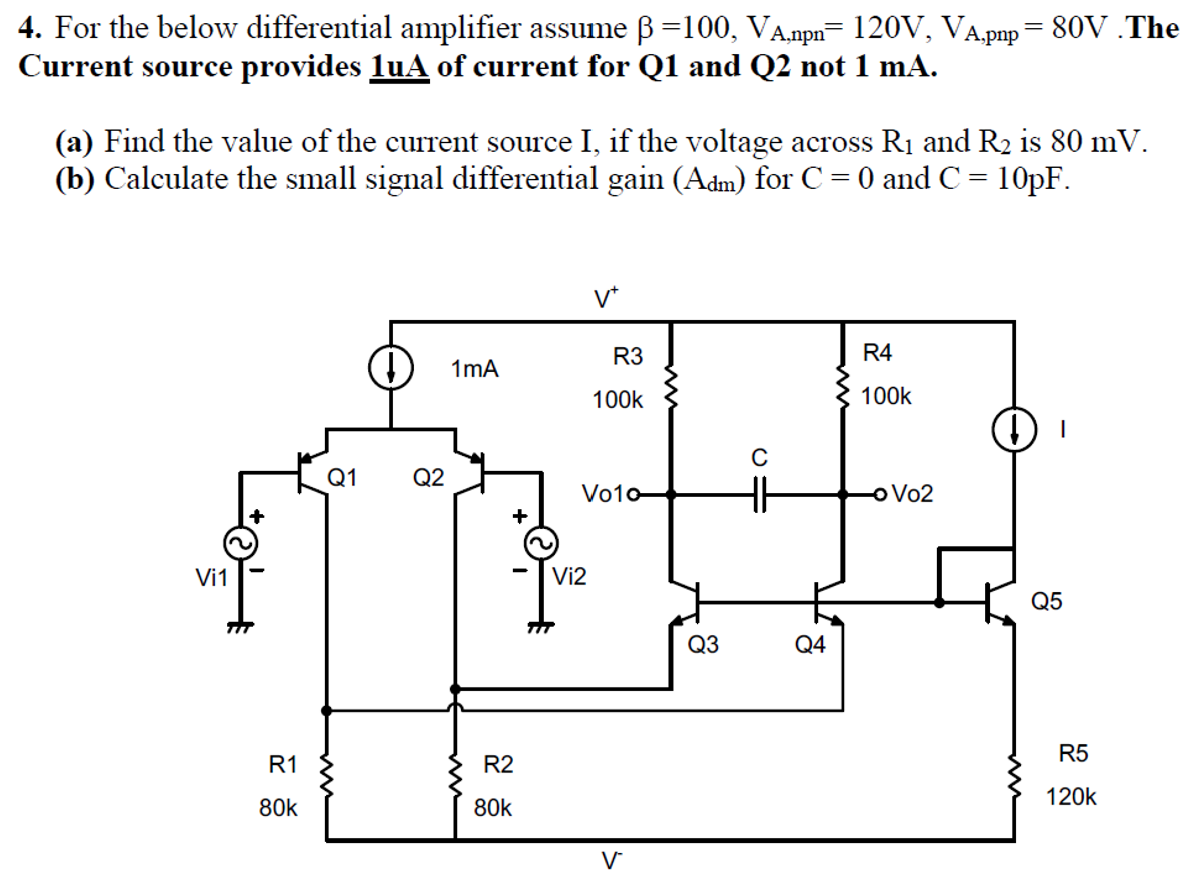

For the below differential amplifier assume β = 100, VA, npn = 120 V, VA, pnp = 80 V. The Current source provides 1 uA_ of current for Q1 and Q2 not 1 mA. (a) Find the value of the current source I, if the voltage across R1 and R2 is 80 mV. (b) Calculate the small signal differential gain (Adm) for C = 0 and C = 10 pF.
