For the circuit below, assume kn′ = 100 uA/V2, and kp′ = 50 uA/V2, Vtn

Question

Notify Me Bookmark

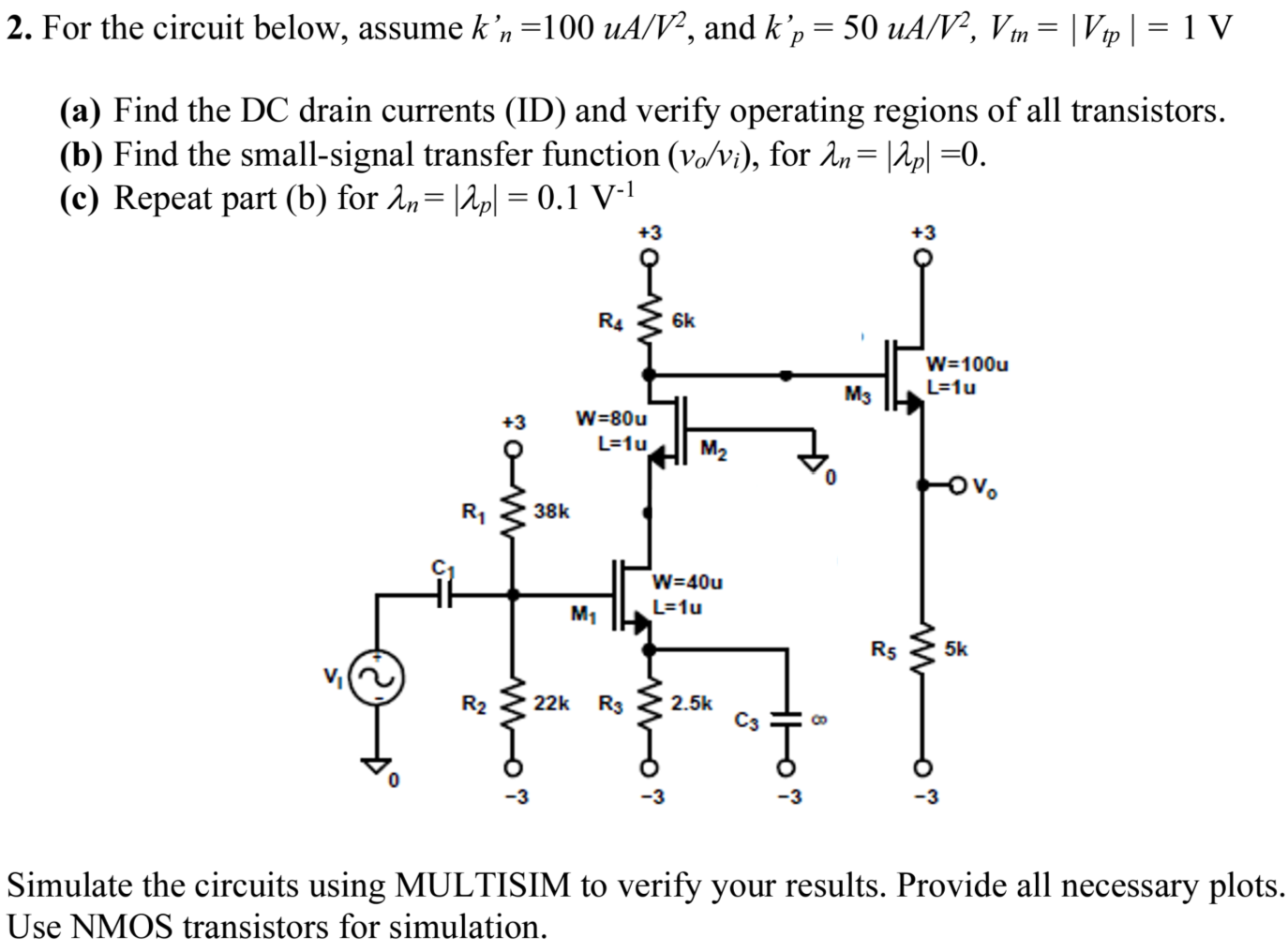

For the circuit below, assume kn′ = 100 uA/V2, and kp′ = 50 uA/V2, Vtn = |Vtp| = 1 V (a) Find the DC drain currents (ID) and verify operating regions of all transistors. (b) Find the small-signal transfer function (vo/vi), for λn = |λp| = 0. (c) Repeat part (b) for λn = |λp| = 0.1 V−1 Simulate the circuits using MULTISIM to verify your results. Provide all necessary plots. Use NMOS transistors for simulation.

Image text

For the circuit below, assume $k_{n}^{'} = 100 u A / V^{2}$ , and $k_{p}^{'} = 50 u A / V^{2}, V_{t n} = | V_{t p} | = 1 V$ (a) Find the DC drain currents (ID) and verify operating regions of all transistors. (b) Find the small-signal transfer function $(v_{o} / v_{i})$ , for $λ_{n} = | λ_{p} | = 0$ . (c) Repeat part (b) for $λ_{n} = | λ_{p} | = 0.1 V^{- 1}$
