For the circuit given, transistor parameters are β = 100, VBE = 0.7 V, Vth,p = −1 V, μpCox(W/L) = 50 μA/V2. a) Design a bias stable circuit that BJT operates at the active region and MOS transistor operates at saturation region. b) Find the voltage gain, vo/vs

For the circuit given, transistor parameters are β = 100, VBE = 0.7 V, Vth,p = −1 V, μpCox(W/L) = 50 μA/V2. a) Design a bias stable circuit that BJT operates at the active region and MOS transistor operates at saturation region. b) Find the voltage gain, vo/vs

Image text

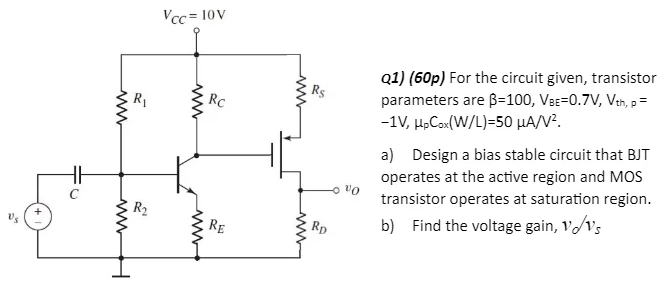

Q1) (60p) For the circuit given, transistor parameters are β = 100 , V B E = 0.7 V , V t h , p = − 1 V , μ p C o x ( W / L ) = 50 μ A / V 2 . a) Design a bias stable circuit that BJT operates at the active region and MOS transistor operates at saturation region. b) Find the voltage gain, v d / v s

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

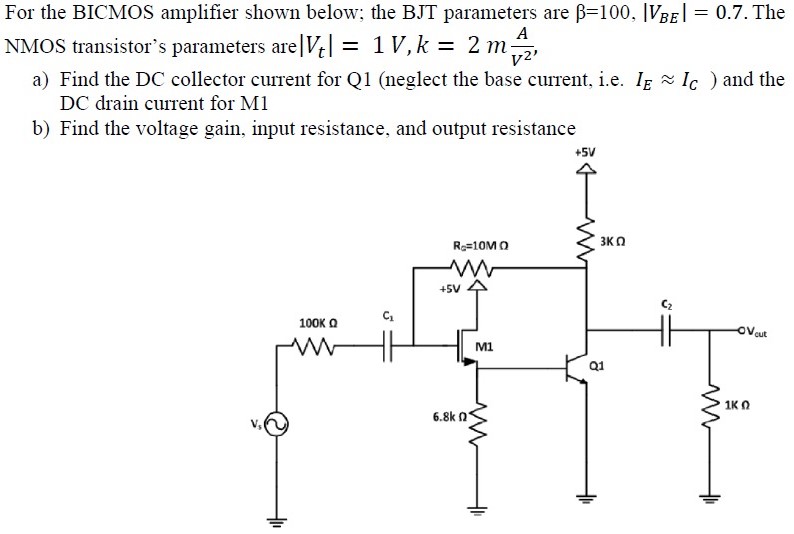

For the BICMOS amplifier shown below; the BJT parameters are β = 100, |VBE| = 0.7. The NMOS transistor's parameters are |Vt| = 1 V, k = 2 mAV2, a) Find the DC collector current for Q1 (neglect the base current, i.e. IE ≈ IC) and the DC drain current for M1 b) Find the voltage gain, input resistance, and output resistance
