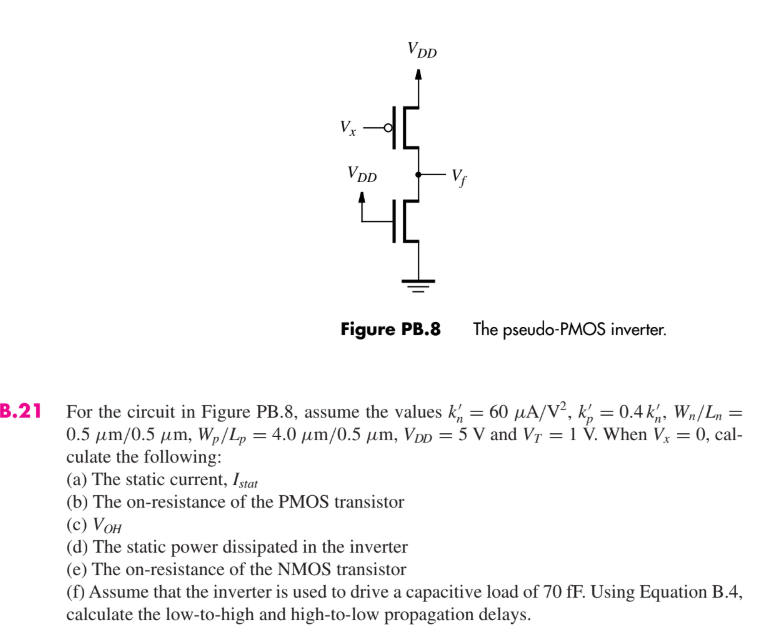

For the circuit in Figure PB.8, assume the values assume the values k

For the circuit in Figure PB.8, assume the values assume the values k

Image text
For the circuit in Figure PB.8, assume the values assume the values k

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up

Similar/Related Questions

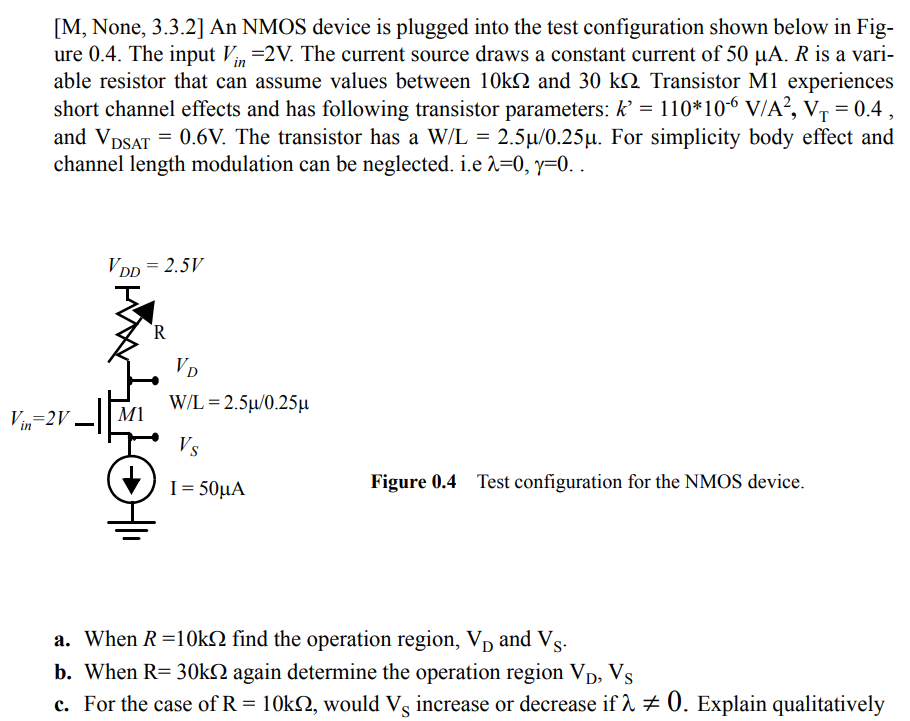

An NMOS device is plugged into the test configuration shown below in Figure 0.4. The input Vin = 2 V. The current source draws a constant current of 50 µA. R is a variable resistor that can assume values between 10 kΩ and 30 kΩ. Transistor M1 experiences short channel effects and has following transistor parameters: k’ = 110*10-6 V/A2, VT = 0.4 , and VDSAT = 0.6V. The transistor has a W/L = 2.5µ/0.25µ. For simplicity body effect and channel length modulation can be neglected. i.e λ=0, γ=0.
Solution
3 0

Charge sharing is an important problem in dynamic circuits. Switching exposes a fixed amount of charge to a different capacitive environment. This results in node voltage change. After pre-charge stage, the output node voltage of the dynamic logic circuit in Figure 1 will be equal to VDD. During the evaluate phase, assume A = 1 and B=0. Output node will not connect to ground but the total charge on the output node (Q = C.V) will be shared by parasitic capacitance (C1) and the load capacitance (CL). So that the output voltage will drop and be equal to M1 source voltage. a. The circuit is Figure 1 is pre-charged with VDD = 3V. During evaluation stage, M1 turns on and M2 is off (A=1 and B=0). CL = 250fF, C1 = 125fF and Vt0,n=0.55V. Calculate the final voltage after charge sharing. Is M1 still conducting at this voltage? b. Repeat question a for C1 = 40fF. Calculate the final voltage after charge sharing. Is M1 still conducting at this voltage? If not, what is the value of the output voltage at this scenario? c. With A = 1 and B = 0, the output of the circuit in Fig 1 should be logic high. However, you have seen that logic high does not mean VDD for this example. Output voltage depends on the parasitic capacitance at the source node of M2. For a dynamic 2 input NAND gate, what is the maximum value that the Figure 1 output voltage can reach when A= 1 and B = 0?

Solution
0 0

Let ID1 = 1 mA and VDD = 5 V. Determine the value of VB2 that maximizes the output swing while keeping the transistors in saturation. 2. For the circuit in Figure 1(b), report the values of the following: a. gm b. Vo c. RB d. AI , the short circuit current gain. Figure 1: NMOS Current Mirrors (a) without cascoding and (b) with cascoding. Table 1: Hand analysis device parameters for the ALD1101 and ALD1102 MOSFETs.
Solution
