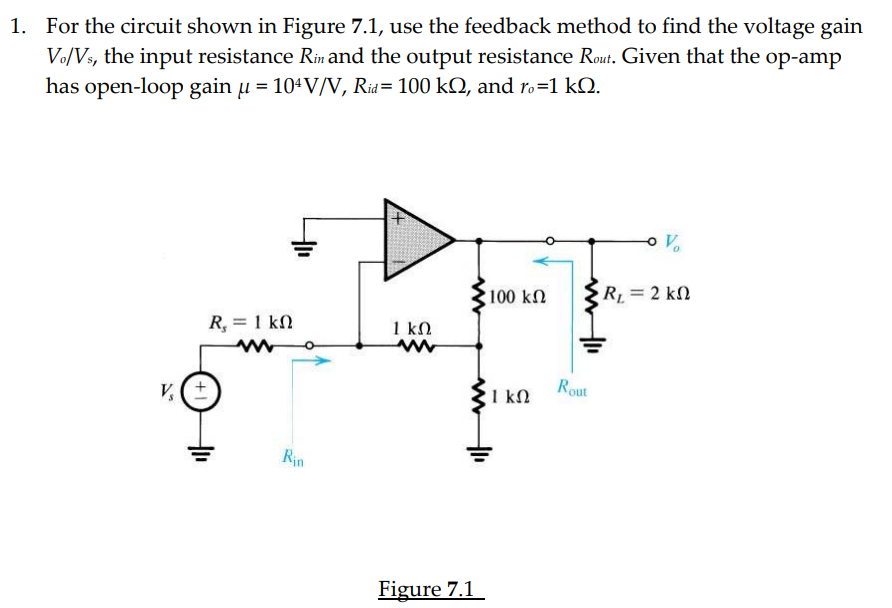

For the circuit shown in Figure 7.1, use the feedback method to find the voltage gain Vo/Vs, the input resistance Rin and the output resistance Rout. Given that the op-amp has open-loop gain u = 10^4 V/V, Rid = 100 k, and ro = 1 k.
