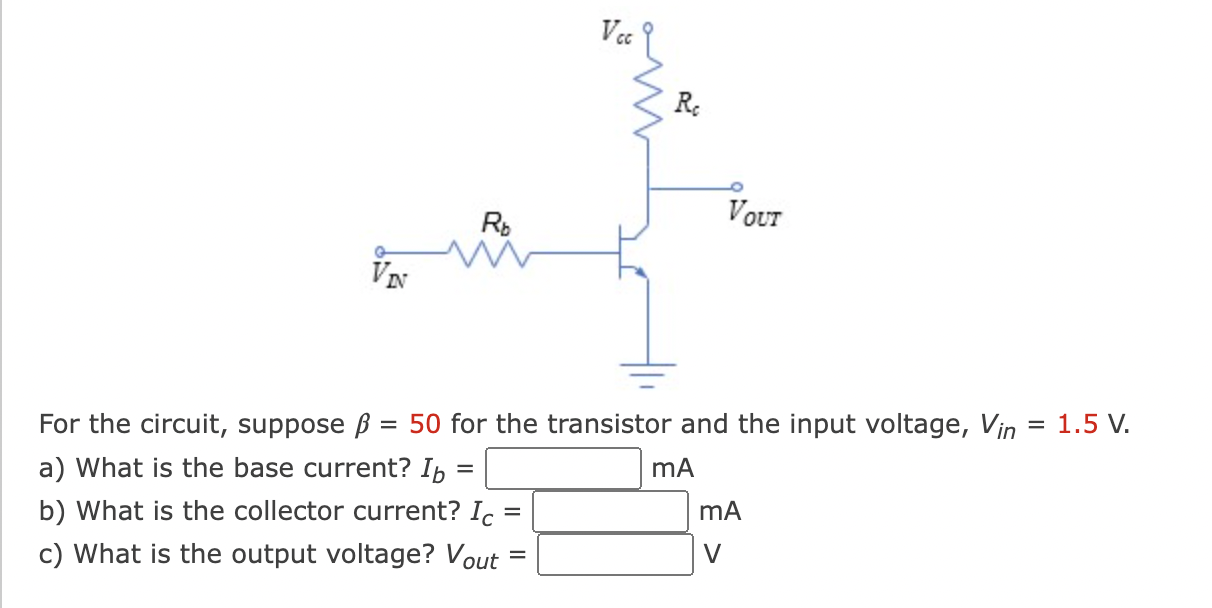

For the circuit, suppose β = 50 for the transistor and the input voltage, Vin = 1.5 V. a) What is the base current? Ib = mA b) What is the collector current? Ic = mA c) What is the output voltage? Vout = V

For the circuit, suppose β = 50 for the transistor and the input voltage, Vin = 1.5 V. a) What is the base current? Ib = mA b) What is the collector current? Ic = mA c) What is the output voltage? Vout = V

Image text
For the circuit, suppose β = 50 for the transistor and the input voltage, V i n = 1.5 V . a) What is the base current? I b = ◻ m A b) What is the collector current? I c = ◻ m A c) What is the output voltage? V out = ◻ V

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

For the circuit below, VCC = 20 V, VBE1 = VBE2 = 0.8 V, β = 300, VT = 25 mV, VA = ∞, R1 = 230 kΩ, R2 = 120 kΩ, RC1 = 12 kΩ, RC2 = 6 kΩ, RE1 = 500 Ω, RE2 = 3 kΩ, and RE3 = 4.5 kΩ are given. C∞s are very large coupling/bypass capacitors. a. Find the operating collector currents of T1 and T2. Neglect the base currents and assume α = 1. b. Find the value of RL1 such that the second stage output has symmetric clipping property. Assume VCEsat = 1.5 V. c. What is the voltage gain of the amplifier in dB ? d. Now, assume that the amplifier should drive a load of RL2 = 270 Ω. For this purpose, the circuit on the right is coupled to the node X in the multi-stage amplifier. Explain why this circuit has been preferred. a. Find the value of IDC given that kn,T3 = 30 mA/V2 and λ = 0, such that the voltage gain of the newly-added stage is AV, T3 = 0.9. Assume that T3 operates in the saturation region.
Solution
0 0

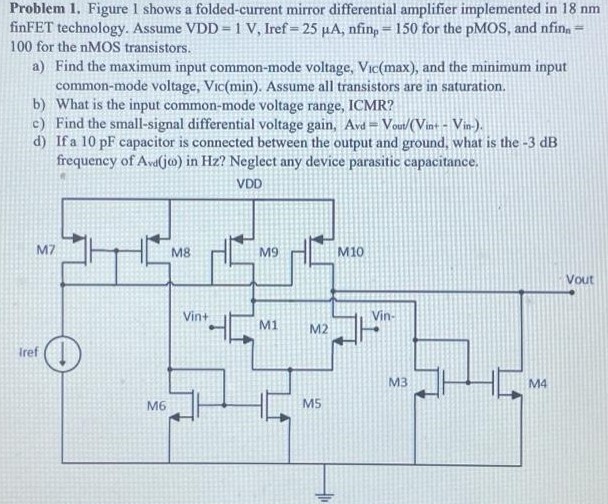

Figure 1 shows a folded-current mirror differential amplifier implemented in 18 nm finFET technology. Assume VDD = 1 V, Iref = 25 µA, nfinp = 150 for the pMOS, and nfinn = 100 for the nMOS transistors. a) Find the maximum input common-mode voltage, VIC(max), and the minimum input common-mode voltage, Vic(min). Assume all transistors are in saturation. b) What is the input common-mode voltage range, ICMR? c) Find the small-signal differential voltage gain, Avd = Vout/ (Vin+ - Vin-). d) If a 10pF capacitor is connected between the output and ground, what is the -3 dB frequency of Avd(jω) in Hz ? Neglect any device parasitic capacitance.
