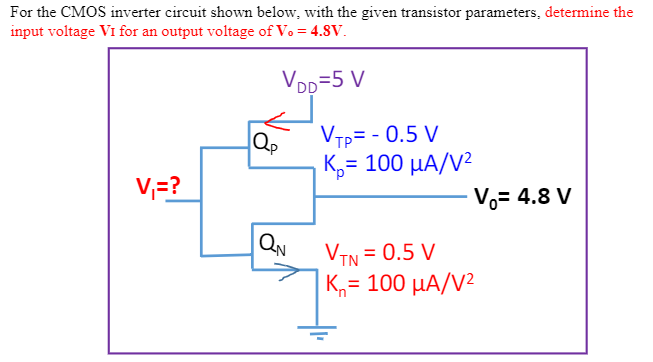

For the CMOS inverter circuit shown below, with the given transistor parameters, determine the input voltage V1 for an output voltage of Vo = 4.8V.
