For the common-gate circuit in Figure P4.48, the NMOS transistor parameters are: VTN = 1 V, Kn = 3 mA/V2, and λ = 0. (a) Determine IDQ and VDSQ. (b) Calculate gm and ro. (c) Find the small-signal voltage gain Av = vo/vi.

For the common-gate circuit in Figure P4.48, the NMOS transistor parameters are: VTN = 1 V, Kn = 3 mA/V2, and λ = 0. (a) Determine IDQ and VDSQ. (b) Calculate gm and ro. (c) Find the small-signal voltage gain Av = vo/vi.

Image text
For the common-gate circuit in Figure P4.48, the NMOS transistor parameters are: VTN = 1 V, Kn = 3 mA/V2, and λ = 0. (a) Determine IDQ and VDSQ. (b) Calculate gm and ro. (c) Find the small-signal voltage gain Av = vo/vi.

Detailed Answer

1 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up
  • Student Reviews:
  • (1)
  • Correct answers (1)
  • Complete solution (1)
  • Step-by-step solution (1)
  • Fully explained (1)

Similar/Related Questions

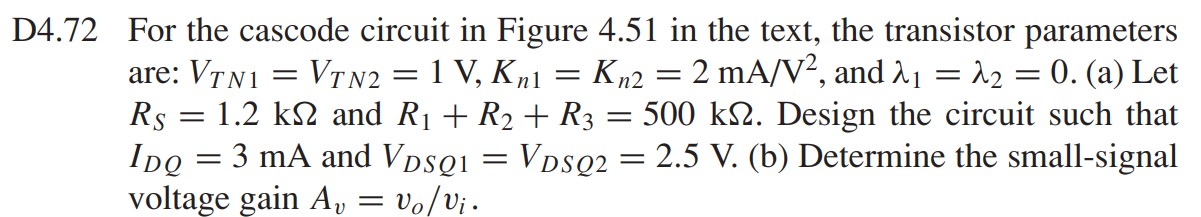

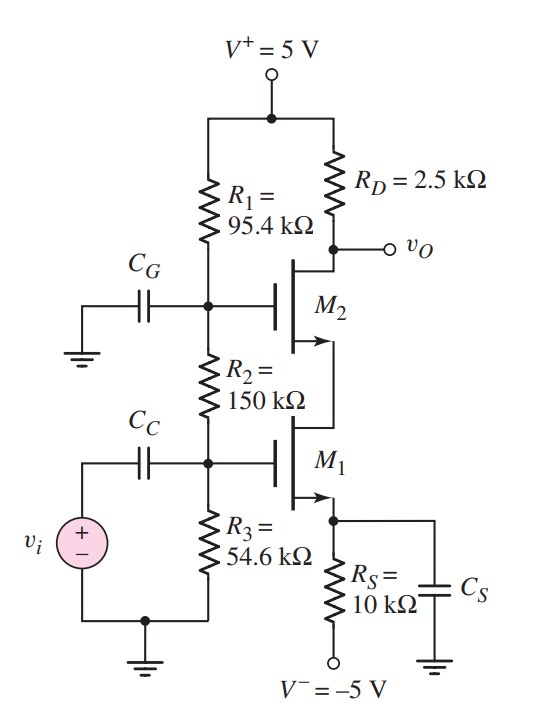

D4.72 For the cascode circuit in Figure 4.51 in the text, the transistor parameters are: VTN1 = VTN2 = 1 V, Kn1 = Kn2 = 2 mA/V2 , and lambda1 = lambda2 = 0. (a) Let RS = 1.2 kohm and R1 + R2 + R3 = 500 kohm. Design the circuit such that IDQ = 3 mA and VDSQ1 = VDSQ2 = 2.5 V. (b) Determine the small-signal voltage gain Av = vo/vi.
