For the current-steering circuit of Fig. P6.25, find I in terms of IREF and device (W/L) ratios.

For the current-steering circuit of Fig. P6.25, find I in terms of IREF and device (W/L) ratios.

Image text
For the current-steering circuit of Fig. P6.25, find I in terms of IREF and device (W/L) ratios.

Detailed Answer

1 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up
  • Student Reviews:
  • (1)
  • Correct answers (1)
  • Complete solution (1)
  • Step-by-step solution (1)
  • Fully explained (1)

Similar/Related Questions

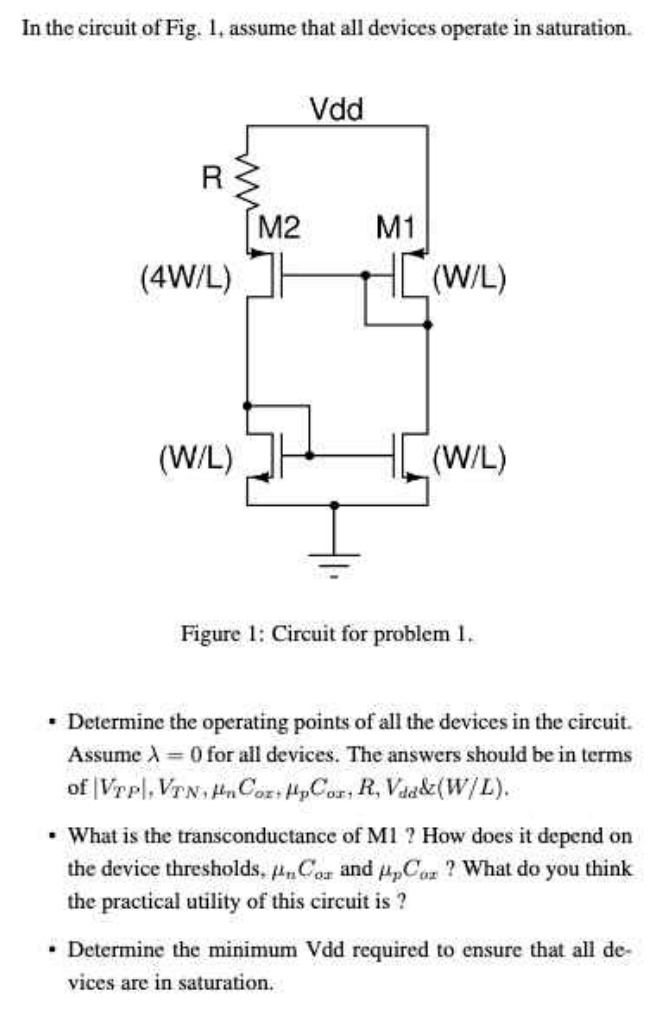

In the circuit of Fig. 1, assume that all devices operate in saturation. Figure 1: Circuit for problem 1. Determine the operating points of all the devices in the circuit. Assume λ = 0 for all devices. The answers should be in terms of |VTP|, VTN, μnCox, μpCox, R, Vdd & (W/L). What is the transconductance of M1? How does it depend on the device thresholds, μnCox and μpCox? What do you think the practical utility of this circuit is? Determine the minimum Vdd required to ensure that all devices are in saturation.

Solution
2 0

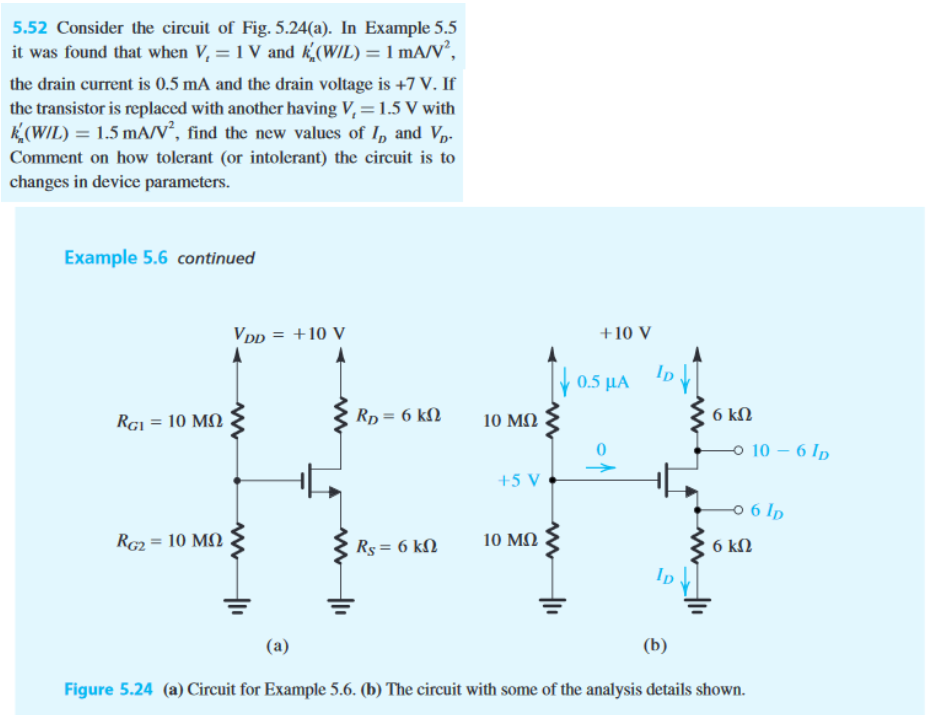

Consider the circuit of Fig. 5.24(a). In Example 5.5 it was found that when Vt = 1 V and k’n(W/L) = 1 mA/V2 , the drain current is 0.5 mA and the drain voltage is +7 V. If the transistor is replaced with another having Vt = 1.5 V with k’n(W/L) = 1.5 mA/V2 , find the new values of ID and VD. Comment on how tolerant (or intolerant) the circuit is to changes in device parameters.
Solution
3 0

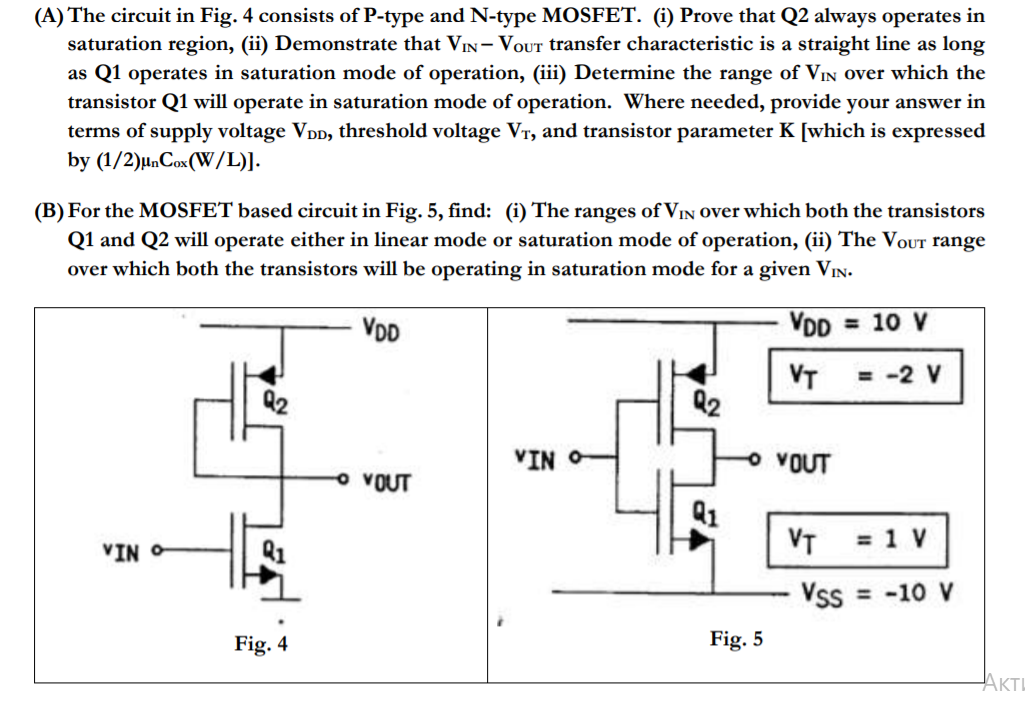

The circuit in Fig. 4 consists of P-type and N-type MOSFET. (i) Prove that Q2 always operates in saturation region, (ii) Demonstrate that Vin-Vout transfer characteristic is a straight line as long as Q1 operates in saturation mode of operation, (iii) Determine the range of Vin over which the transistor Q1 will operate in saturation mode of operation. Where needed, provide your answer in terms of supply voltage VDD, threshold voltage VT, and transistor parameter K (which is expressed by (1/2)unCox(W/L). (B) For the MOSFET based circuit in Fig. 5, find: (i) The ranges of Vin over which both the transistors Q1 and Q2 will operate either in linear mode or saturation mode of operation, (ii) The Vout range over which both the transistors will be operating in saturation mode for a given Vin.
