Question

Notify Me Bookmark

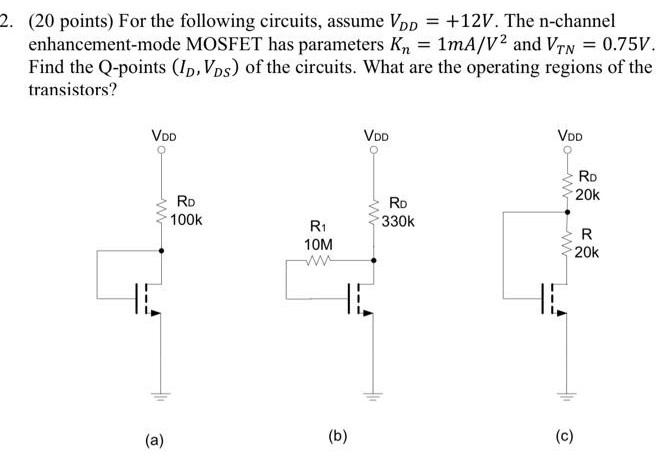

For the following circuits, assume VDD = +12 V. The n-channel enhancement-mode MOSFET has parameters Kn = 1 mA/V2 and VTN = 0.75 V. Find the Q-points (ID, VDS) of the circuits. What are the operating regions of the transistors? (a) (b) (c)

Image text

(20 points) For the following circuits, assume $V_{D D} = + 12 V$ . The n-channel enhancement-mode MOSFET has parameters $K_{n} = 1 m A / V^{2}$ and $V_{T N} = 0.75 V$ . Find the Q-points $(I_{D}, V_{D S})$ of the circuits. What are the operating regions of the transistors? (a) (b) (c)
