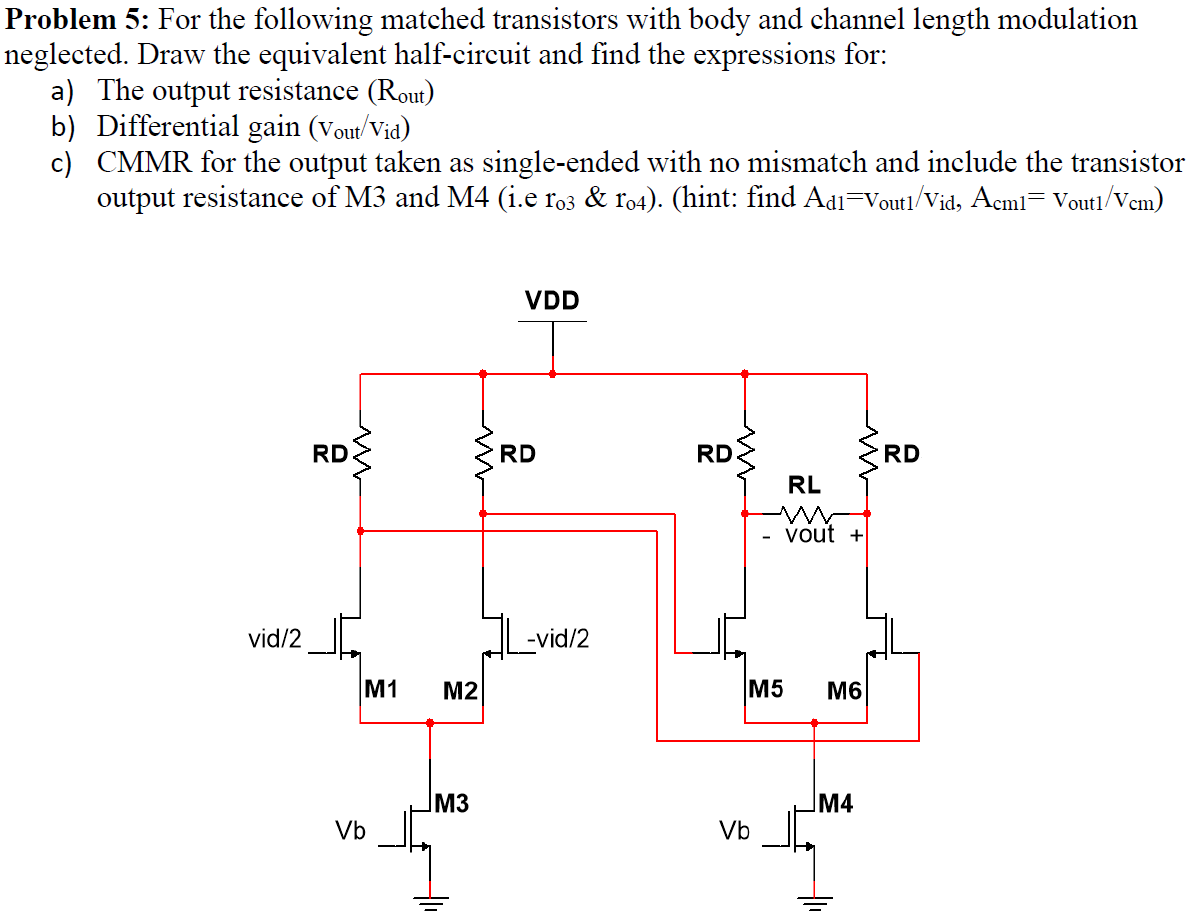

For the following matched transistors with body and channel length modulation neglected. Draw the equivalent half-circuit and find the expressions for: a) The output resistance (Rout) b) Differential gain (vout/vid) c) CMMR for the output taken as single-ended with no mismatch and include the transistor output resistance of M3 and M4 (i.e ro3 & 1o4). (hint: find Ad1 = Vout1/Vid, Acm1 = Vout1/Vcm).

For the following matched transistors with body and channel length modulation neglected. Draw the equivalent half-circuit and find the expressions for: a) The output resistance (Rout) b) Differential gain (vout/vid) c) CMMR for the output taken as single-ended with no mismatch and include the transistor output resistance of M3 and M4 (i.e ro3 & 1o4). (hint: find Ad1 = Vout1/Vid, Acm1 = Vout1/Vcm).

Image text
For the following matched transistors with body and channel length modulation neglected. Draw the equivalent half-circuit and find the expressions for: a) The output resistance (Rout) b) Differential gain (vout/vid) c) CMMR for the output taken as single-ended with no mismatch and include the transistor output resistance of M3 and M4 (i.e ro3 & 1o4). (hint: find Ad1 = Vout1/Vid, Acm1 = Vout1/Vcm).

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

For the following problem, include channel length modulation for all transistors. Ignore body effect and all capacitors. Assume all transistors are biased in saturation. Transistors M1 and M2 are matched, and M3 and M4 are matched. (a) Draw a schematic of the equivalent small-signal circuit. (b) Derive an expression for the low-frequency small-signal gain of the circuit. (c) Derive an expression for the CMRR, CMRR = Adm/Acm.
Solution
0 0

Assumptions for all problems (unless specified otherwise, give answers to 10% ): VDD(V) VT0( V) Body effect γ(V 0.5 ) VDSAT( V) k’ (A/V 2) λ(V -1 ) NMOS 2.0 0.4 0 0.5 500×10-6 0 PMOS -0.4 0 -0.5 -200×10-6 0 1. All transistors have the minimum length (Lunit = 250 nm) 2. Ignore body effect and channel length modulation 3. A transistor's intrinsic capacitance (cap) and gate cap are equal, i.e., Cint = Cg, γ = 1 4. The unit-sized transistor has Wunit = Lunit and intrinsic cap Cint = Cg = Cdb = Csb = 1.0fF. 5. For the unit sized inverter, β = (W/L)P / (W/L N = WP/WN = 2, WN = L = 250 nm 6. The unit sized transmission gate has a resistance Req,tr = 10kΩ and all caps of 1.0fF. a) (6 pts) How does the following circuit operate? In a few words/charts, describe what it does Sketch the waveforms of nodes X and Q given the inputs shown below. Initial state of signals X and Q are unknown (mark with xxx as needed) until the impact of the input signals propagate. X Q b) (4 pts) How would you size each transistor? Match the 2:1 inverter (including the clock). Draw the sizing next to the schematic. Calculate the switch model equivalent resistance(s) (note the equation given at the front of the exam for Req, switch model capacitance(s) (based on your sizing), and worst-case propagation delay through the circuit, max(tpLH,tpLH), where output is taken from Q and inputs are IN1 and IN2. c) (4 pts) Calculate the energy consumption from the VDD power supply of this circuit for the input pattern and time duration given in the timing diagram (previous page). Ignore the energy consumption related to driving IN1, IN2, and CLK. State any assumptions you need to make to determine a numerical value.

Assumptions for all problems (unless specified otherwise, give answers to 10% ): VDD(V) VT0( V) Body effect γ(V 0.5 ) VDSAT( V) k’ (A/V 2) λ(V -1 ) NMOS 2.0 0.4 0 0.5 500×10-6 0 PMOS -0.4 0 -0.5 -200×10-6 0 1. All transistors have the minimum length (Lunit = 250 nm) 2. Ignore body effect and channel length modulation 3. A transistor's intrinsic capacitance (cap) and gate cap are equal, i.e., Cint = Cg, γ = 1 4. The unit-sized transistor has Wunit = Lunit and intrinsic cap Cint = Cg = Cdb = Csb = 1.0fF. 5. For the unit sized inverter, β = (W/L)P / (W/L N = WP/WN = 2, WN = L = 250 nm 6. The unit sized transmission gate has a resistance Req,tr = 10kΩ and all caps of 1.0fF. a) (6 pts) How does the following circuit operate? In a few words/charts, describe what it does Sketch the waveforms of nodes X and Q given the inputs shown below. Initial state of signals X and Q are unknown (mark with xxx as needed) until the impact of the input signals propagate. X Q b) (4 pts) How would you size each transistor? Match the 2:1 inverter (including the clock). Draw the sizing next to the schematic. Calculate the switch model equivalent resistance(s) (note the equation given at the front of the exam for Req, switch model capacitance(s) (based on your sizing), and worst-case propagation delay through the circuit, max(tpLH,tpLH), where output is taken from Q and inputs are IN1 and IN2. c) (4 pts) Calculate the energy consumption from the VDD power supply of this circuit for the input pattern and time duration given in the timing diagram (previous page). Ignore the energy consumption related to driving IN1, IN2, and CLK. State any assumptions you need to make to determine a numerical value.

Assumptions for all problems (unless specified otherwise, give answers to 10% ): VDD(V) VT0( V) Body effect γ(V 0.5 ) VDSAT( V) k’ (A/V 2) λ(V -1 ) NMOS 2.0 0.4 0 0.5 500×10-6 0 PMOS -0.4 0 -0.5 -200×10-6 0 1. All transistors have the minimum length (Lunit = 250 nm) 2. Ignore body effect and channel length modulation 3. A transistor's intrinsic capacitance (cap) and gate cap are equal, i.e., Cint = Cg, γ = 1 4. The unit-sized transistor has Wunit = Lunit and intrinsic cap Cint = Cg = Cdb = Csb = 1.0fF. 5. For the unit sized inverter, β = (W/L)P / (W/L N = WP/WN = 2, WN = L = 250 nm 6. The unit sized transmission gate has a resistance Req,tr = 10kΩ and all caps of 1.0fF. a) (6 pts) How does the following circuit operate? In a few words/charts, describe what it does Sketch the waveforms of nodes X and Q given the inputs shown below. Initial state of signals X and Q are unknown (mark with xxx as needed) until the impact of the input signals propagate. X Q b) (4 pts) How would you size each transistor? Match the 2:1 inverter (including the clock). Draw the sizing next to the schematic. Calculate the switch model equivalent resistance(s) (note the equation given at the front of the exam for Req, switch model capacitance(s) (based on your sizing), and worst-case propagation delay through the circuit, max(tpLH,tpLH), where output is taken from Q and inputs are IN1 and IN2. c) (4 pts) Calculate the energy consumption from the VDD power supply of this circuit for the input pattern and time duration given in the timing diagram (previous page). Ignore the energy consumption related to driving IN1, IN2, and CLK. State any assumptions you need to make to determine a numerical value.
Solution
0 0

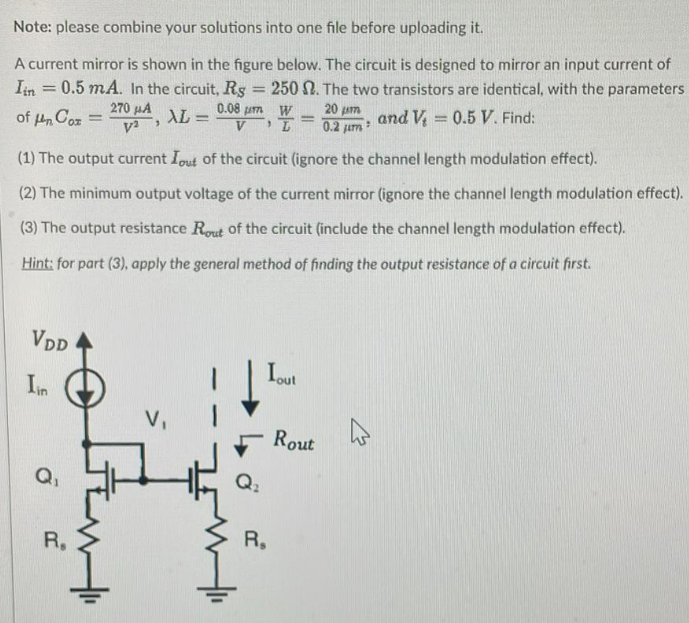

A current mirror is shown in the figure below. The circuit is designed to mirror an input current of Iin = 0.5 mA. In the circuit, RS = 250 Ω. The two transistors are identical, with the parameters of μnCox = 270 μA/V2, λL = 0.08 μm/V, W/L = 20 μm/0.2 μm, and Vt = 0.5 V. Find: (1) The output current Iout of the circuit (ignore the channel length modulation effect). (2) The minimum output voltage of the current mirror (ignore the channel length modulation effect). (3) The output resistance Rout of the circuit (include the channel length modulation effect). Hint: for part (3), apply the general method of finding the output resistance of a circuit first.
