For the following two stage CS-CS E-MOSFET amplifier circuit, derive i. (1 pt) The voltage gain, AV = VL VS (No Partial Credit) ii. (1 pt) The current gain, Ai = iL is (No Partial Credit)

For the following two stage CS-CS E-MOSFET amplifier circuit, derive i. (1 pt) The voltage gain, AV = VL VS (No Partial Credit) ii. (1 pt) The current gain, Ai = iL is (No Partial Credit)

Image text

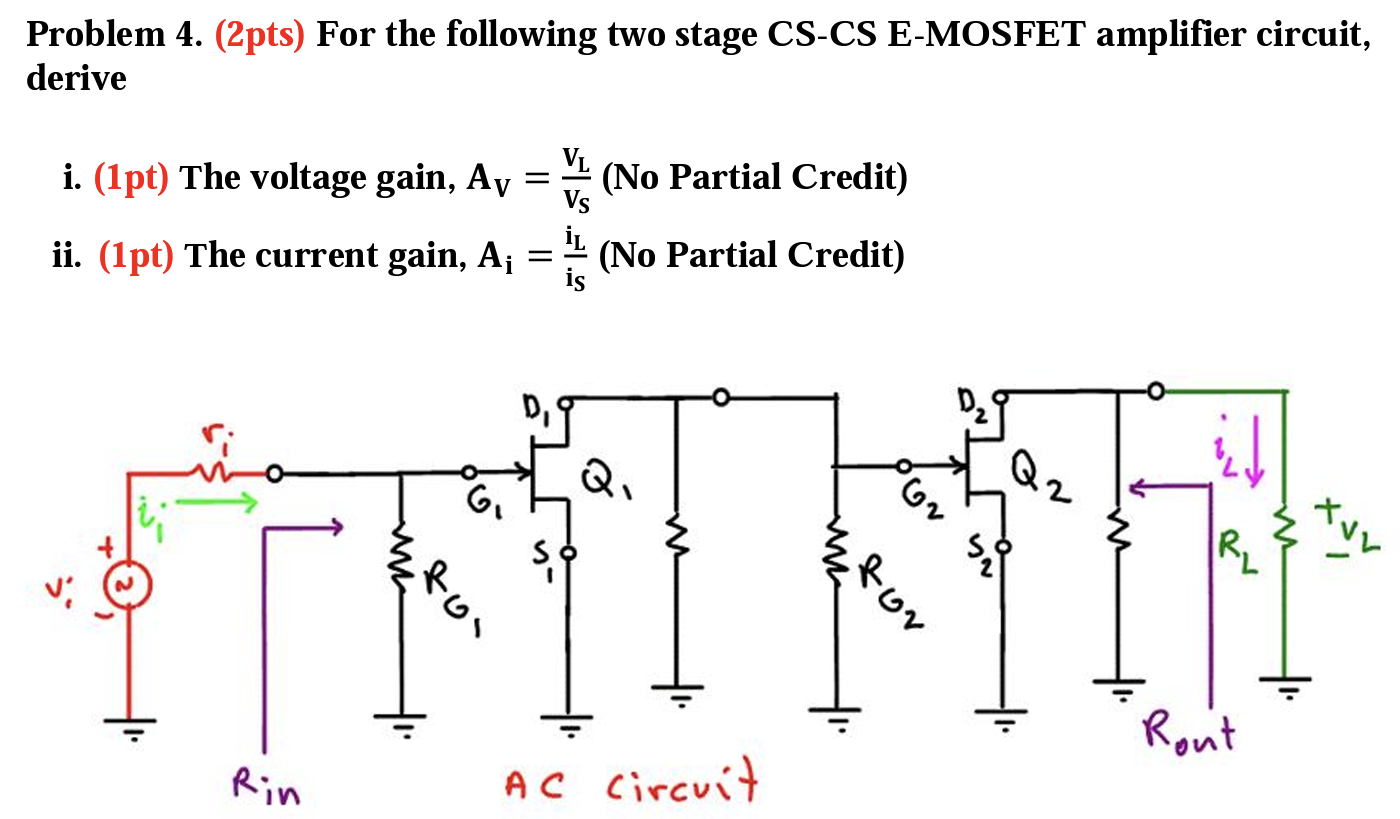

Problem 4. (2pts) For the following two stage CS-CS E-MOSFET amplifier circuit, derive i. (1pt) The voltage gain, A V = V L V S (No Partial Credit) ii. (1pt) The current gain, A i = i L i s (No Partial Credit)

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

An amplifier has an input resistance of 40 kΩ, an output resistance of 100 Ω, and a short-circuit current gain of 120,000 A/A. The amplifier is connected to a source voltage of 50 mV with a source resistance of Rs = 10 kΩ. The output of the amplifier is connected to a load resistance of 220 Ω. (a) Find current gain, Ai = io ii. (b) Find the voltage gain, Av = vo vi. (c) Find the voltage gain from source to load, Avs = vL vs. (d) Find the power gain, AP = PL PI.

Solution
0 0

Q6. For the amplifier circuit shown in Fig. Q6, the MOS Transistor Ml has the following parameters: Kn = 1 mAV−2, and VTHN = 1 V. MOS transistors M2 and M3 are identical and have the following parameters: Kp = 1 mAV−2, and VTHP = −1 V. Fig. Q6 (a) Perform the DC analysis of the amplifier circuit shown in Fig. Q6, and show that the DC gate voltage of Ml is 5 V. You need to explain briefly your answer. (b) Calculate the value of RS such that the drain current of MI is 4 mA. Verify that the Ml is operating in the saturation region. [ Ans: Rs = 0.5 kΩ] (c) Calculate the parameters, gm and ro, of the small-signal model of the transistor Ml. [Ans: gm, M1 = 4 mAV−1, and ro, M1 = ∞ ] (d) What is the configuration of this amplifier? (e) Calculate the values of Rin , and Rout . [Ans: Rin = 5 kΩ and Rout = 2 kΩ ] (f) Estimate the voltage gain, Av( = vout /vin ). [ Ans: AV = −1.78]

Solution
0 0

For the following NMOS amplifier (with another NMOS used as a pull-up). The following parameters are for both M1 and M2 transistors: Vdd = 2.5v Vbs = 0 Vt0 = 0.5v lambda = 0.11v-1 W/L = 10 unCox = 200.0 uA/V2 a) For VIN equal to 1.25 V, what region is transistor M1 operating in? Find VOUT . b) For VIN equal to 2.0 V, what region is transistor M1 operating in? Find VOUT. c) Create a small signal model for this circuit. Find open circuit gain AV. d) For VIN equal to 1.25 V, Find the value for open circuit voltage gain, AV. Hint: Need values for gM1, gM2, rOM1, rOM2; combine two small signal models, one for each transistor, to find the final small signal model.
