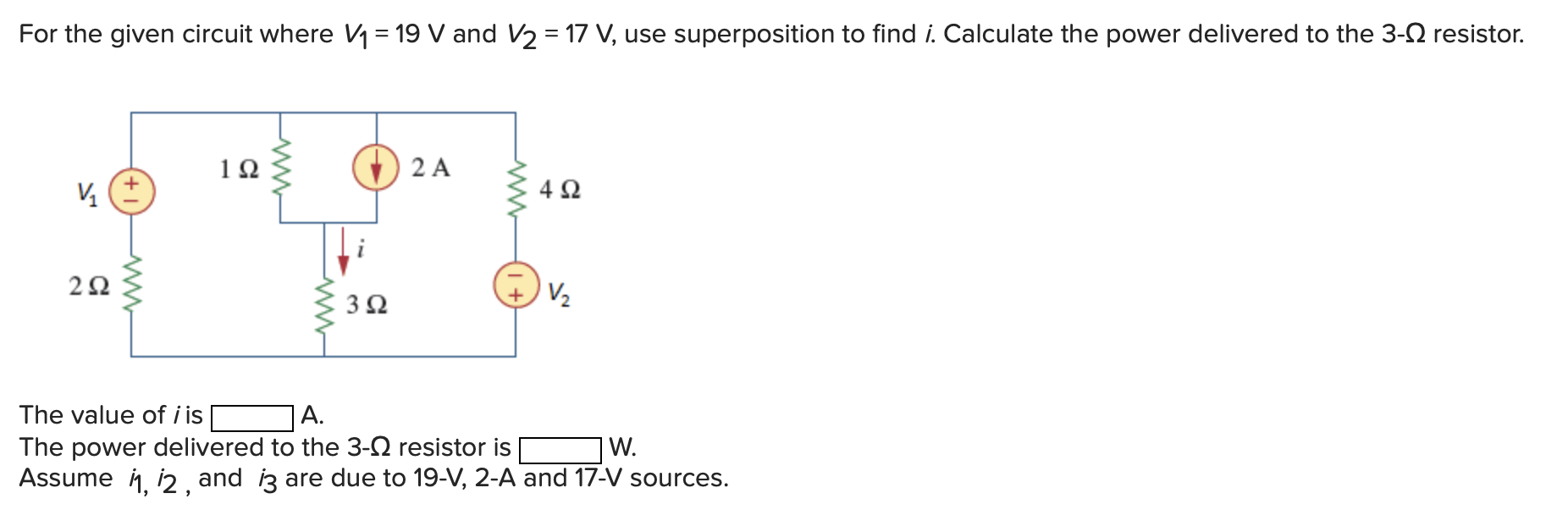

For the given circuit where V1 = 19 V and V2 = 17 V, use superposition to find i. Calculate the power delivered to the 3-Ω resistor. The value of i is A. The power delivered to the 3-Ω resistor is W. Assume i1, i2, and i3 are due to 19-V, 2-A and 17-V sources.
Image text
For the given circuit where V1 = 19 V and V2 = 17 V, use superposition to find i. Calculate the power delivered to the 3-Ω resistor. The value of i is A. The power delivered to the 3-Ω resistor is W. Assume i1, i2, and i3 are due to 19-V, 2-A and 17-V sources.
