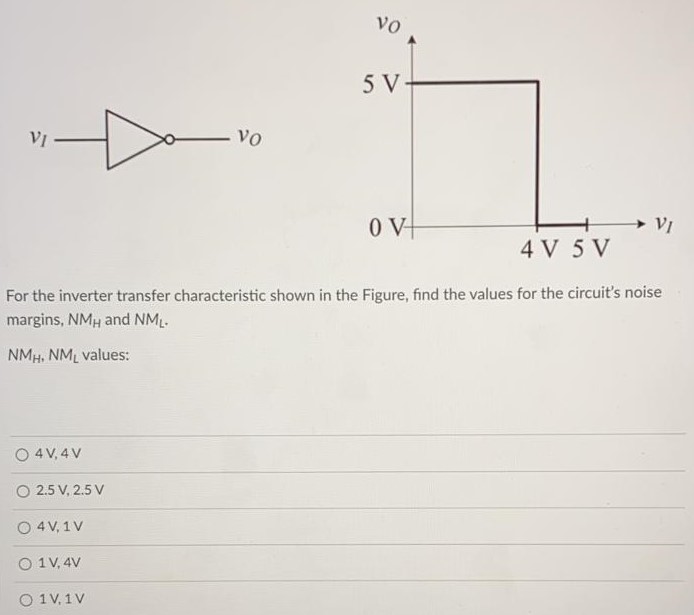

For the inverter transfer characteristic shown in the Figure, find the values for the circuit's noise margins, NMH and NML. NMH, NML values: 4 V, 4 V 2.5 V, 2.5 V 4 V, 1 V 1 V, 4 V 1 V, 1 V

For the inverter transfer characteristic shown in the Figure, find the values for the circuit's noise margins, NMH and NML. NMH, NML values: 4 V, 4 V 2.5 V, 2.5 V 4 V, 1 V 1 V, 4 V 1 V, 1 V

Image text
For the inverter transfer characteristic shown in the Figure, find the values for the circuit's noise margins, NMH and NML. NMH, NML values: 4 V, 4 V 2.5 V, 2.5 V 4 V, 1 V 1 V, 4 V 1 V, 1 V
