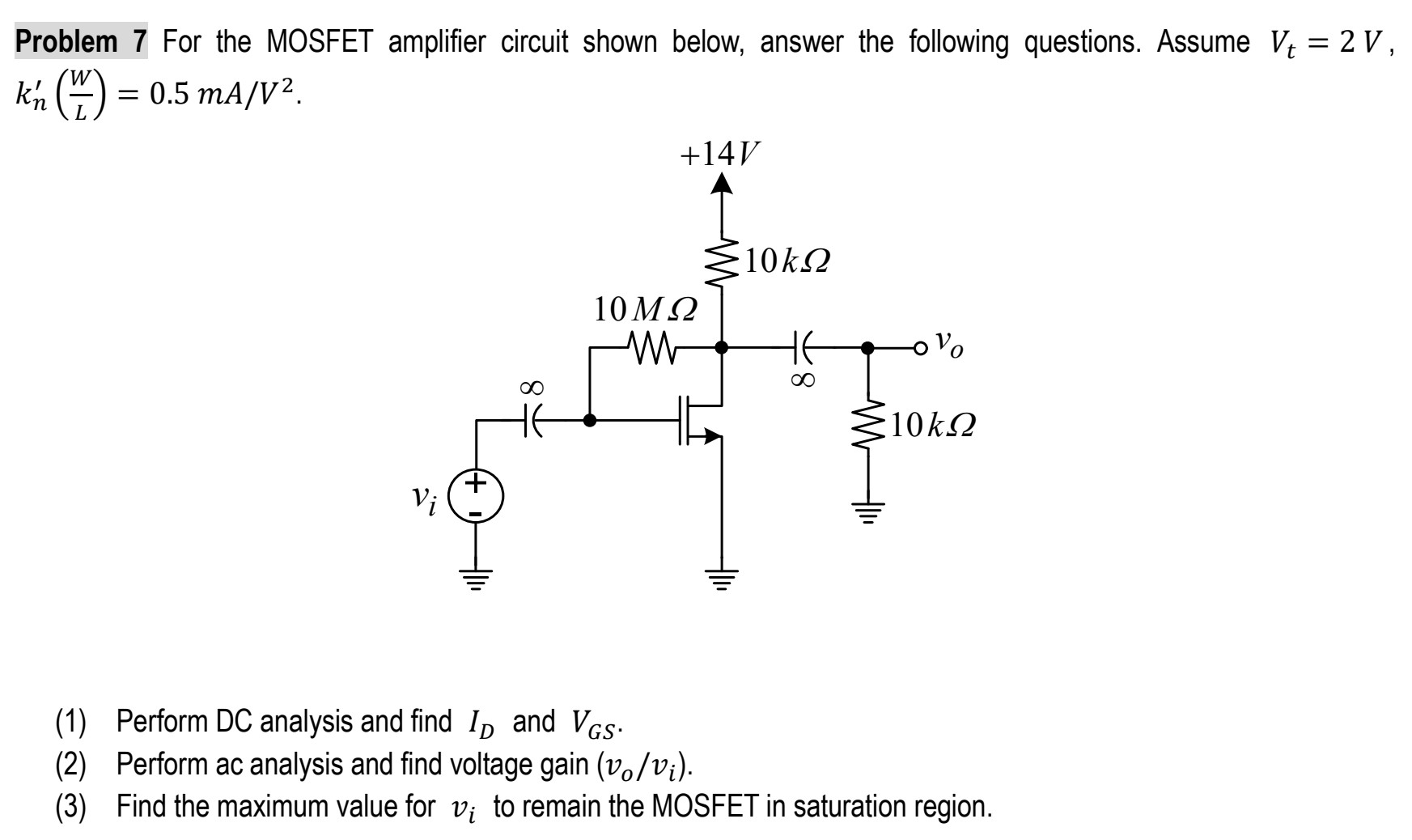

For the MOSFET amplifier circuit shown below, ID1

For the MOSFET amplifier circuit shown below, ID1

Image text
For the MOSFET amplifier circuit shown below, ID1

Detailed Answer

1 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up
  • Student Reviews:
  • (1)
  • Correct answers (1)
  • Complete solution (1)
  • Step-by-step solution (1)
  • Fully explained (1)

Similar/Related Questions

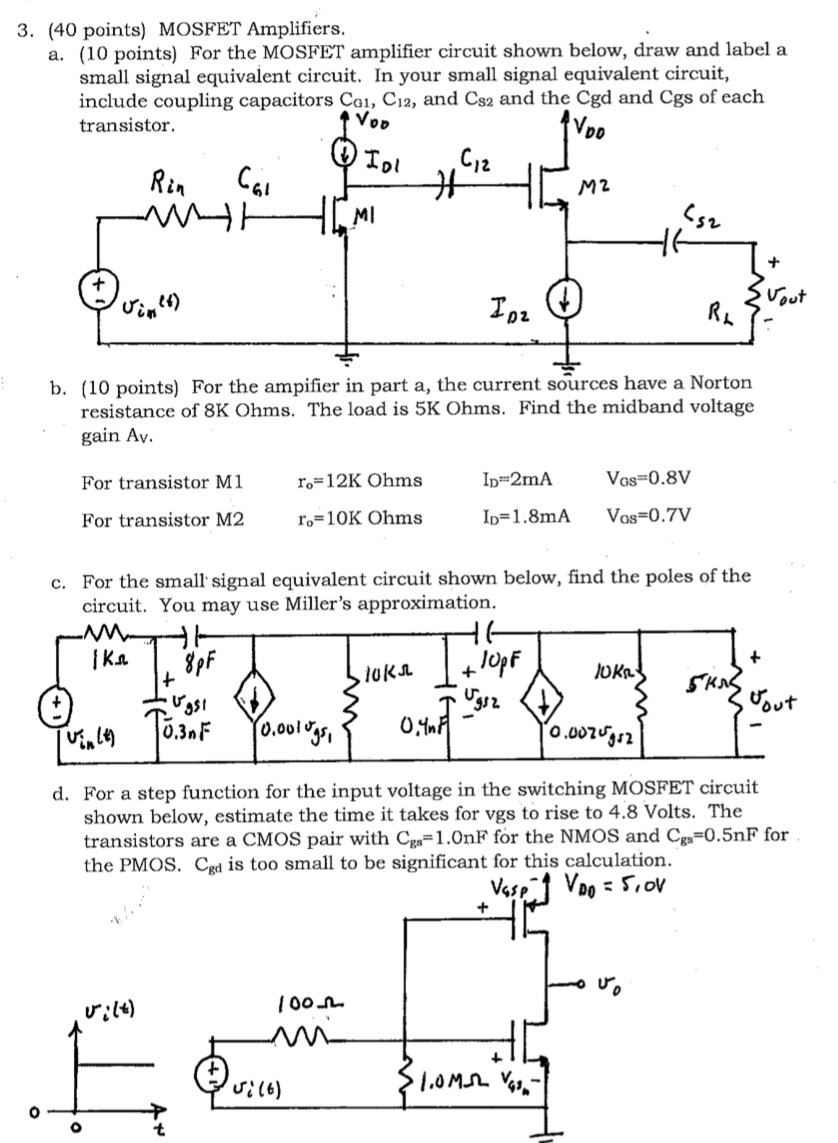

(40 points) MOSFET Amplifiers. a. (10 points) For the MOSFET amplifier circuit shown below, draw and label a small signal equivalent circuit. In your small signal equivalent circuit, include coupling capacitors CG1, C12, and CS2 and the Cgd and Cgs of each transistor. b. (10 points) For the ampifier in part a, the current sources have a Norton resistance of 8K Ohms. The load is 5K Ohms. Find the midband voltage gain Av. For transistor M1 ro = 12KOhms ID = 2mA VGS = 0.8V For transistor M2 ro = 10KOhms ID = 1.8mA VGS = 0.7V c. For the small signal equivalent circuit shown below, find the poles of the circuit. You may use Miller's approximation. d. For a step function for the input voltage in the switching MOSFET circuit shown below, estimate the time it takes for vgs to rise to 4.8 Volts. The transistors are a CMOS pair with Cgs = 1.0 nF for the NMOS and Cgs = 0.5 nF for the PMOS. Cgd is too small to be significant for this calculation.
Solution
0 0

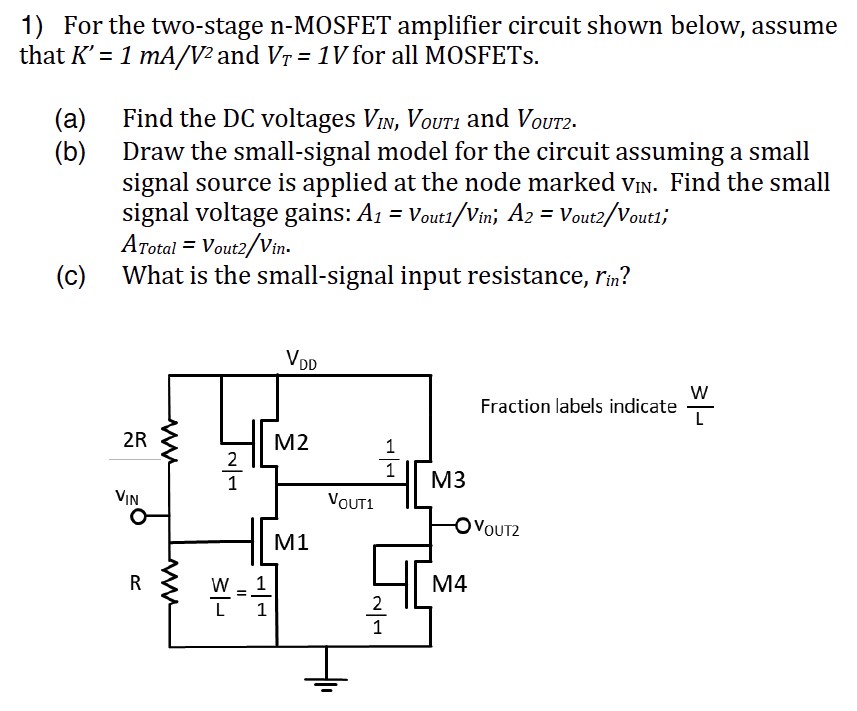

For the two-stage n-MOSFET amplifier circuit shown below, assume that K′ = 1mA/V2 and VT = 1V for all MOSFETs. (a) Find the DC voltages VIN, VOUT1 and VOUT2 . (b) Draw the small-signal model for the circuit assuming a small signal source is applied at the node marked vIN. Find the small signal voltage gains: A1 = vout1/vin; A2 = vout2/vout1; ATotal = vout2/vin . (c) What is the small-signal input resistance, rin?
Solution
0 0

For the MOSFET differential pair amplifier circuit shown below, ISS = 50 μA, RSS = 100 kΩ, μnCox = 500 μA/V2, μpCox = 100 μA/V2, λn = 0.05 V−1, λp = 0.05 V−1, (W/L)n = 10/2, and (W/L)p = 50/2: a) Determine the small-signal differential mode gain of the circuit, Av,DM. (5 points). b) Determine the small-signal common mode gain of the circuit, Av,CM. (5 points). c) Determine the small-signal common-mode to differential-mode conversion gain of the circuit, ACM−DM, if transistor M2 is mismatched such that (W/L)2 = 10/1.9. (10 points) d) Determine the common-mode rejection ratio of the circuit, CMRR. (5 points)
