Question

Notify Me Bookmark

For the MOSFET amplifier, given VDD = VSS = 9V, Rsig = 2Kohm, R3 = 10Kohm Assume R6 = 4.2Kohm, RD = 12Kohm and gm = 6.3ms determine the voltage gain Av (=vo/vsig ) in dB

For the MOSFET amplifier, given VDD = VSS = 9V, Rsig = 2Kohm, R3 = 10Kohm Assume R6 = 4.2Kohm, RD = 12Kohm and gm = 6.3ms determine the voltage gain Av (=vo/vsig ) in dB

Image text
For the MOSFET amplifier, given VDD = VSS = 9V, Rsig = 2Kohm, R3 = 10Kohm Assume R6 = 4.2Kohm, RD = 12Kohm and gm = 6.3ms determine the voltage gain Av (=vo/vsig ) in dB

Detailed Answer

1 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up
  • Student Reviews:
  • (1)
  • Correct answers (1)
  • Complete solution (1)
  • Step-by-step solution (1)
  • Fully explained (1)

Similar/Related Questions

For a prototype OpAmp below (differential amplifier cascaded with Common-emitter and Common-Drain), given VDD = 5 V, −VSS = −5 V, IREF = 0.8 mA, (W/L)1 = (W/L)5 = 5. design requires IO2 = 1.1 mA, IO3 = 2 mA, IO4 = 10 mA, assume all MOSFET transistors have λ = 0.02/V, and given gm2 = gm6 = gm7 = gm8 = 5 mS, gm9 = 1.1 ms. For MOSFET ro = (1/λ + |VDS|)/IDS At quiesent condition (v1 = v2 = vo = 0), VGS1 = VGS2 ≅ 2 V, Vds6 ≅ 3 V, Vds3 ≅ 6 V, and Vds4 = 5 V. For PNP transistor Q12, assume |VBE| ≅ 0.7 V, β = 100, VA = 50 V. Determine the CMRR for the OpAmp in dB if RD = 0.9 Kohm, rpi12 = 1.2 Kohm, ro8 = 56 Kohm, ro6 = 22 Kohm, ro2 = 27 Kohm.
Solution
0 0

ajiv Gandhi University of Knowledge Technologics (Department of Electronics and Communication Engineering) MONTHLY TEST - 2 Year/Sem: E2-SEMII Subject: AEC Subject Code:23 EC2101 Date: 17-10-2023 Time: 45 Minutes Max. Marks: 15 Marks Section-A ― Answer the following question. (1 X7 = 7 Marks)a) For the common source amplifier as shown in fig below, Given μaCnt(W/L) = 0.25 mA/V2, Vm = 1.5 V, VA = 50 v (use VA for riscalculation (x≠0) then. Find MILLER'S THEOREM i) small signal voltage gain ii) input resistance and output resistance iii) maximum allowable imput signal (OR)For the Differential amplifier as shown in fig below, Given μ2 Cin = 100 μA/V2, Vti = 1 V, +VDD = +5 V, −VSS = −5 V; Neglect Channel length modulation. Assume M1 and M2 are matched(identical) transistors. find V1, V2 and V3 for the following cases a) (W/L)1 = (W/L)2 = 20 b) (W/L)1 = 1.5(W/L)2 = 20; Section-B Answer the following question. (1 8 = 8 Marka)a)for the MOSFETS shown in circuit μ3 Cm = 50 μA/V2, Vm = 1 V, L = 1. μm, w = 10 μm then find the V 3 and 13 in the circuit. b) For the Differential amplifier given below, Given μnCn = 1 mA/V2, Vn

Solution
0 0

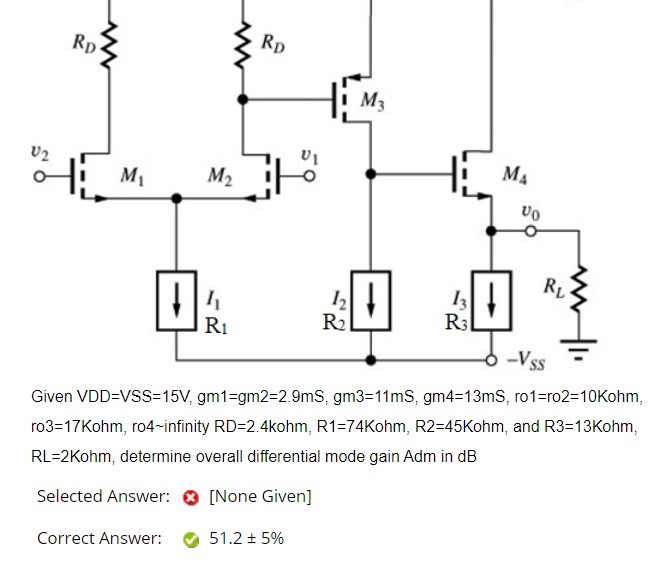

Given VDD = VSS = 15 V, gm1 = gm2 = 2.9 mS, gm3 = 11 mS, gm4 = 13 mS, ro1 = ro2 = 10 Kohm, ro3 = 17 Kohm, ro4 infinity RD = 2.4 kohm, R1 = 74 Kohm, R2 = 45 Kohm, and R3 = 13 Kohm, RL = 2 Kohm, determine overall differential mode gain Adm in dB Selected Answer: [None Given] Correct Answer: 51.2 ± 5%
