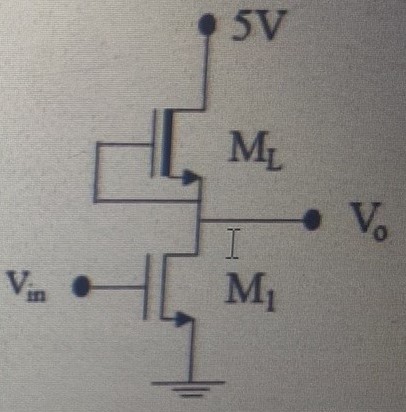

For the NMOS inverter with depletion load assume VDD = 5 V, VT1 = 1 V, and VTL = −1.2 V. For Vin = 0.63, VDG2 is a. 0.25 b. 4.00 c. 5.00 d. 0.00

For the NMOS inverter with depletion load assume VDD = 5 V, VT1 = 1 V, and VTL = −1.2 V. For Vin = 0.63, VDG2 is a. 0.25 b. 4.00 c. 5.00 d. 0.00

For the NMOS inverter with depletion load assume VDD = 5 V, VT1 = 1 V, and VTL = −1.2 V. For Vin = 0.63, VDG2 is a. 0.25 b. 4.00 c. 5.00 d. 0.00

Image text
For the NMOS inverter with depletion load assume V D D = 5 V , V T 1 = 1 V , and V T L = − 1.2 V . For V in = 0.63 , V DG2 is a. 0.25 b. 4.00 c. 5.00 d. 0.00

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

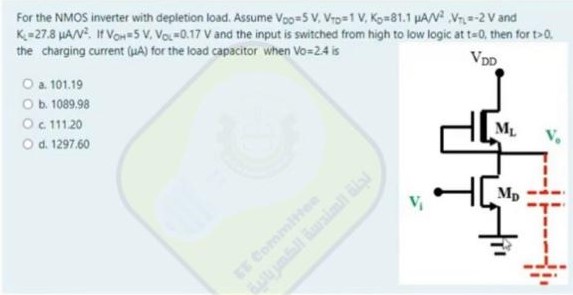

For the NMOS inverter with depletion load. Assume VDD = 5 V, VTD = 1 V, KD = 81.1 μA/V2, VTL = −2 V and KL = 27.8 μA/V2. If VOH = 5 V, VOL = 0.17 V and the input is switched from high to low logic at t = 0, then for t > 0, the charging current (μA) for the load capacitor when Vo = 2.4 is a. 101.19 b. 1089.98 c. 111.20 d. 1297.60

Solution
0 0

a) An NMOS inverter with depletion load is given on the right. Circuit Parameters VDD = 5 V, Transistor Parameters VTD = 1 V VTL = −1 V KNL = 25 μA/V2 KND = 100 μA/V2 The iD vs vDS behavior of the drive transistor is given below. The current has a linear behavior between 0 < vDS ≤ 4 V for VGS = 5 V. i. Draw the expected Voltage Transfer Characteristics (VTC) Vo vs VI. ii. Determine V0 L(min). iii. Determine the condition on V0 to set ML into SAT and MD into NONSAT when VI = 5 V. iv. Determine the noise margins. The NMOS transistor MD has the following idealized output characteristics.

Solution
0 0

The introduction to basic logic-circuit concepts that apply to MOSFET circuits is the most popular technology for implementation of digital systems. The two families of MOS logic circuits introduce are NMOS and CMOS (a) Given a NMOS inverter with a current source pull-up using the following specification data: μnCox = 50 μA/V2, μpCox = 25 μA/V2 VTn = −VTp = 1 V, VDD = 5 V, Ln = Lp = 1.5 μm λn = λp = 0.1 V−1 Find the width of the device so its saturation current is 200 μA when VB = 3 V. (5 marks) ii. Calculate the required width of the n-channel device so VOUT is 0.05 V when VIN is 5 V. (5 marks) (b) Consider a simple NMOS inverter with a resistor pull-up as shown in Figure 5 using the following specification data. i. Determine the value of pull-up resistor, R for the inverter. (4 marks) ii. Find the required value for fabrication width and length, (W/L). ( 6 marks) μnCox = 100 μA/V2, VTn = −VTp = 1 V V1 = 5 V, VDD = 5 V, VO = 50 mV, rDS = 50 ohm
Solution
