For the transistor in this question, assume VDD = 1.8 V, μnCox = 400 μAV-1, μpCox = 200 μAV^-1, Vthn = Vthp = 0.5 V, |λp| = 0 V-1) a) For the static CMOS logic gate in this figure. Please draw the pull down network. b) Please size the transistors so that the equivalent network (W/L)’s will be (W/L)neq = 4 and (W/L)peq = 8, (in the worst case) c) Please state the input transitions that yield the worst-case tPHL and tPLH delays. (Remember to take intermediate node capacitances into consideration) d) Please calculate the worst case logical effort for this gate.

For the transistor in this question, assume VDD = 1.8 V, μnCox = 400 μAV-1, μpCox = 200 μAV^-1, Vthn = Vthp = 0.5 V, |λp| = 0 V-1) a) For the static CMOS logic gate in this figure. Please draw the pull down network. b) Please size the transistors so that the equivalent network (W/L)’s will be (W/L)neq = 4 and (W/L)peq = 8, (in the worst case) c) Please state the input transitions that yield the worst-case tPHL and tPLH delays. (Remember to take intermediate node capacitances into consideration) d) Please calculate the worst case logical effort for this gate.

Image text
For the transistor in this question, assume VDD = 1.8 V, μnCox = 400 μAV-1, μpCox = 200 μAV^-1, Vthn = Vthp = 0.5 V, |λp| = 0 V-1) a) For the static CMOS logic gate in this figure. Please draw the pull down network. b) Please size the transistors so that the equivalent network (W/L)’s will be (W/L)neq = 4 and (W/L)peq = 8, (in the worst case) c) Please state the input transitions that yield the worst-case tPHL and tPLH delays. (Remember to take intermediate node capacitances into consideration) d) Please calculate the worst case logical effort for this gate.

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up

Similar/Related Questions

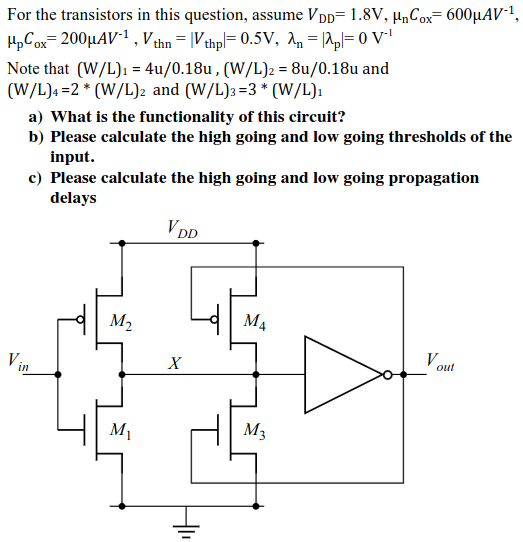

For the transistors in this question, assume VDD = 1.8 V, µnCox = 600µAV -1 , µpCox = 200µAV -1 , Vthn = |Vthp| = 0.5 V, λn = |λp| = 0 V-1 Note that (W/L)1 = 4u/0.18u,(W/L)2 = 8u/0.18u and (W/L)4 = 2 * ( W/L)2 and (W/L)3 = 3*( W/L)1 a) What is the functionality of this circuit? b) Please calculate the high going and low going thresholds of the input. c) Please calculate the high going and low going propagation delays
