For the waveform shown in Fig. 2. a. Express g(t) as a Fourier series. b. If f(t) in Problem 1 represents the voltage of a voltage source and g(t) represents the current supplied by this source, find the average power delivered by this source {use 3 harmonics for your calculation}

For the waveform shown in Fig. 2. a. Express g(t) as a Fourier series. b. If f(t) in Problem 1 represents the voltage of a voltage source and g(t) represents the current supplied by this source, find the average power delivered by this source {use 3 harmonics for your calculation}

Image text

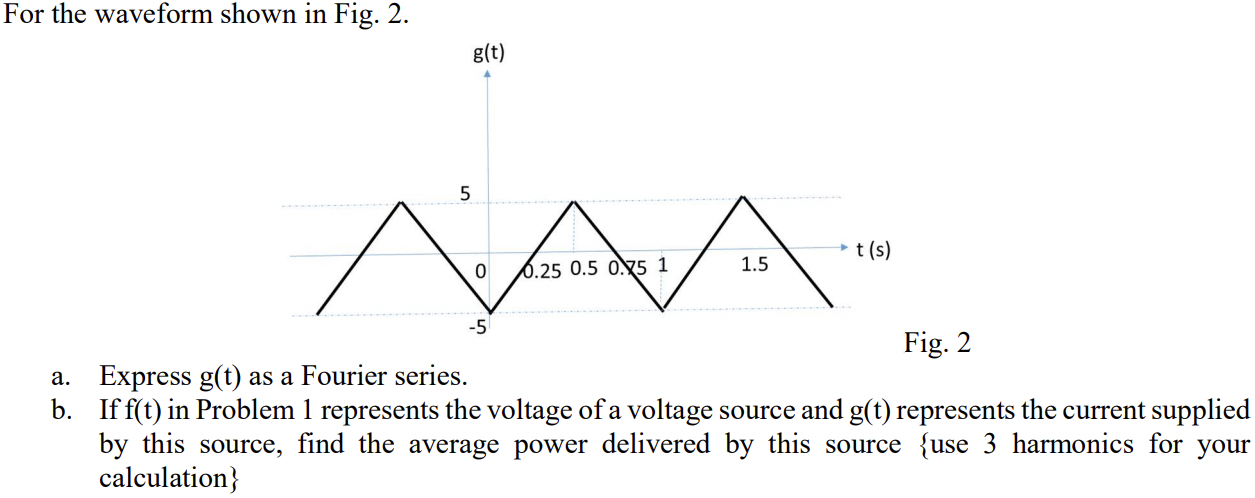

For the waveform shown in Fig. 2. Fig. 2 a. Express g ( t ) as a Fourier series. b. If f ( t ) in Problem 1 represents the voltage of a voltage source and g ( t ) represents the current supplied by this source, find the average power delivered by this source {use 3 harmonics for your calculation}

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

source configuration with an ideal dc current source connected to its collector as shown in Fig. 2. Assume that the transistor is biased in the forward-active region. Do not ignore ro for this problem. (a) Draw the small-signal diagram for this circuit and label the input and output voltages. (2 points) (b) Find the small-signal voltage gain vout/vin in terms of the small-signal parameters gm and ro. (3 points) (c) Express your answer to part (b) in terms of appropriate dc biasing and transistor model parameters. (3 points) (d) Explain why it would be difficult in practice to bias this circuit's de operating point such that the transistor is in the saturation region. (2 points)

Solution
0 0

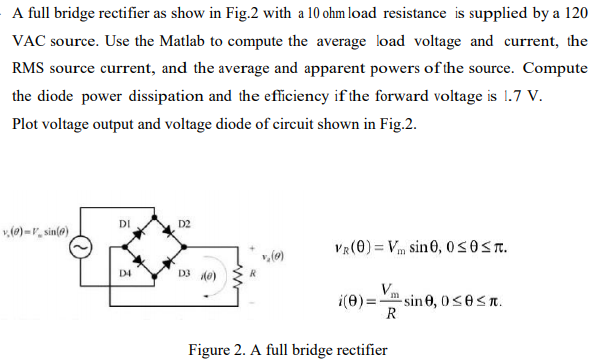

A full bridge rectifier as show in Fig. 2 with a 10 ohm load resistance is supplied by a 120 VAC source. Use the Matlab to compute the average load voltage and current, the RMS source current, and the average and apparent powers of the source. Compute the diode power dissipation and the efficiency if the forward voltage is 1.7 V. Plot voltage output and voltage diode of circuit shown in Fig. 2. vR(θ) = Vmsin⁡θ, 0 ≤ θ ≤ π. i(θ) = VmRsin⁡θ, 0 ≤ θ ≤ π. Figure 2. A full bridge rectifier
