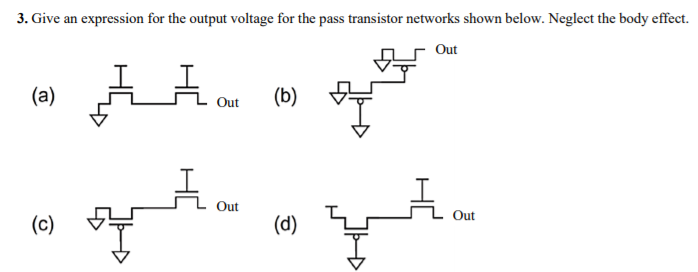

Give an expression for the output voltage for the pass transistor networks shown below. Neglect the body effect. (a) (b) (c) (d)

Give an expression for the output voltage for the pass transistor networks shown below. Neglect the body effect. (a) (b) (c) (d)

Image text
  1. Give an expression for the output voltage for the pass transistor networks shown below. Neglect the body effect. (a) (b) (c) (d)

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

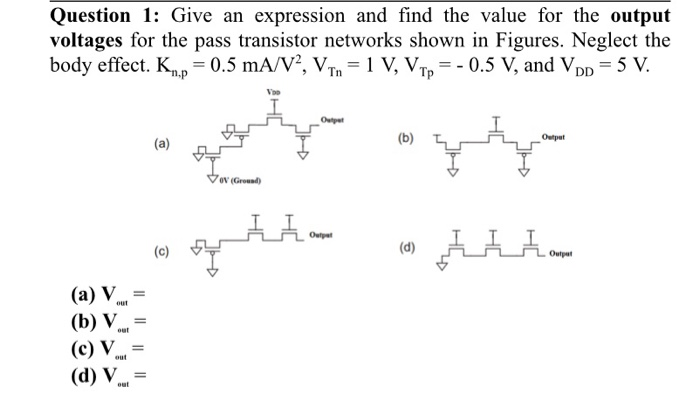

Question 1: Give an expression and find the value for the output voltages for the pass transistor networks shown in Figures. Neglect the body effect. Kn, p = 0.5 mA/V2, VTn = 1 V, VTpp = −0.5 V, and VDD = 5 V. (a) (b) (c) (d) (a) Vout = (b) Vout = (c) Vout = (d) Vout =
