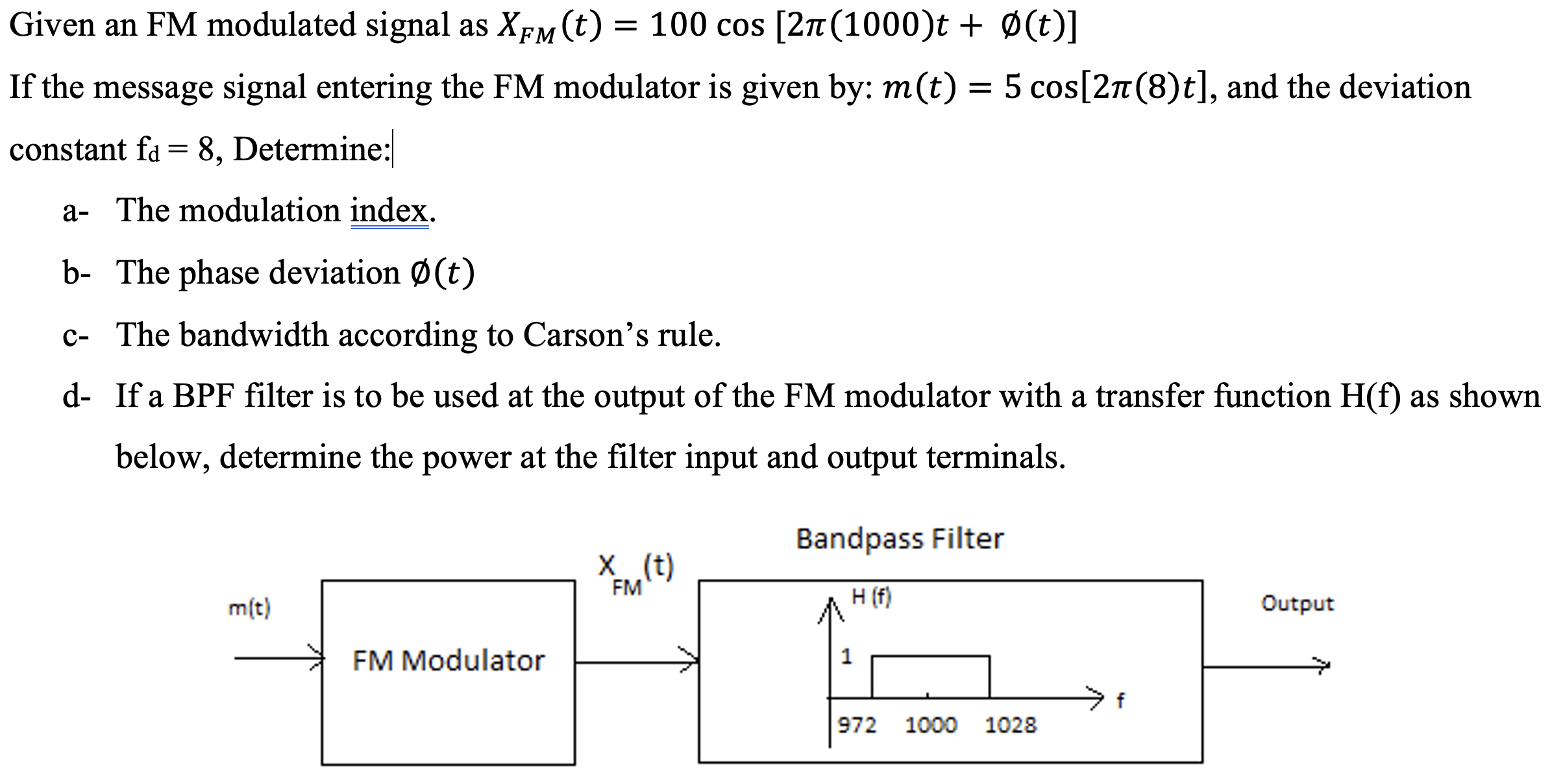

Given an FM modulated signal as XFM(t) = 100 cos⁡[2π(1000)t + ∅(t)] If the message signal entering the FM modulator is given by: m(t) = 5 cos⁡[2π(8)t], and the deviation constant fd = 8, Determine: a- The modulation index. b- The phase deviation ∅(t) c- The bandwidth according to Carson's rule. d- If a BPF filter is to be used at the output of the FM modulator with a transfer function H(f) as shown below, determine the power at the filter input and output terminals.

Given an FM modulated signal as XFM(t) = 100 cos⁡[2π(1000)t + ∅(t)] If the message signal entering the FM modulator is given by: m(t) = 5 cos⁡[2π(8)t], and the deviation constant fd = 8, Determine: a- The modulation index. b- The phase deviation ∅(t) c- The bandwidth according to Carson's rule. d- If a BPF filter is to be used at the output of the FM modulator with a transfer function H(f) as shown below, determine the power at the filter input and output terminals.

Image text
Given an FM modulated signal as X F M ( t ) = 100 cos ⁡ [ 2 π ( 1000 ) t + ∅ ( t ) ] If the message signal entering the FM modulator is given by: m ( t ) = 5 cos ⁡ [ 2 π ( 8 ) t ] , and the deviation constant f d = 8 , Determine: a- The modulation index. b- The phase deviation ∅ ( t ) c- The bandwidth according to Carson's rule. d- If a BPF filter is to be used at the output of the FM modulator with a transfer function H ( f ) as shown below, determine the power at the filter input and output terminals.

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

The modulating (or message) signal into an FM modulator is m(t) = 12cos⁡(30πt) where the frequency deviation constant of the modulator is kf = 20π. The frequency and amplitude of the carrier is 2000 Hz and 10 V, respectively. a) Determine the expression for the signal at the output of the FM modulator in the time domain along with its bandwidth. b) Determine maximum frequency deviation in Hertz. c) Determine the peak phase deviation in radians. d) If the channel noise is white noise with a power spectral density of η/2 = 10−7 W/Hz, calculate the SNR at the output of the demodulator. State your result in dB. e) The FM modulator is followed by an ideal bandpass filter having a center frequency of 2000 Hz and a bandwidth of 92 Hz. The gain of the filter is 1 in the passband. Determine the power of the modulated signal at the output of the filter.
Solution
0 0

To generate an angle-modulated signal, u(t), a message signal, m(t), is used to frequency modulate a carrier signal, c(t), where m(t) = 5cos⁡(20000πt) and c(t) = 100cos⁡(2πfct). If the peak-frequency deviation is 20 kHz and fc = 100 MHz, determine: (i) an expression for the frequency modulated signal, u(t); (ii) the modulation index, β, and the approximate bandwidth of the generated FM signal using Carson's rule; (iii) the amplitude of all signal components that have power level of at least 10% of the power of the unmodulated carrier component; (iv) the frequency of the signal components in c)(iii).
Solution
0 0

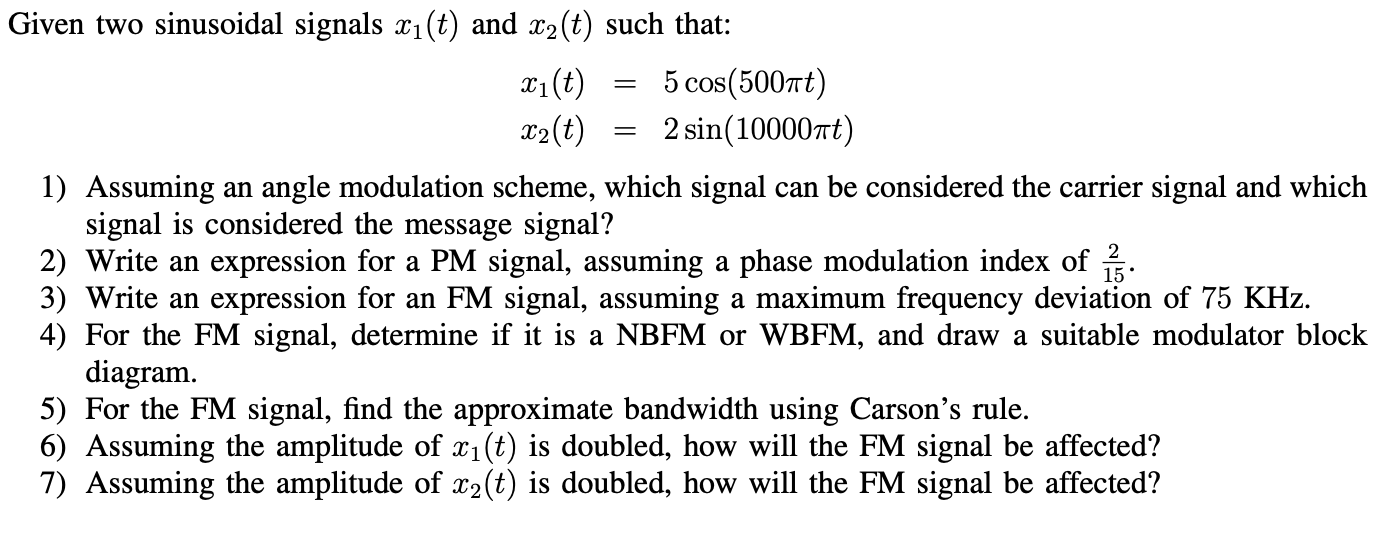

Given two sinusoidal signals x1(t) and x2(t) such that: x1(t) = 5cos⁡(500πt) x2(t) = 2sin⁡(10000πt)Assuming an angle modulation scheme, which signal can be considered the carrier signal and which signal is considered the message signal? Write an expression for a PM signal, assuming a phase modulation index of 2/15. Write an expression for an FM signal, assuming a maximum frequency deviation of 75 KHz. For the FM signal, determine if it is a NBFM or WBFM, and draw a suitable modulator block diagram. For the FM signal, find the approximate bandwidth using Carson's rule. Assuming the amplitude of x1(t) is doubled, how will the FM signal be affected? Assuming the amplitude of x2(t) is doubled, how will the FM signal be affected?
