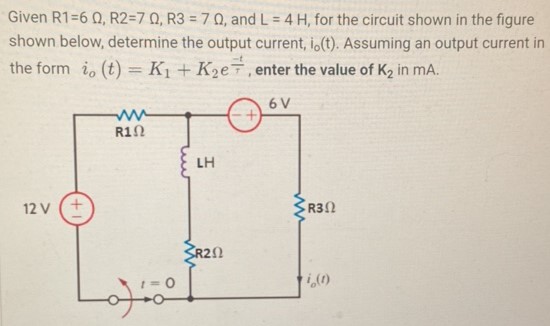

Given R1 = 6 Ω, R2 = 7 Ω, R3 = 7 Ω, and L = 4 H, for the circuit shown in the figure shown below, determine the output current, i0(t). Assuming an output current in the form io(t) = K1 + K2 e−tτ, enter the value of K2 in mA.
