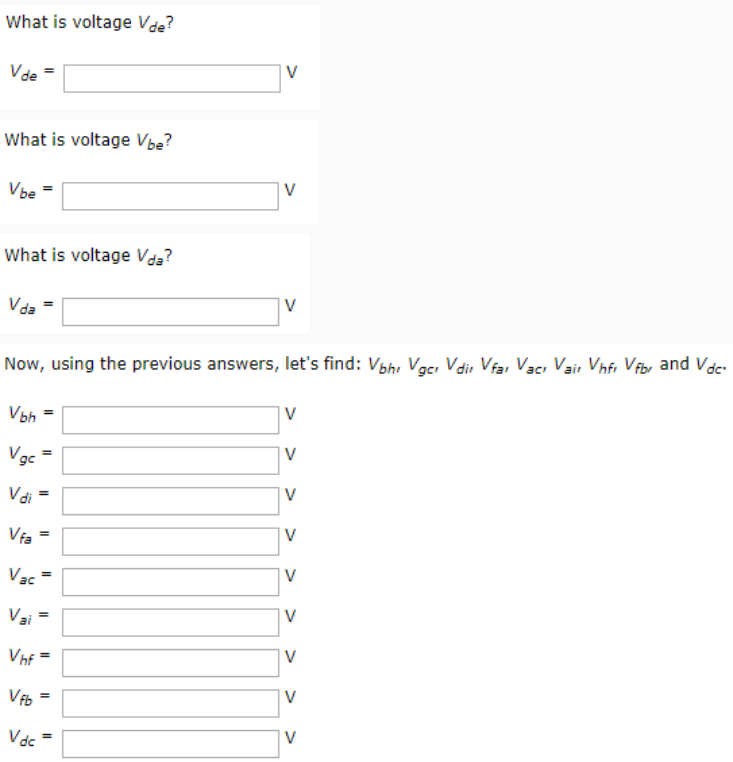

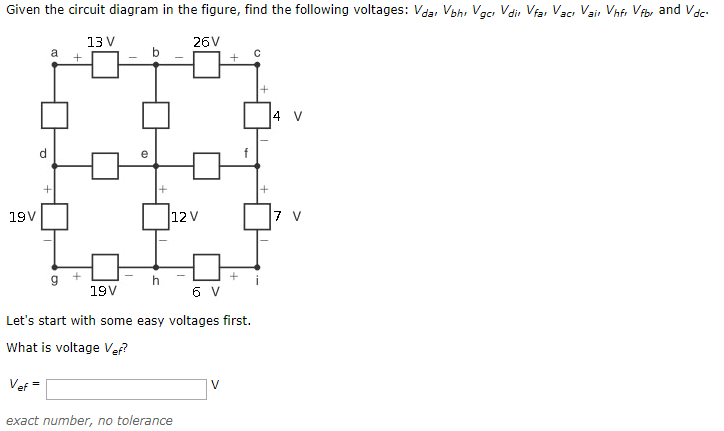

Given the circuit diagram in the figure, find the following voltages: Vda, Vbh, Vgc, Vdi, Vfa, Vac, Vai, Vhf, Vfb, and Vdc. Let's start with some easy voltages first. What is voltage Vef? What is voltage Vde? What is voltage Vbe? What is voltage Vda? Now, using the previous answers, let's find: Vbh, Vgc, Vdi, Vfa, Vac, Vai, Vhf, Vfb, and Vdc.

Given the circuit diagram in the figure, find the following voltages: Vda, Vbh, Vgc, Vdi, Vfa, Vac, Vai, Vhf, Vfb, and Vdc. Let's start with some easy voltages first. What is voltage Vef? What is voltage Vde? What is voltage Vbe? What is voltage Vda? Now, using the previous answers, let's find: Vbh, Vgc, Vdi, Vfa, Vac, Vai, Vhf, Vfb, and Vdc.

Given the circuit diagram in the figure, find the following voltages: Vda, Vbh, Vgc, Vdi, Vfa, Vac, Vai, Vhf, Vfb, and Vdc. Let's start with some easy voltages first. What is voltage Vef? What is voltage Vde? What is voltage Vbe? What is voltage Vda? Now, using the previous answers, let's find: Vbh, Vgc, Vdi, Vfa, Vac, Vai, Vhf, Vfb, and Vdc.

Image text
Given the circuit diagram in the figure, find the following voltages: Vda, Vbh, Vgc, Vdi, Vfa, Vac, Vai, Vhf, Vfb, and Vdc. Let's start with some easy voltages first. What is voltage Vef? What is voltage Vde? What is voltage Vbe? What is voltage Vda? Now, using the previous answers, let's find: Vbh, Vgc, Vdi, Vfa, Vac, Vai, Vhf, Vfb, and Vdc.
