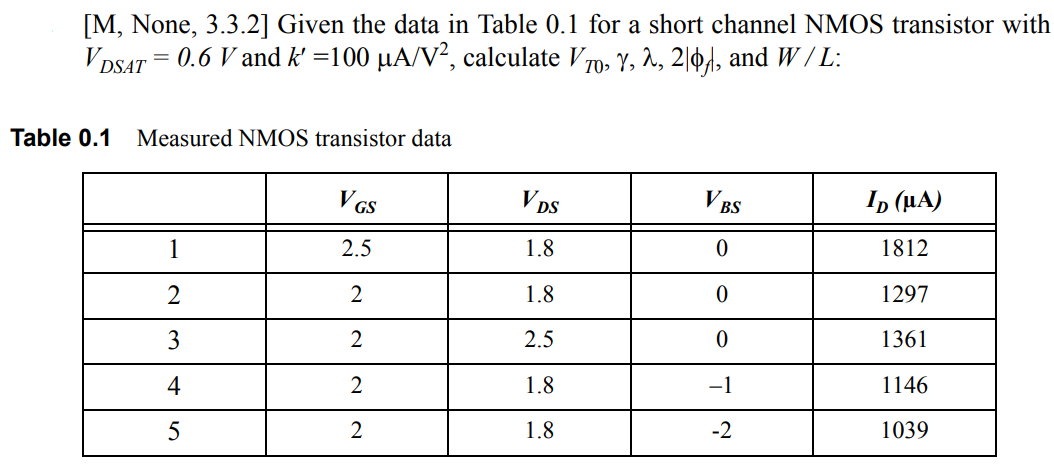

Given the data in Table 0.1 for a short channel NMOS transistor with VDSAT = 0.6 V and k’ = 100 µA/V2, calculate VT0, γ, λ, 2|φf|, and W/L: Table 0.1 Measured NMOS transistor data

Given the data in Table 0.1 for a short channel NMOS transistor with VDSAT = 0.6 V and k’ = 100 µA/V2, calculate VT0, γ, λ, 2|φf|, and W/L: Table 0.1 Measured NMOS transistor data

Image text
Given the data in Table 0.1 for a short channel NMOS transistor with VDSAT = 0.6 V and k’ = 100 µA/V2, calculate VT0, γ, λ, 2|φf|, and W/L: Table 0.1 Measured NMOS transistor data

Explanation & Steps

Experimental data related to NMOS transistor is given in the question. This data is to be used to determine different parameters like threshold voltage, channel length modulation parameter, width-to-length ratio and body bias effect parameter of NMOS transistor.

First of all determine the mode of operation of NMOS transistor for all data points using the MOSFET short-channel model equations. NMOS can be biased in triode, saturation and velocity saturation mode.

Then carefully use combinations of different rows such that the whole equation has only one variable. In this way, all parameters of NMOS transistor can be calculated.

Detailed Answer

2 0
