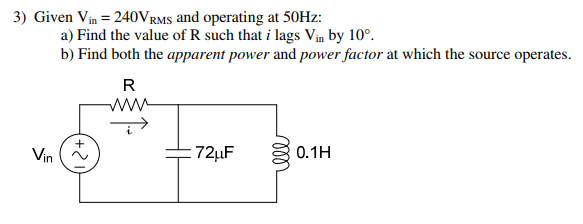

Given Vin = 240VRMS and operating at 50Hz: a) Find the value of R such that i lags Vin by 10∘. b) Find both the apparent power and power factor at which the source operates.

Given Vin = 240VRMS and operating at 50Hz: a) Find the value of R such that i lags Vin by 10∘. b) Find both the apparent power and power factor at which the source operates.

Image text
  1. Given V in = 240 V RMS and operating at 50 H z : a) Find the value of R such that i lags V in by 10 ∘ . b) Find both the apparent power and power factor at which the source operates.

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

For the circuit shown in Figure 2, VDD = 5 V, and transistors M1 and M2 have properties µnCox = 200µA/V2, (W/L) = 10, Vt0 = 0.7 V, and λ = 0. You may neglect the body effect below, unless you are specifically asked to consider it. Figure 2. Circuit for Problem 2. a) Draw the circuit above, and label the drain, gate, source, and bulk nodes for both transistors, using labels VD1, VG1, VS1, and VB1 for the drain, gate, source, and bulk nodes of device M1, respectively, and similarly for M2. In total, there should be 8 labels in your schematic. For this part, assume the transistors are in saturation. b) Determine the valid input range for the circuit under consideration; that is, determine the range on the input voltage Vin such that transistors M1 and M2 are operating in the saturation region. Note that, in your analysis, you are not constrained to Vin values between 0 V and VDD, inclusive; e.g., if Vin = 100 V keeps both of the transistors in saturation, then Vin = 100 V should be included in your range of valid input voltages. Your answer to this part should take the form Vin,low ≤ Vin ≤ Vin,high ; hopefully, it is obvious that you are being asked to provide numerical answers for the lower- and upper-bounds Vin,low and Vin,high , respectively. c) For the valid input range that you determined in part (b), determine the corresponding output voltage range; that is, determine Vout,low ≤ Vout ≤ Vout,high when the input is constrained to Vin,low ≤ Vin ≤ Vin,high. . As before, you should report numerical values for the lower- and upper-bounds Vout,low and Vout,high, , respectively. d) Determine the "on voltage" VON2 (or, as in the Sedra/Smith textbook, the "overdrive voltage") and drain current ID2 of transistor M2 over the range of valid input voltages. Also, determine the drain current ID1 of M1 over the valid input range. e) If you were to consider it, would any of the transistors in the circuit above be affected by the body effect? If "yes," then list the device (or, devices, as the case may be). Qualitatively speaking, how would your answers to parts (b) and (c) change if you were to take the body effect into account? Explain your reasoning.
Solution
0 0

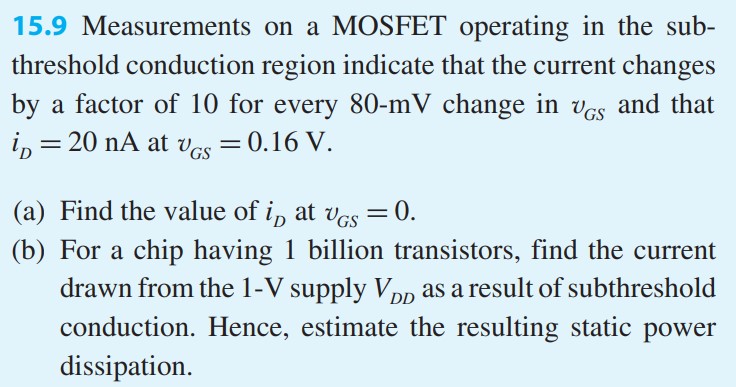

Measurements on a MOSFET operating in the sub-threshold conduction region indicate that the current changes by a factor of 10 for every 80-mV change in vGS and that iD = 20 nA at vGS = 0.16 V. (a) Find the value of iD at vGS = 0. (b) For a chip having 1 billion transistors, find the current drawn from the 1-V supply VDD as a result of subthreshold conduction. Hence, estimate the resulting static power dissipation.
Solution
1 0

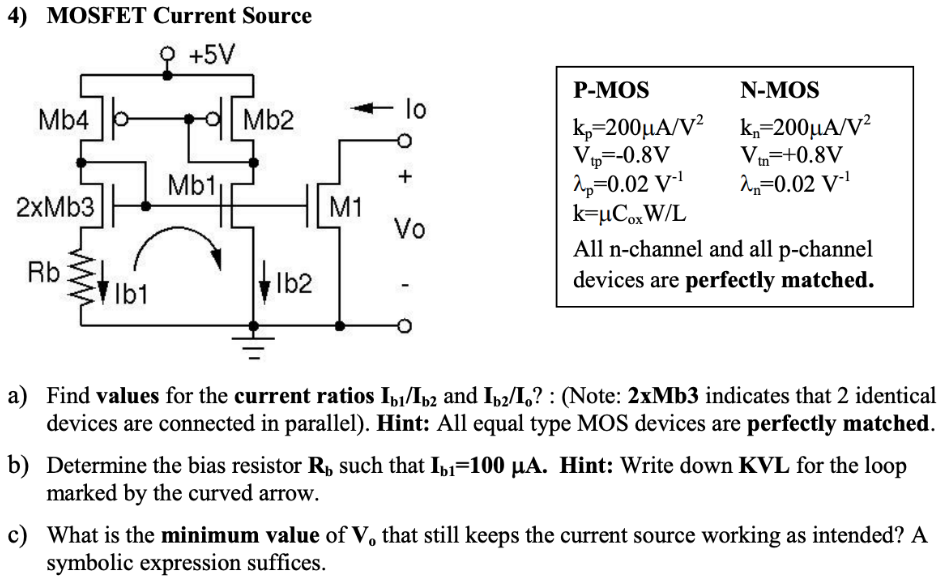

a) Find values for the current ratios Ib1/Ib2 and Ib2/Io? : (Note: 2xMb3 indicates that 2 identical devices are connected in parallel). Hint: All equal type MOS devices are perfectly matched. b) Determine the bias resistor Rb such that Ib1 = 100 µA. Hint: Write down KVL for the loop marked by the curved arrow. c) What is the minimum value of V0 that still keeps the current source working as intended? A symbolic expression suffices. P-MOS N-MOS kp = 200 µA/V2 kn = 200 µA/V2 Vtp = -0.8 V Vtn = +0.8 V λp = 0.02 V-1 λn = 0.02 V-1 k = µCoxW/L All n-channel and all p-channel devices are perfectly matched.
