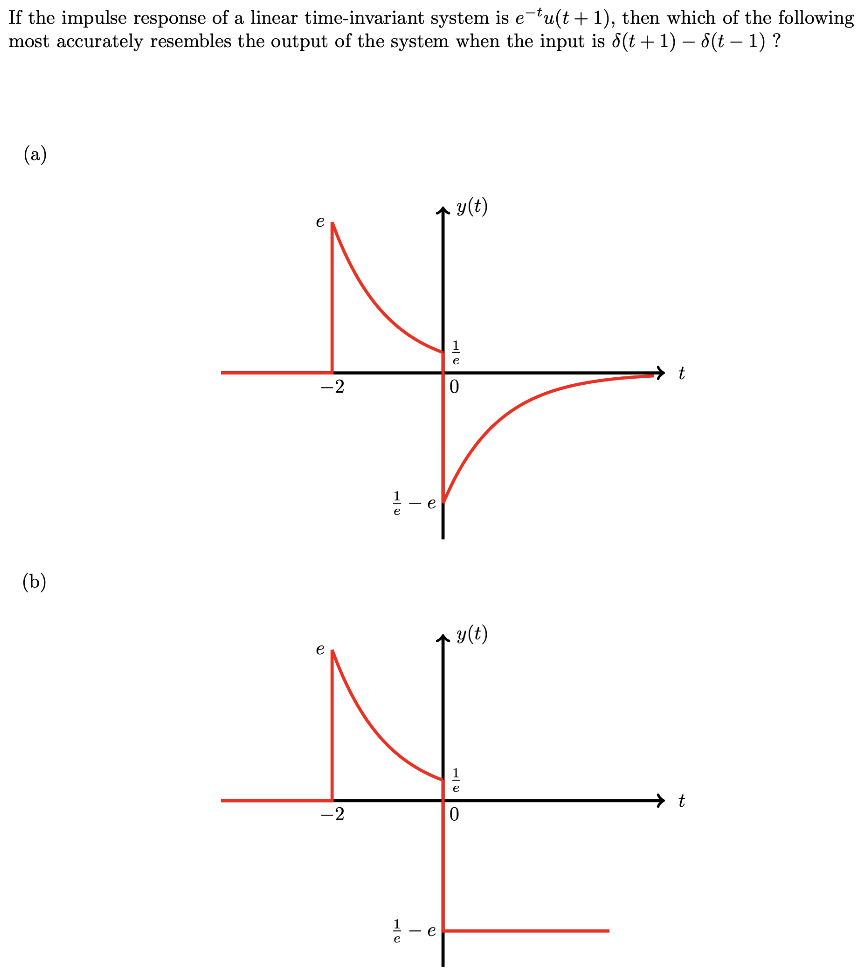

If the impulse response of a linear time-invariant system is e−tu(t + 1), then which of the following most accurately resembles the output of the system when the input is δ(t+1) − δ(t−1) ? (a) (b)
Image text
If the impulse response of a linear time-invariant system is , then which of the following most accurately resembles the output of the system when the input is ?
(a)
(b)
