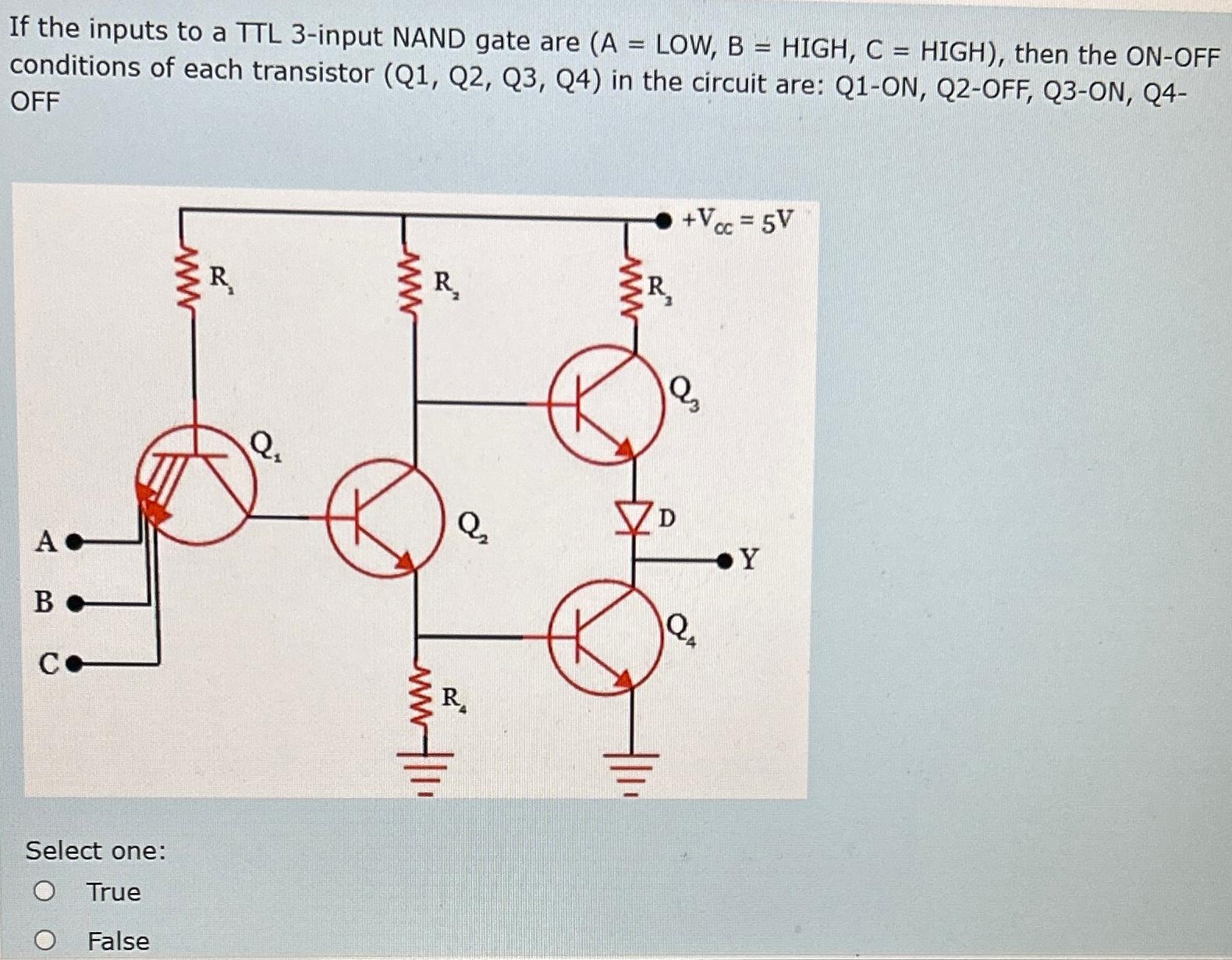

If the inputs to a TTL 3-input NAND gate are (A = LOW, B = HIGH, C = HIGH), then the ON-OFF conditions of each transistor (Q1, Q2, Q3, Q4) in the circuit are: Q1−ON, Q2−OFF, Q3−ON, Q4− OFF Select one: True False

If the inputs to a TTL 3-input NAND gate are (A = LOW, B = HIGH, C = HIGH), then the ON-OFF conditions of each transistor (Q1, Q2, Q3, Q4) in the circuit are: Q1−ON, Q2−OFF, Q3−ON, Q4− OFF Select one: True False

Image text
If the inputs to a TTL 3-input NAND gate are ( A = L O W , B = H I G H , C = H I G H ) , then the ON-OFF conditions of each transistor (Q1, Q2, Q3, Q4) in the circuit are: Q 1 − O N , Q 2 − O F F , Q 3 − O N , Q 4 − O F F
Select one: True False

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

Charge sharing is an important problem in dynamic circuits. Switching exposes a fixed amount of charge to a different capacitive environment. This results in node voltage change. After pre-charge stage, the output node voltage of the dynamic logic circuit in Figure 1 will be equal to VDD. During the evaluate phase, assume A = 1 and B=0. Output node will not connect to ground but the total charge on the output node (Q = C.V) will be shared by parasitic capacitance (C1) and the load capacitance (CL). So that the output voltage will drop and be equal to M1 source voltage. a. The circuit is Figure 1 is pre-charged with VDD = 3V. During evaluation stage, M1 turns on and M2 is off (A=1 and B=0). CL = 250fF, C1 = 125fF and Vt0,n=0.55V. Calculate the final voltage after charge sharing. Is M1 still conducting at this voltage? b. Repeat question a for C1 = 40fF. Calculate the final voltage after charge sharing. Is M1 still conducting at this voltage? If not, what is the value of the output voltage at this scenario? c. With A = 1 and B = 0, the output of the circuit in Fig 1 should be logic high. However, you have seen that logic high does not mean VDD for this example. Output voltage depends on the parasitic capacitance at the source node of M2. For a dynamic 2 input NAND gate, what is the maximum value that the Figure 1 output voltage can reach when A= 1 and B = 0?

Solution
0 0

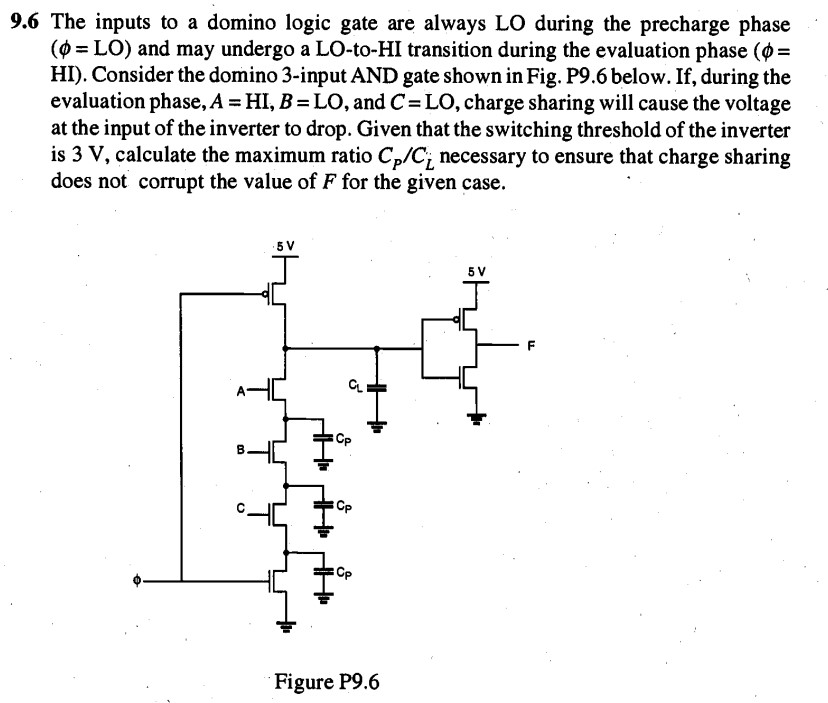

The inputs to a domino logic gate are always LO during the precharge phase ( phi = LO) and may undergo a LO-to-HI transition during the evaluation phase ( phi = HI). Consider the domino 3-input AND gate shown in Fig. P9.6 below. If, during the evaluation phase, A = HI, B = LO, and C = LO, charge sharing will cause the voltage at the input of the inverter to drop. Given that the switching threshold of the inverter is 3 V, calculate the maximum ratio CP/CL necessary to ensure that charge sharing does not corrupt the value of F for the given case.
Solution
0 0

In the dynamic logic circuit shown below, all the transistors have the minimum channel length, and their sizes (widths) are marked. The inverter at the output is a standard static CMOS inverter with a PMOS size of 2 and an NMOS size of 1 . For a unit-sized NMOS or PMOS transistor, the intrinsic capacitance at its drain or source terminal is CD, and the capacitance at its gate is CG. For unit-sized NMOS and PMOS transistors, their onresistances are RN and RP, respectively. CD = CG = 1 fF and RP = 2 RN = 2 kΩ. (a) Express y as a Boolean function of the inputs A, B, C and D in the evaluation phase (CLK = 1). (b) Find the capacitances at nodes y, a, b and c, respectively. (c) Let A = B = D = 1 and C = 0 and suppose nodes a, b and c are at 0 V in the pre-charge phase (CLK = 0). Estimate the time it takes for the voltage at y to decrease from VDD to VDD/2 in the evaluation phase. (d) Repeat (c) if nodes a, b and c are at VDD in the pre-charge phase. (e) If the inputs are C = 1 and A = B = D = 0 and suppose nodes a, b and c are at 0 V in the pre-charge phase. Considering the charge sharing effect, what is the voltage at node y in the evaluation phase? It is known VDD = 2.5 V, VTN = 0.5 V and the body effect of the transistors can be ignored.
