If Va = −3 V, and Vt = 3.1 V, what is the operating region of the n-channel MOSFET? Triode/ Ohmic region. Saturation region. Cut-off. None of the above. For example, if your transistor is operating in the saturation region then provide the integer 2 as your answer. For cases like VGS = VT, answer 4.

If Va = −3 V, and Vt = 3.1 V, what is the operating region of the n-channel MOSFET? Triode/ Ohmic region. Saturation region. Cut-off. None of the above. For example, if your transistor is operating in the saturation region then provide the integer 2 as your answer. For cases like VGS = VT, answer 4.

Image text

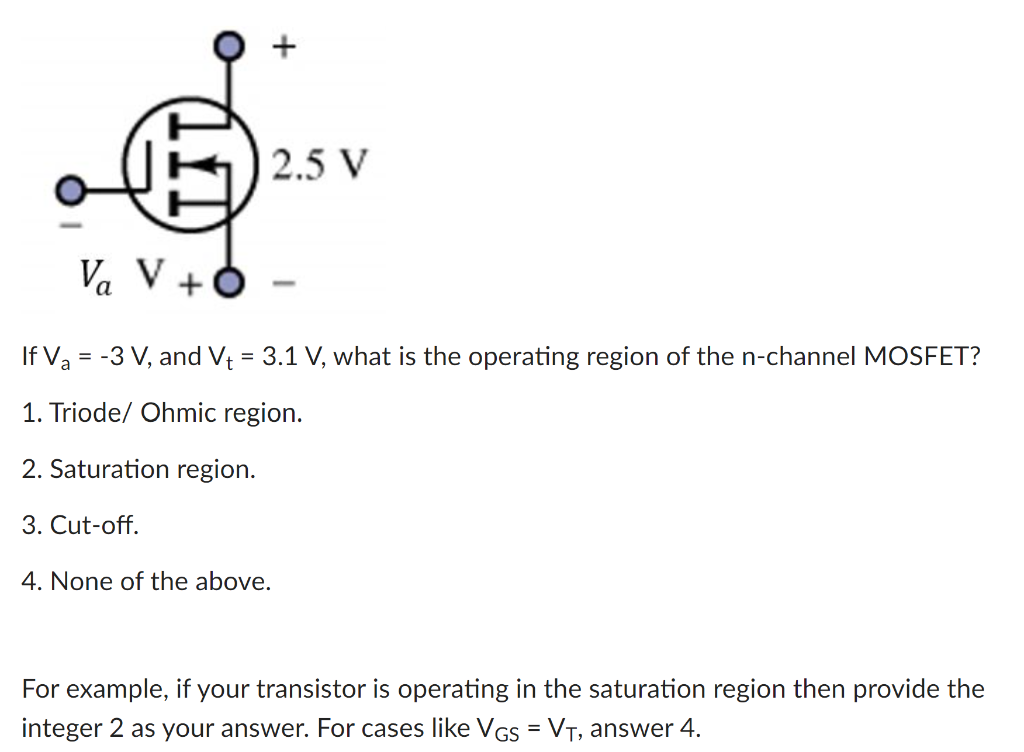

If V a = − 3 V , and V t = 3.1 V , what is the operating region of the n -channel MOSFET?
  1. Triode/ Ohmic region.
  2. Saturation region.
  3. Cut-off.
  4. None of the above.
For example, if your transistor is operating in the saturation region then provide the integer 2 as your answer. For cases like V G S = V T , answer 4.

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

Q6. For the amplifier circuit shown in Fig. Q6, the MOS Transistor Ml has the following parameters: Kn = 1 mAV−2, and VTHN = 1 V. MOS transistors M2 and M3 are identical and have the following parameters: Kp = 1 mAV−2, and VTHP = −1 V. Fig. Q6 (a) Perform the DC analysis of the amplifier circuit shown in Fig. Q6, and show that the DC gate voltage of Ml is 5 V. You need to explain briefly your answer. (b) Calculate the value of RS such that the drain current of MI is 4 mA. Verify that the Ml is operating in the saturation region. [ Ans: Rs = 0.5 kΩ] (c) Calculate the parameters, gm and ro, of the small-signal model of the transistor Ml. [Ans: gm, M1 = 4 mAV−1, and ro, M1 = ∞ ] (d) What is the configuration of this amplifier? (e) Calculate the values of Rin , and Rout . [Ans: Rin = 5 kΩ and Rout = 2 kΩ ] (f) Estimate the voltage gain, Av( = vout /vin ). [ Ans: AV = −1.78]

Solution
0 0

For the circuit shown in Figure 2, VDD = 5 V, and transistors M1 and M2 have properties µnCox = 200µA/V2, (W/L) = 10, Vt0 = 0.7 V, and λ = 0. You may neglect the body effect below, unless you are specifically asked to consider it. Figure 2. Circuit for Problem 2. a) Draw the circuit above, and label the drain, gate, source, and bulk nodes for both transistors, using labels VD1, VG1, VS1, and VB1 for the drain, gate, source, and bulk nodes of device M1, respectively, and similarly for M2. In total, there should be 8 labels in your schematic. For this part, assume the transistors are in saturation. b) Determine the valid input range for the circuit under consideration; that is, determine the range on the input voltage Vin such that transistors M1 and M2 are operating in the saturation region. Note that, in your analysis, you are not constrained to Vin values between 0 V and VDD, inclusive; e.g., if Vin = 100 V keeps both of the transistors in saturation, then Vin = 100 V should be included in your range of valid input voltages. Your answer to this part should take the form Vin,low ≤ Vin ≤ Vin,high ; hopefully, it is obvious that you are being asked to provide numerical answers for the lower- and upper-bounds Vin,low and Vin,high , respectively. c) For the valid input range that you determined in part (b), determine the corresponding output voltage range; that is, determine Vout,low ≤ Vout ≤ Vout,high when the input is constrained to Vin,low ≤ Vin ≤ Vin,high. . As before, you should report numerical values for the lower- and upper-bounds Vout,low and Vout,high, , respectively. d) Determine the "on voltage" VON2 (or, as in the Sedra/Smith textbook, the "overdrive voltage") and drain current ID2 of transistor M2 over the range of valid input voltages. Also, determine the drain current ID1 of M1 over the valid input range. e) If you were to consider it, would any of the transistors in the circuit above be affected by the body effect? If "yes," then list the device (or, devices, as the case may be). Qualitatively speaking, how would your answers to parts (b) and (c) change if you were to take the body effect into account? Explain your reasoning.
Solution
0 0

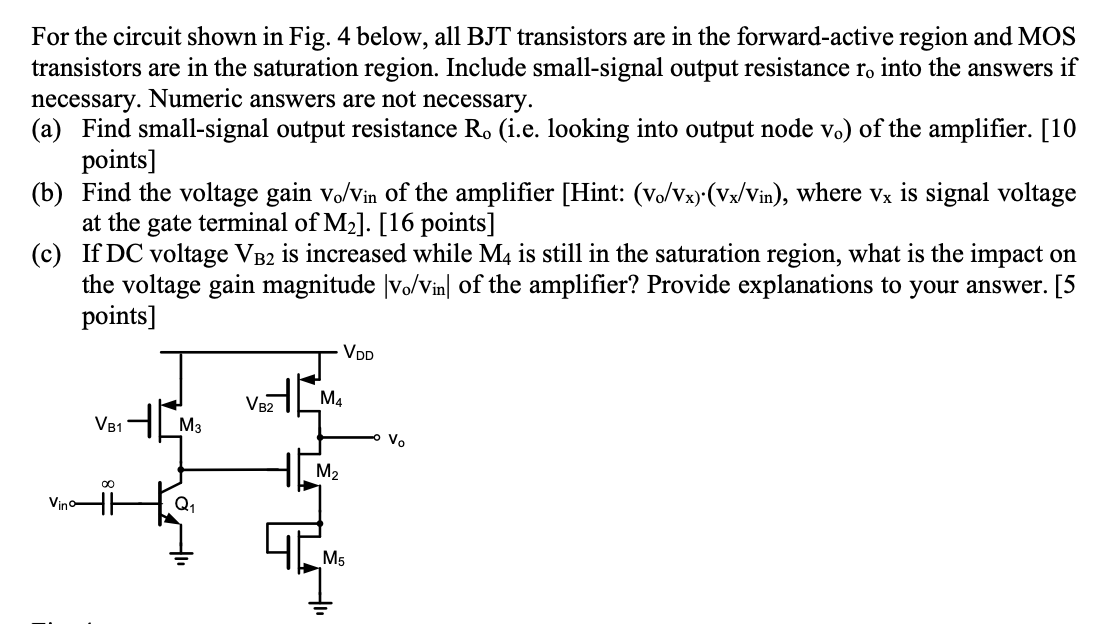

For the circuit shown in Fig. 4 below, all BJT transistors are in the forward-active region and MOS transistors are in the saturation region. Include small-signal output resistance ro into the answers if necessary. Numeric answers are not necessary. (a) Find small-signal output resistance Ro (i. e. looking into output node vo ) of the amplifier. [10 points] (b) Find the voltage gain vo/vin of the amplifier [Hint: (vo/vx)⋅(vx/vin ), where vx is signal voltage at the gate terminal of M2]. [16 points] (c) If DC voltage VB2 is increased while M4 is still in the saturation region, what is the impact on the voltage gain magnitude |vo/vin | of the amplifier? Provide explanations to your answer. [5 points]
