In CMOS NAND gate circuit shown below, what will be the size of NMOS transistors in the NAND gate when reference inverter sizes are given as shown in the figure. 3/1 3.2/1 1.6/1 8/1 4/1

In CMOS NAND gate circuit shown below, what will be the size of NMOS transistors in the NAND gate when reference inverter sizes are given as shown in the figure. 3/1 3.2/1 1.6/1 8/1 4/1

Image text

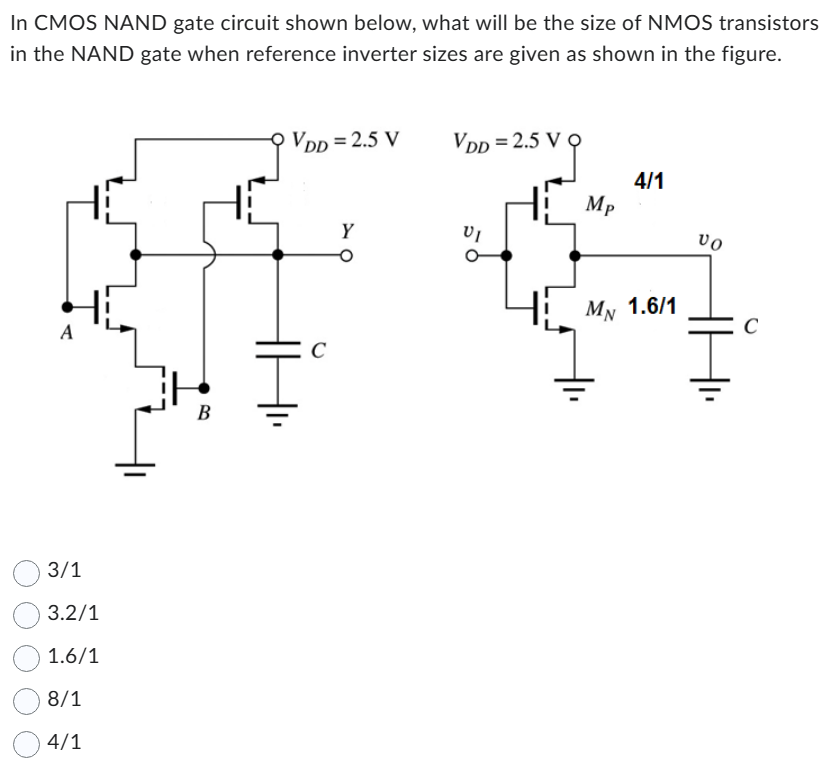

In CMOS NAND gate circuit shown below, what will be the size of NMOS transistors in the NAND gate when reference inverter sizes are given as shown in the figure.
3 / 1
3.2 / 1
1.6 / 1
8/1
4 / 1
