In Figure 5, RI = 200 Ω, RS = 70 kΩ, RL = 200 kΩ, RD = 50 kΩ and VDD = VSS = 15 V. Kp = 200 μA/V2, VTP = −1 V and λ = 0.02 V−1. Calculate the Q-point of this amplifier VSD = V, ID = mA. Figure 5. VSD = V ID = mA

In Figure 5, RI = 200 Ω, RS = 70 kΩ, RL = 200 kΩ, RD = 50 kΩ and VDD = VSS = 15 V. Kp = 200 μA/V2, VTP = −1 V and λ = 0.02 V−1. Calculate the Q-point of this amplifier VSD = V, ID = mA. Figure 5. VSD = V ID = mA

Image text
In Figure 5 , R I = 200 Ω , R S = 70 k Ω , R L = 200 k Ω , R D = 50 k Ω and V D D = V S S = 15 V . K p = 200 μ A / V 2 , V T P = − 1 V and λ = 0.02 V − 1 . Calculate the Q-point of this amplifier V S D = V , I D = m A .
Figure 5.
V S D = ◻ V I D = ◻ m A
v m A

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

Given R1 = 900 kΩ, R2 = 450 kΩ, RF = 5 kΩ, RS = 18 kΩ, RD = 33 kΩ, R3 = 47 kΩ, VDD = 10 V, VTP = −1 V, Kp = 75 μA/V2, λ = 0 for DC and λ = 0.01 V−1 for AC, for the parameters of the amplifier below: a) Draw the DC equivalent circuit and calculate the Q-point. b) Draw the AC equivalent circuit with the small signal model for the transistor. c) Calculate the voltage gain, Av. Neglect r0. d) Draw the circuit to find the amplifier input resistance ( Rin). e) Calculate Rin. f) Draw the circuit to find the amplifier output resistance (Rout). Do not neglect r0. g) Calculate Rout.
Solution
0 0

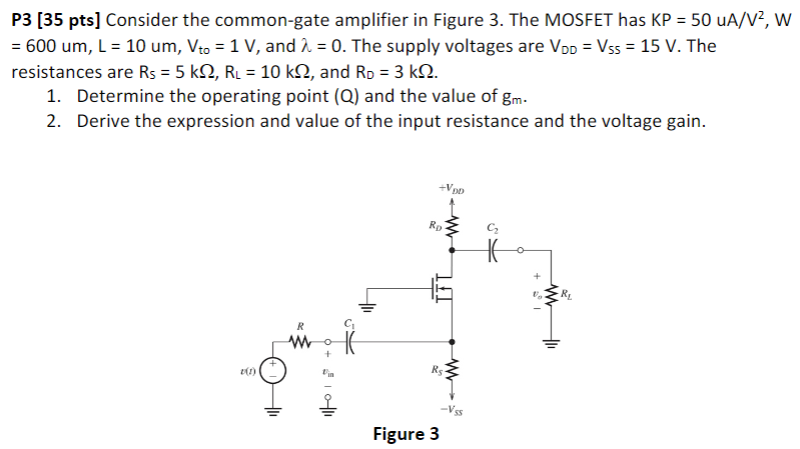

P3 [35 pts] Consider the common-gate amplifier in Figure 3. The MOSFET has KP = 50 uA/V2, W = 600 um, L = 10 um, Vto = 1 V, and λ = 0. The supply voltages are VDD = VSS = 15 V. The resistances are RS = 5 kΩ, RL = 10 kΩ, and RD = 3 kΩ. Determine the operating point (Q) and the value of gm. Derive the expression and value of the input resistance and the voltage gain. Figure 3
