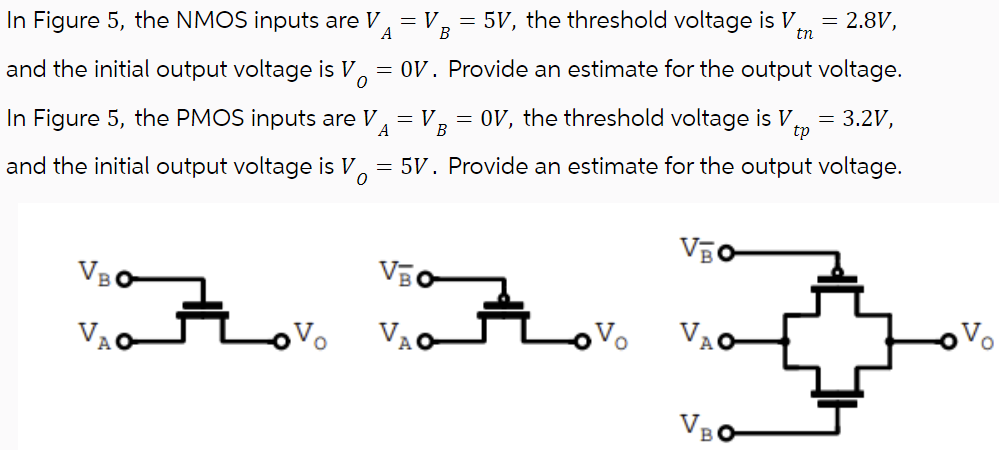

In Figure 5, the NMOS inputs are VA = VB = 5 V, the threshold voltage is Vtn = 2.8 V, and the initial output voltage is VO = 0 V. Provide an estimate for the output voltage. In Figure 5, the PMOS inputs are VA = VB = 0 V, the threshold voltage is Vtp = 3.2 V, and the initial output voltage is VO = 5 V. Provide an estimate for the output voltage.

In Figure 5, the NMOS inputs are VA = VB = 5 V, the threshold voltage is Vtn = 2.8 V, and the initial output voltage is VO = 0 V. Provide an estimate for the output voltage. In Figure 5, the PMOS inputs are VA = VB = 0 V, the threshold voltage is Vtp = 3.2 V, and the initial output voltage is VO = 5 V. Provide an estimate for the output voltage.

Image text
In Figure 5, the NMOS inputs are V A = V B = 5 V , the threshold voltage is V tn = 2.8 V , and the initial output voltage is V O = 0 V . Provide an estimate for the output voltage. In Figure 5, the PMOS inputs are V A = V B = 0 V , the threshold voltage is V t p = 3.2 V , and the initial output voltage is V O = 5 V . Provide an estimate for the output voltage.

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

Dynamic CMOS Circuits (a) During precharge (Clk=0), All inputs are logic 0 for the following Dynamic 3NAND. During evaluation (Clk=1), A is activated (0 → 1). Given VDD = 1.5 V, Vtn = 0.5 V, CL = 150 fF, C1 = 25 fF, and C2 = 50 fF, what is the final output voltage? (b) Calculate C1 of the following circuit so that the final voltage is determined by A input. CL = 175 fF, VDD = 1.5 V, and Vtn = 0.5 V. Assume that all inputs are logic 0 during the precharge. (c) i) Write the Boolean expression for OUT of the following circuit. ii) VDD = 2.0 V and Vtn = 0.5 V. During precharge (Clk = 0), All inputs are logic 0. During evaluation (C∣k = 1), A and B are activated (0 → 1). What is the final voltage when the evaluation mode settles?
Solution
0 0

The NMOS and PMOS transistors have the following characteristics. The channel length is 350 nanometers. For NMOS: tox = 50 nm, Vtn = 0.25 V, un = 560 cm2/vsec, W = 700 nm, L = 350 nm For PMOS: tox = 50 nm, Vtp = -0.35 V, up = 240 cm2 /vsec, W = 700 nm, L = 350 nm Compute the resistance Rp for PMOS if the power supply voltage (Vdd) is 3.3 volts and the threshold voltage is 0.35 volts. Use the multiplying adjustment factor as 2.5. Please choose one of the following. You must indicate your answer. No partial credit is given for your work. (a) 16.98M Ohms, (b)1870.24 Ohms, (c) 25.55K Ohms, (d) 72.88 Ohms, (e) None
Solution
0 0

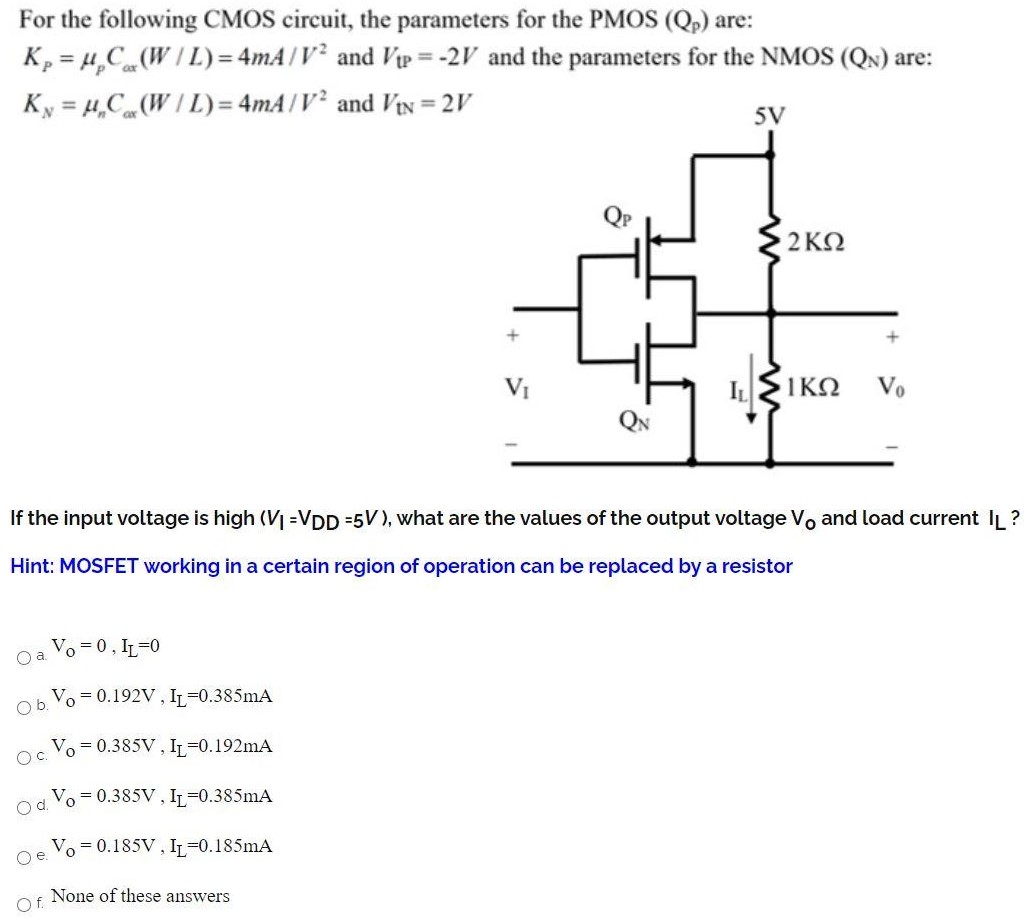

For the following CMOS circuit, the parameters for the PMOS(Qp) are: KP = μpCox(W/L) = 4 mA/V2 and VtP = −2 V and the parameters for the NMOS (QN) are: KN = μnCox(W/L) = 4 mA/V2 and VtN = 2 V If the input voltage is high (VI = VDD = 5 V), what are the values of the output voltage V0 and load current IL ? Hint: MOSFET working in a certain region of operation can be replaced by a resistor a. VO = 0, IL = 0 b. VO = 0.192 V, IL = 0.385 mA c. VO = 0.385 V, IL = 0.192 mA d. VO = 0.385 V, IL = 0.385 mA e. VO = 0.185 V, IL = 0.185 mA f. None of these answers
